Floor Plan Display with Overhead

Szabolcs Miko
Graphisoft
Graphisoft

ARCHICAD construction elements on a floor plan usually can have 3 different displays.

  • projection
  • projection with overhead
  • cut only

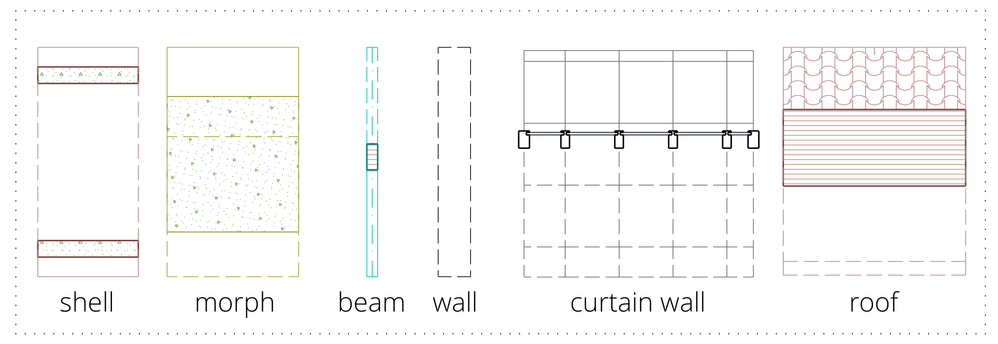

Using Projection with overhead is a similar look for different element types:


There are a few exceptions though, having additional floor plan displays:

  • the Wall, which has a symbolic cut view
  • the Curtain Wall, which has symbolichybrid and projected projection modes
  • the Stair and Railing Tool which have floor plan symbol layouts
