ArchiCAD Labels to DWG

Ahmed_K
Advisor

Hi,

When i export a plan to autocad, all labels that uses GDL are not exported correctly , the text alignement is wrong,

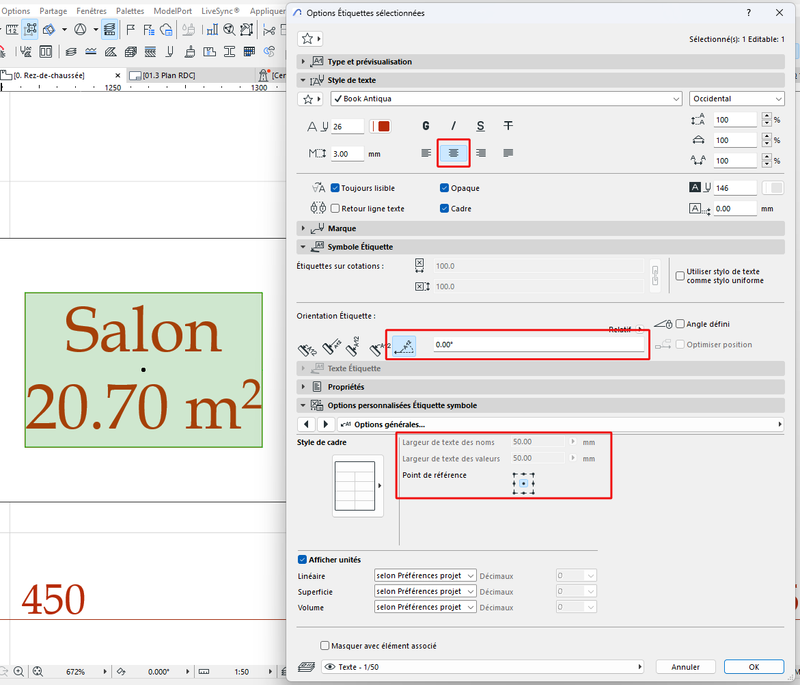

Here is the Zone  label , and it's settings






In autocad, it looks like that :




 it's imported  as a Block,

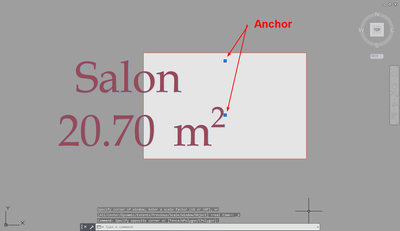

When i open the block , the text anchor points are in the middle , where they should be, and the text alignement parameter is set correctly to " Center" :

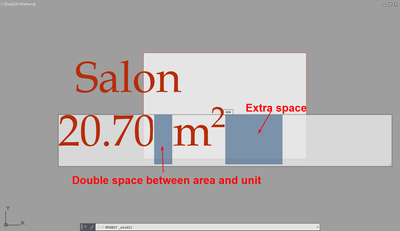

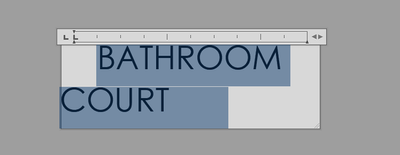

i noticed there is some extra "space caracters in the text field , :

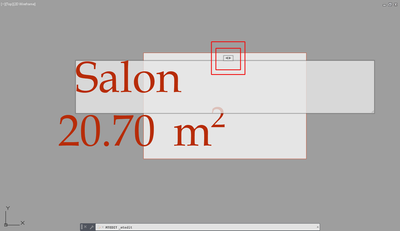

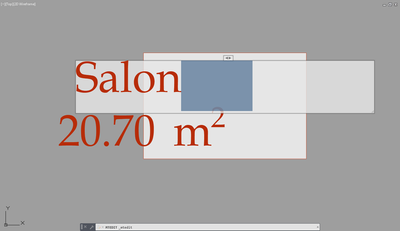

When i delete that extra spaces, it looks correct,




Does someone knows this issue and how to fix it ??



Operating system used: Windows 11

AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 27
Windows 11 professional
https://www.behance.net/Nuance-Architects
1 REPLY 1
Ahmed_K
Advisor

still didn't find a solution, any suggestions please ?
