Easy gdl mesh

[rudl]

Easy mesh:

! No more VERT EDGE PGON ! (because its a bit of a pain)

just a vertex array

and a face array with vert indices

Face direction should be automatic with the order of vertices, Edges are automatic

Needs more testing, may add some more features.

! ------------------------------------------------------------
! Geometry stored in vert and pgon arrays only Example: Pyramid
! ------------------------------------------------------------
! Important order of vertices in Pgon determine Normal / Face direction

! --- SETUP VARIABLES ---

dim points_s[][3]	!points start
dim edges_pi[][2]	!edges point index
dim faces_pi[][]	!faces point index
dim ppf[]			!points per face

! --- POPULATE ---

points_s[1][1] = -1 : points_s[1][2] = -1 : points_s[1][3] = 0	! base
points_s[2][1] =  1 : points_s[2][2] = -1 : points_s[2][3] = 0
points_s[3][1] =  1 : points_s[3][2] =  1 : points_s[3][3] = 0
points_s[4][1] = -1 : points_s[4][2] =  1 : points_s[4][3] = 0
points_s[5][1] =  0 : points_s[5][2] =  0 : points_s[5][3] = 2  	! apex

ppf[1] = 4 : faces_pi[1][1] = 1 : faces_pi[1][2] = 4 : faces_pi[1][3] = 3 : faces_pi[1][4] = 2 	! base (quad)
ppf[2] = 3 : faces_pi[2][1] = 1 : faces_pi[2][2] = 2 : faces_pi[2][3] = 5
ppf[3] = 3 : faces_pi[3][1] = 2 : faces_pi[3][2] = 3 : faces_pi[3][3] = 5
ppf[4] = 3 : faces_pi[4][1] = 3 : faces_pi[4][2] = 4 : faces_pi[4][3] = 5
ppf[5] = 3 : faces_pi[5][1] = 4 : faces_pi[5][2] = 1 : faces_pi[5][3] = 5

nPoints = 5 		! this should be known does not make sense to calc! optional with VARDIM1
nFaces = 5 		! this should be known does not make sense to calc! optional with VARDIM1

! ------------------------------------------------------------
! DO THE MAGIC THING:
! ------------------------------------------------------------

! --- Point index for edges --- edges_pi[][2] for use in EDGE

x=0	! the counter is important!
FOR i=1 TO nFaces
	FOR j=1 TO ppf[i]
		x = x+1
		IF j < ppf[i] THEN
			edges_pi[x][1]=faces_pi[i][j]
			edges_pi[x][2]=faces_pi[i][j+1]
		ELSE
			edges_pi[x][1]=faces_pi[i][j] !connect last point of face with first
			edges_pi[x][2]=faces_pi[i][1]
		ENDIF
	NEXT j
NEXT i

lengthedge = VARDIM1 (edges_pi) ! total edges with duplicates should be nEDGE

! --- Create edge index --- edges[] for use in PGON
! There is some kind of "sorting" through to make the double edge indices negative
! could be optimised for larger meshes though

DIM edges[]
negcount = 0
FOR i = 1 TO lengthedge
	u = edges_pi[i][1]
	v = edges_pi[i][2]
	edges[i]=i-negcount
		FOR j = 1 To i
			IF edges_pi[j][1]=v AND edges_pi[j][2] = u THEN
				edges[i]= edges[j]*(-1)
				negcount = negcount+1
			ENDIF
		NEXT J
NEXT i

! ------------------------------------------------------------
! BUILDING THE MESH:
! ------------------------------------------------------------

!PUT EVERYTHING TOGETHER

BASE
FOR i = 1 TO nPoints
	VERT points_s[i][1],points_s[i][2],points_s[i][3]
NEXT i

FOR i = 1 TO lengthedge
	IF edges[i]>=1 THEN
		EDGE edges_pi[i][1], edges_pi[i][2],-1,-1,0
	ENDIF
NEXT i

PUT edges
FOR i = 1 TO nFaces
	PGON ppf[i],0,0,GET(ppf[i])
NEXT i

BODY -1

! ------------------------------------------------------------
! DEBUG:
! ------------------------------------------------------------

!PRINT edges_pi
!PRINT edges

[rudl]

That is definitely on my todo list.
Main focus is still making it easier to script meshes within gdl.

[rudl]

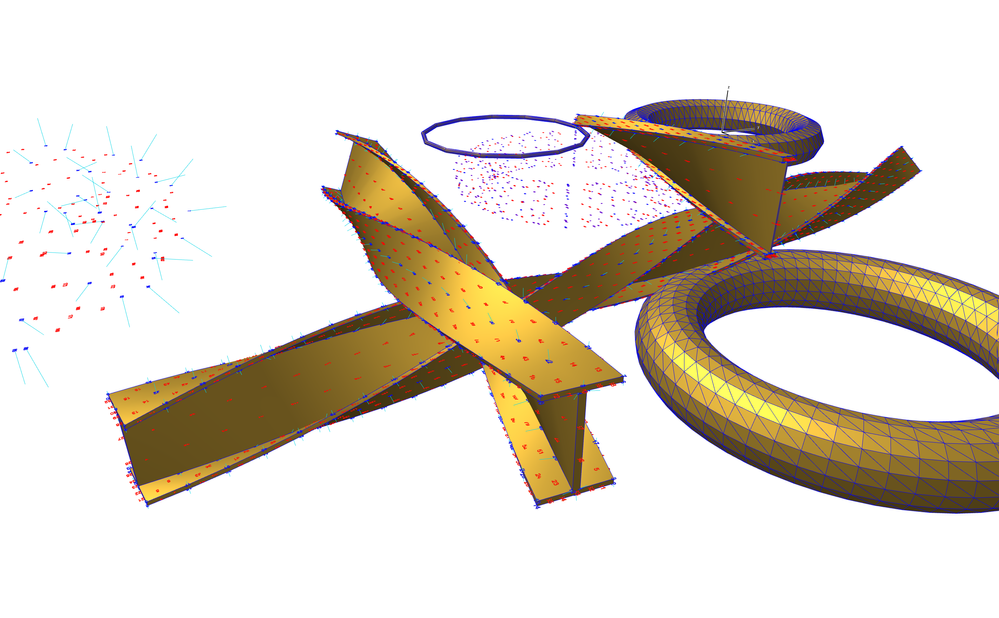

Parametric torus and bended beams.

Torus example:

theta = 360/u
FOR i = 2 TO u
	vec_temp[1]=po_s[i-1]
	GOSUB "V_ArotX":
	po_s[i] = vec_temp[3]
NEXT i
FOR i =1 TO u
	po_s[i][2]=	po_s[i][2]+rv
NEXT i
theta = 360/v
FOR i = 1 TO v-1
	FOR j = 1 TO u
		vec_temp[1]=po_s[(i-1)*u+j]
		GOSUB "V_ArotZ":
		po_s[i*u+j] = vec_temp[3]
	NEXT j
NEXT i

c =0
FOR i = 1 TO v
	FOR j = 1 TO u
		IF i = v THEN
		IF j = u THEN
		c = c +1
		f_pi[c][1]=(i-1)*u+j
		f_pi[c][2]= j
		f_pi[c][3]=(i-2)*u+j+1
		c = c +1
		f_pi[c][1]= j
		f_pi[c][2]= 1
		f_pi[c][3]=(i-2)*u+j+1
		ELSE
		c = c +1
		f_pi[c][1]=(i-1)*u+j
		f_pi[c][2]= j
		f_pi[c][3]=(i-1)*u+j+1
		c = c +1
		f_pi[c][1]= j
		f_pi[c][2]= j+1
		f_pi[c][3]= (i-1)*u+j+1
	 	ENDIF

		ELSE
		IF j = u THEN
		c = c +1
		f_pi[c][1]=(i-1)*u+j
		f_pi[c][2]=(i)*u+j
		f_pi[c][3]=(i-2)*u+j+1
		c = c +1
		f_pi[c][1]=(i)*u+j
		f_pi[c][2]=(i-1)*u+j+1
		f_pi[c][3]=(i-2)*u+j+1
		ELSE
		c = c +1
		f_pi[c][1]=(i-1)*u+j
		f_pi[c][2]=(i)*u+j
		f_pi[c][3]=(i-1)*u+j+1
		c = c +1
		f_pi[c][1]= (i)*u+j
		f_pi[c][2]= (i)*u+j+1
		f_pi[c][3]= (i-1)*u+j+1
	 	ENDIF
		ENDIF
	NEXT j
NEXT i

[rudl]

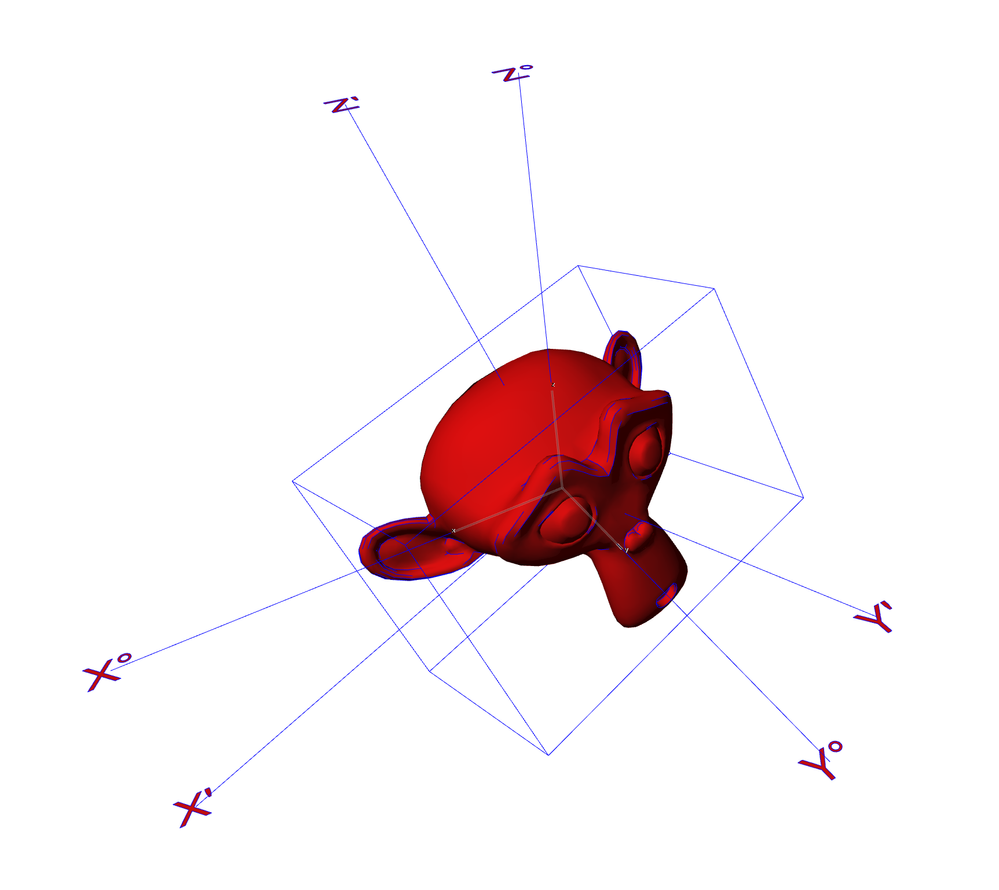

*) Monkey read from text-file
*) Arbitary rotation around an axis rodriques transformation
*) Display Helper Axes
