How to make door-window

Anonymous
Not applicable

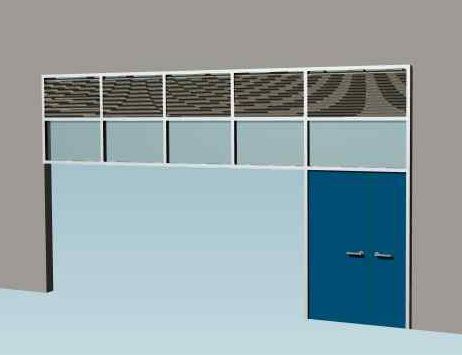

I make door+window using floor plan & save as door object.
when i applied to the wall, the wall below the window disappear ?
how toavoid this ?

6 REPLIES 6
Aussie John
Newcomer
By default, the door and window tool creates a rectangle hole based on the overall A and B values. You need to include the wallhole command to describe the shape of your opening.
Cheers John
John Hyland : ARINA : www.arina.biz
User ver 4 to 12 - Jumped to v22 - so many options and settings!!!
OSX 10.15.6 [Catalina] : Archicad 22 : 15" MacBook Pro 2019
[/size]
David Maudlin
Virtuoso
badakcentaur:

You will need to add a slab with an ID of Wallhole for the shape of the opening. For more information with images, go to Help > ArchiCAD Help, when your browser opens click on the "Search" tab, and input "custom window" in the search box, in the results list "Saving Custom Shape Doors and Windows from the Project File" will lead to detailed information.

You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.

David

1000
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
Aussie John
Newcomer
Yes David likely to be correct as I misread and thought you were scripting the door.
Cheers John
John Hyland : ARINA : www.arina.biz
User ver 4 to 12 - Jumped to v22 - so many options and settings!!!
OSX 10.15.6 [Catalina] : Archicad 22 : 15" MacBook Pro 2019
[/size]
vistasp
Advisor
David wrote:
1000
Ah, a senior moment. 😉

Congratulations!
= v i s t a s p =
bT Square Peg
https://archicadstuff.blogspot.com
https://www.btsquarepeg.com
| AC 9-27 INT | Win11 | Ryzen 5700 | 32 GB | RTX 3050 |
ztaskai
Graphisoft Alumni
Graphisoft Alumni
I recommend you to look into the Creating GDL Objects ITG published by Graphisoft. It was created for AC11 but it contains basic stuff which remains true for a long time. There's a whole chapter about "Auto saving non-rectangular windows" in it.

Regs,
Zsolt
Zsolt Táskai
ArchiCAD Development - GDL Team
AC13, AC14 and upwards...
David Maudlin
Virtuoso
vistasp wrote:
David wrote:
1000
Ah, a senior moment. 😉

Congratulations!


Not my first one (or the last).

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14
