Can MEP ducting be drawn vertically from a horizontal run?

Too Long
Enthusiast

EDIT:

Yes, the height of the duct can be changed whilst drawing it using the arrows in the palette under Construction Method



Can MEP ducting be drawn vertically from a horizontal run so that AC ducting can run under and over beams and other roof members and obstacles?

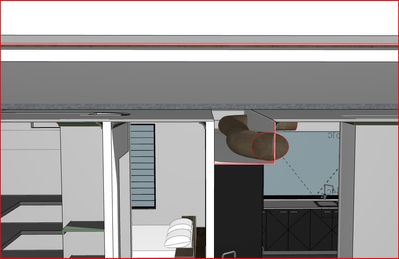

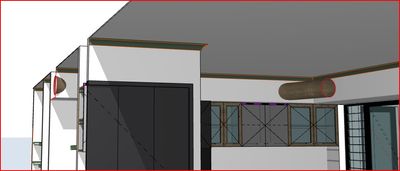

The below images show the ducting running into a bulkhead, under a beam which it is then required to run into the roof space but as I dont know how to draw ducting vertically it exits through the face of the bulkhead.



Screenshot 2023-07-17 180444.jpg





 

Screenshot 2023-07-17 180522.jpg





 

Screenshot 2023-07-17 180543.jpg

 


AC26 AUS Full
2 REPLIES 2
Too Long
Enthusiast

edited


AC26 AUS Full

Same question.

I started learning ArchiCAD at age 50....bear with me,
AC28
MacBook Pro M1 Max.
Sequoia 15.4
