Creating a "cone" style roof

I am currently designing a new building to which I would like to model a roof that is half a cone. I created the following roof way back when (AC21 or 22) using the Roof Tool and was easy. Fill in al of the parameters in the settings box and then create the layout (multi-plane setting) and voila a nice a nice Tiki style roof.

indoor roof floor plan.jpgindoor roof.jpg

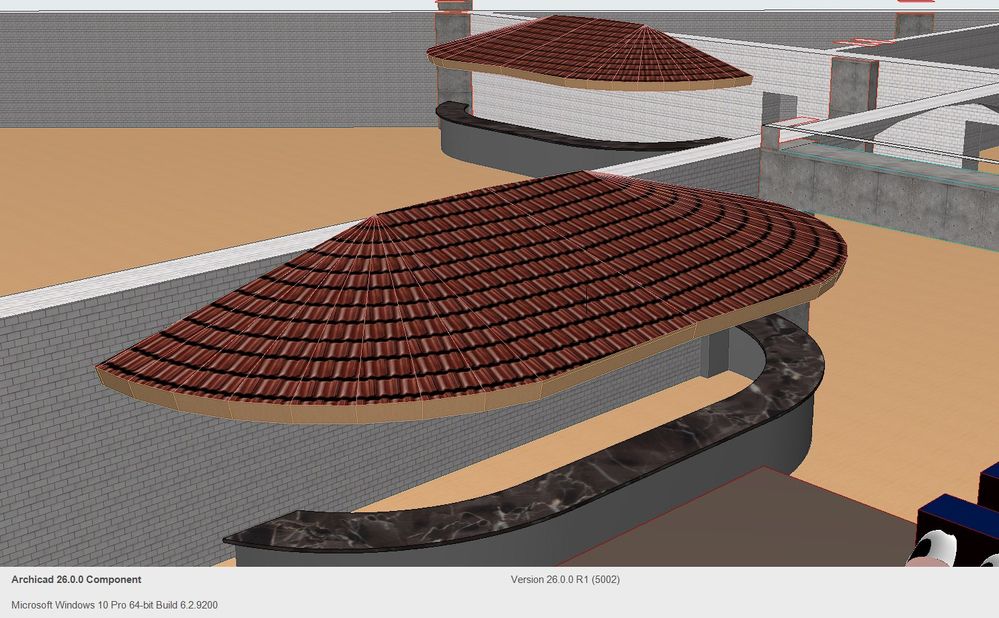

Today I am trying to essential create the same roof minus the "flat" section in the middle so that it would be half a cone with the point on the top. The following pictures show what I get today using AC26.

outdoor roof floor plan.jpgoutdoor roof.jpg

As can be seen, the roof tool sort of makes what I want but I can't seem to eliminate the slope on the back side of the roof. I tried the single plane style but it does not allow curved shapes. Using the multi-plane setting I cannot get the plane on the backside to be vertical. In addition, if I try to create an eave overhang on the curved section it automatically places the same overhang on the back edge (undesirable). I have tried using the Help files without any success. I know that I could create a cone with the "morph" tool and then cut it in half but that wouldn't provide any BIM data. I can also create a proper roof with rafters, sheathing, etc. with my 3D MCAD software but again no BIM data. Could some one provide me with the necessary instructions on how to create a circular roof that looks like a half of a cone? Thanks in advance for any assistance.



Wile E. Coyote not so genius at the moment

1 ACCEPTED SOLUTION

Accepted Solutions
Solution

No need to split into separate roof planes.



Change the rear edge into a gable.

Move the pivot line in and reduce the eave overhang.




You can also do it for a dome end (semi-circle).

You will get slightly different results depending on the shape - extended semi-circle or exact semi-circle.

But all of the ridge nodes can be moved and the edges adjusted.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

8 REPLIES 8
DGSketcher
Legend

Draw a long rectangle polyline with the short side equal to the required diameter of the cone. Pick the mid point of the short side and drag out to the required radius to form a semi-circle at the end. Set up your multi-plane roof to the required pitch and apply zero overhang. Set curve resolution. Now magic wand the roof to the polyline shape. Use the context menu to "Split into Single-plane Roofs". Delete the unwanted roofs and if necessary on plan adjust the last roof segments of the semi circle to the arc centre point.




Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
mthd
Ace

Your sand dune roof that you created above could come in quite handy. I have seen a couple of examples on the TV series Grand Designs.



AC8.1 - AC28 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Sequoia
Lingwisyer
Guru

There is no need to "Split into Single-plane Roofs". With your "dune" roof, just select the reference line of the straight section, and under the Custom Plane Settings set it to Gable. If need be, remove and unwanted overhang using the Offset option.




Ling.



AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660




Apple M1 Max 32 GB Ventura
AC27
Solution

No need to split into separate roof planes.



Change the rear edge into a gable.

Move the pivot line in and reduce the eave overhang.




You can also do it for a dome end (semi-circle).

You will get slightly different results depending on the shape - extended semi-circle or exact semi-circle.

But all of the ridge nodes can be moved and the edges adjusted.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thanks to everyone who responded. I now have a method to create what  I wanted.



Regards

All of these modeling solutions are based on making something that visually approximates that roof - but in segments, with not smooth curves.

As with everything in ArchiCAD, how you model it depends on what you need it for.

If you are modeling for the sake of generating all the drawings, details, and Interactive Schedules you may want, and that are actually necessary to construct the roof, then you will want to model the Roof differently.

And to model that Roof you will need to do it in a way that is relative to the way it will be constructed, per the materials that will be used, and how they will be applied in order to achieve the smooth curves you will want.

The Roof Tool does not generate exactly what you would need for that.

But perhaps that is all you need to do - just model an approximation of the roof?
