How to modeling rectangular ducts with specific inner bend radius or reduction length in the new MEP

[jiratm]

Hi everyone,

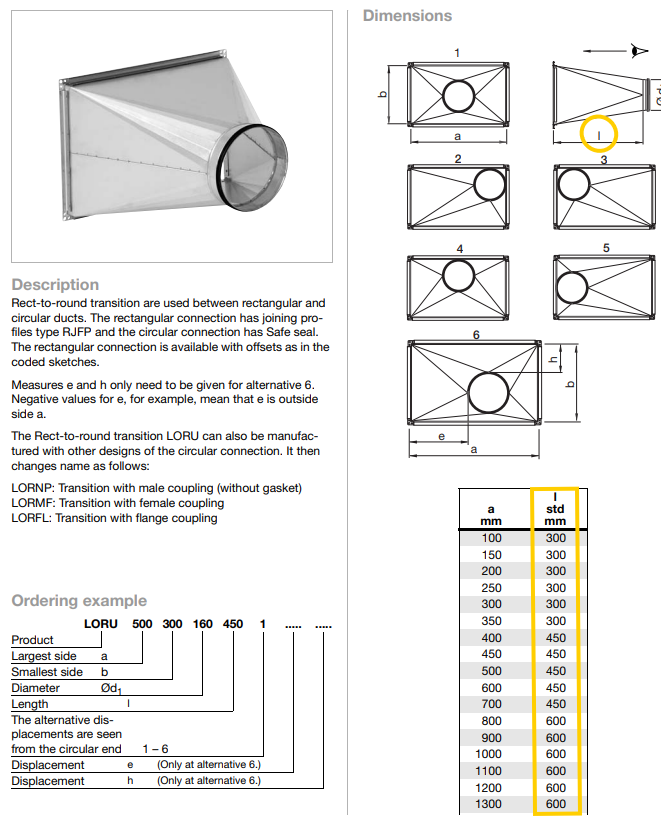

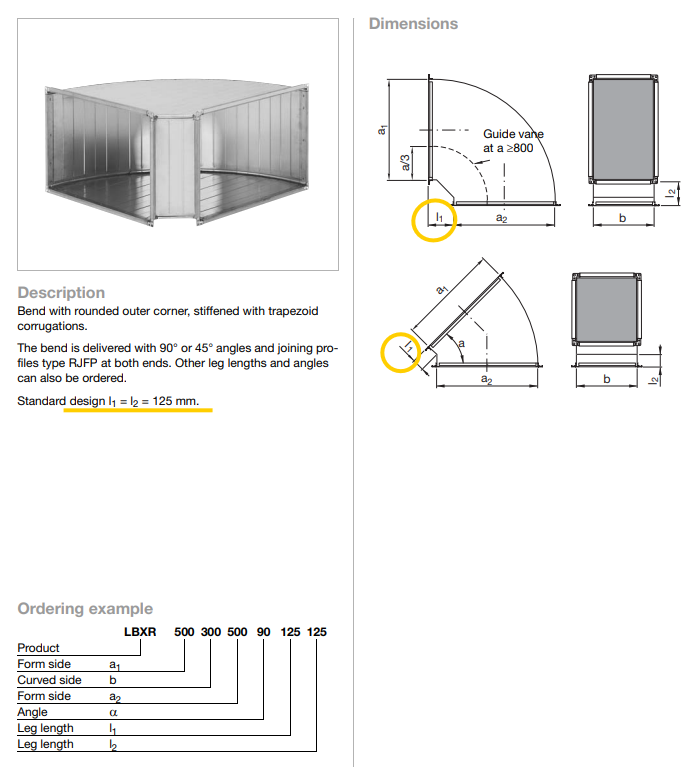

I’m trying to model rectangular HVAC ductwork using the new MEP Modeler with specific dimensions (see attached file).
My main question is: how can I define the inner bend radius (or the inner offset distance) of an elbow? How to a reduction specified by length, not by edge angle?

Additionally, I’d like to know if it’s possible to create asymmetric branches and reductions, or bends with changing cross-section using the new MEP tools.

And one more question — is it still possible to model a route element by element as before, instead of using only the automatic routing method?

Thanks in advance for any tips or workflow suggestions!

Operating system used: Windows

[jiratm]

Does the new MEP Modeler actually respect the rectangular duct route presets correctly?
No matter what values I set in the Route Preferences, the elbows and branches of rectangular ducts are generated with different dimensions than expected. Am I doing something wrong?
Can someone recommend the correct workflow for this?

[jiratm]

How can I correctly model a SPIRO duct end termination with an integrated grille (as a single element/product)?

https://www.ventilace.eu/en/take-off-cap-d192/
https://www.ventishop.cz/vks-355-vyfukovy-kus/

[jiratm]

Is it really true that no one is solving a similar problem?
