Intersect Two Elements
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2 weeks ago
It would be very interesting if you could choose which side of the element will act on the other, and have it reflected visually. At this point it is not clear which side interacts or is not the desired one.
Operating system used: Windows
- Labels:
-
Input Aids

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2 weeks ago
- last edited
Monday
by
Laszlo Nagy
Can you show a screen shot so we can understand your question better ?
Possibly the Wall and Beam Reference Lines ?
ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
a week ago
- last edited
Monday
by
Laszlo Nagy
Thank you Steve
but the intersect function works with the longest side, and you can't choose which one. I think AutoCAD shows visualment which of the two options and you can choose. In Archicad, it should work the same to give more possibilities.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
a week ago
- last edited
Monday
by
Laszlo Nagy
you can locate the reference line to the left, right, or center - if that is what you talking about.
Can you show the intersect your having trouble with ? Or am I not understanding your issue ?
ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
a week ago

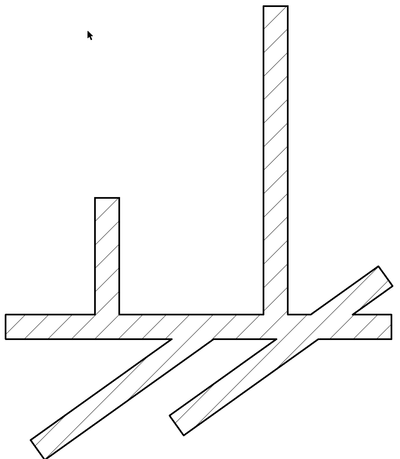

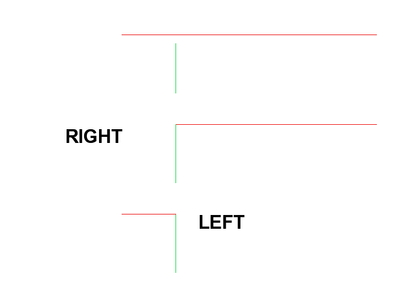

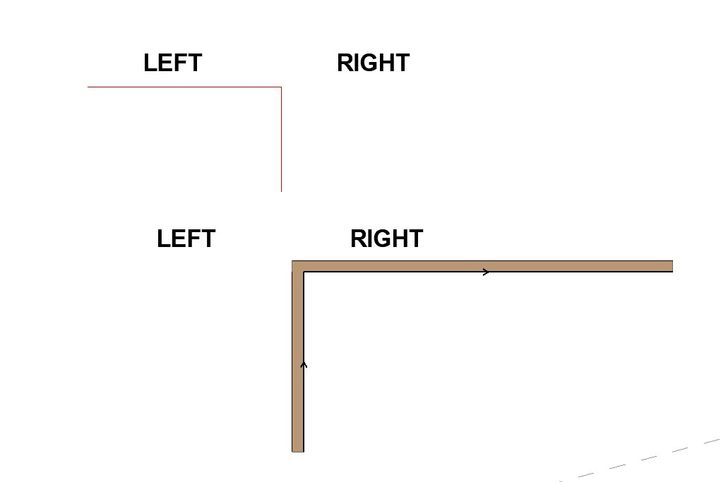

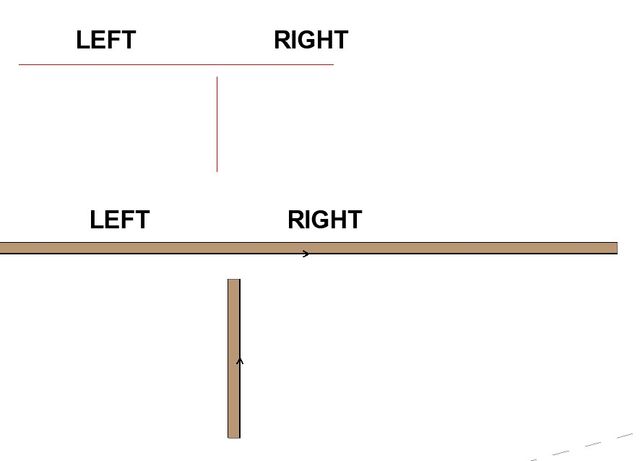

I don't think I have explained myself well. When you use the function āintersect two elementsā, Lines/Polylines, Arcs, Walls, and Beams, ... you can't choose on which side it will act. It always acts on the longer side. And the interesting thing would be if you could choose if it is on one side or the other (right or left). AutoCAD does it. And it saves a lot of time.
Thanks
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Monday
Use Adjust then Trim instead. ACs Intersect is a single action, unlike aCADs 3 actions, so there is no way to define the side. Adjust and Trim come to 4 actions, and the default shortcut for Adjust is not the nicest...
Ling.
AC22-28 AUS 3110 | Help Those Help You - Add a Signature |
Self-taught, bend it till it breaks | Creating a Thread |
Win11 | i9 10850K | 64GB | RX6600 | Win11 | R5 2600 | 16GB | GTX1660 |
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Monday
- last edited
Monday
by
Laszlo Nagy
OK. I know what you mean. It will take (3) clicks no matter how you choose to make the intersect, toward the long or short length in AutoCAD or in Archicad. I don't think it would be too difficult for product developers to add some code that would provide control of the intersect direction based on which end of the elements is selected for intersection. That would make right, left, up, or down intersect irrelevant, and better than how AutoCAD does it. ?
The default that always intersects with the long side could remain.
The idea of a function that responds to the order of selection is used in at least one other Archicad function already. For example, when using the Element ID Manager to re-order all the IDs per the order of selection.
ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
Tuesday
Many times I will just manually extend (stretch) the short elements so they meet and if needed I will cut of any excess.
Hold SHIFT to constrain them in line as you stretch.
It is still only 3 or four mouse clicks and you don't have to find adjust or trim tools in the tool bars or menus or remember shortcuts.
Except CTRL for cut (or the equivalent in MAC OS).
Barry.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
