Modeling
About Archicad's design tools, element connections, modeling concepts, etc.
SOLVED!

Please tell me how to make a ramp like this.

LeeJaeYoung
Virtuoso


I can't make the connection part accurately. ^^

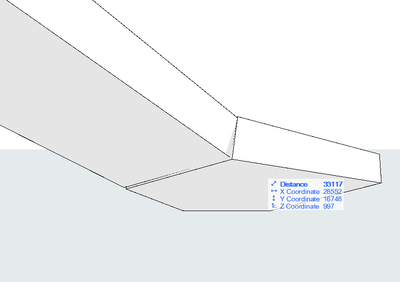

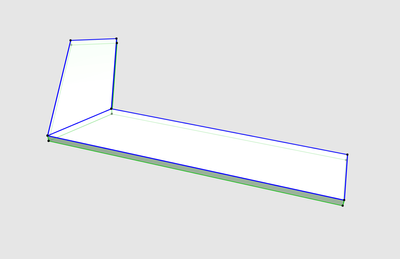

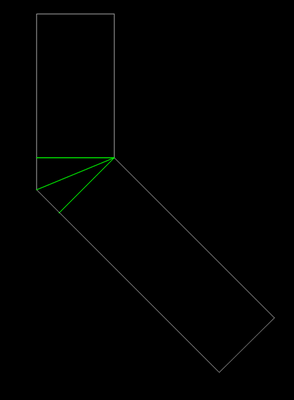

The problem is that it is difficult to process the green line part.

AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

It shouldn't be all that hard.

Flat slab for the corner landing and inclined beams or roofs for the ramps.


You could probably even play around with the stair tool and create the ramp.



https://community.graphisoft.com/t5/Modeling/Stair-Tool-Advanced-How-to-create-a-Ramp-using-the-Stai...



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

16 REPLIES 16
Tim Ball
Expert

A beam with complex profile at correct inclination might work

Tim Ball

AC26, iMac

User since V5


Is it possible for me not to do this?

AC27 on window 11
scottjm
Advisor

I would use a mesh.

Scott J. Moore | Fulton Trotter Architects | BIM Manager, Associate, Architect
Since AC13 | Current versions AC23.7000 & AC26.5002 | BIMCloud Basic | Python, GDL, VBA, PHP, SQL, CSS
Certified Graphisoft BIM Manger (2022)
Win 10, i9-9900K, 32GB, Quadro P2200, 500GB NVMe

Is the answer to make it a mesh or a morph?

Custom Ramp Modelling - YouTube





However, there are concerns about whether the thickness of the slab can be accurately determined.

AC27 on window 11

Try making it with roofs and use Intersect Single-plane Roofs.



If that doesn't solve it then you will need to place a flat transition where the roofs meet to turn the corner. That is the only way to eliminate the twist where the beams are meeting in your picture.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)



Thank you for answer.
It seems a little off. ^^



AC27 on window 11

Yes, either.

Another option is to use 2 Slabs.

Convert to Morph

select the vertical planes

move them up (or down) in 3D Window
















But I think that per IBC Code that corner needs to be flat and ADA compatible so all these suggestions are moot.



Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

DGSketcher
Legend

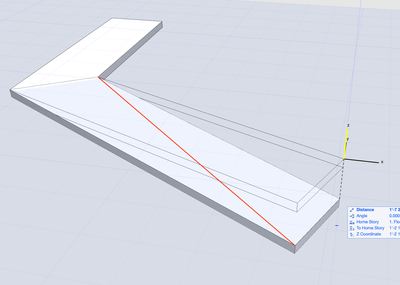

You should also note that in @Eduardo Rolon image, there is a new line in the ramp (red). This tells you that the 4 points forming the slab are no longer on a single plane and the top face needs to be formed by two triangles. This could be a problem for your finishes.


Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)
