Solid element operation and round surfaces!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2 weeks ago
- last edited
a week ago
by
Laszlo Nagy
Hi!

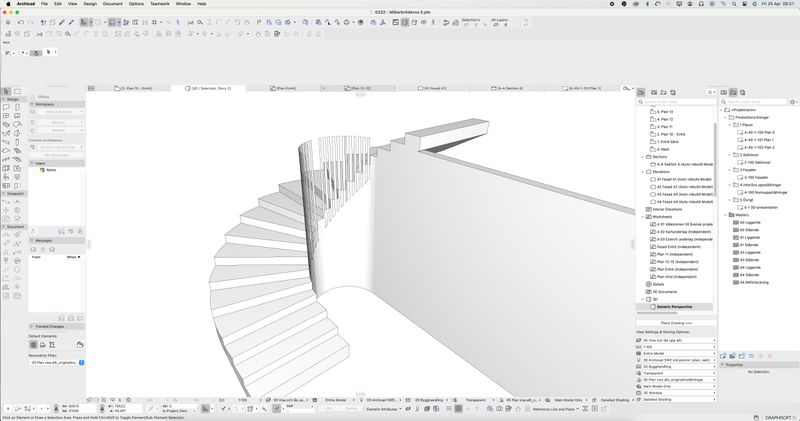

I have a problem that is a little bit annoying. When two different round surfaces interact, they don't match, and using a solid element operation doesn't work correctly. Is there any way to solve this problem?
Operating system used: Mac Apple Silicon
