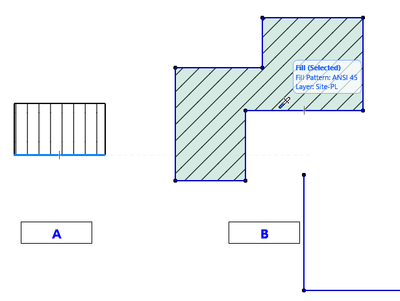

This is a question about changing FILL.

LeeJaeYoung
Virtuoso



1. Same FILL. It's just that the rotation is different.
However, even if you try to have the same rotation, it does not apply.
did i do something wrong?




2. You need to increase the size of the X-axis and then the size of the Y-axis.
Is there any way to increase the size of both at once?
3. The same applies when rotating. Can't they rotate all at once?



AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

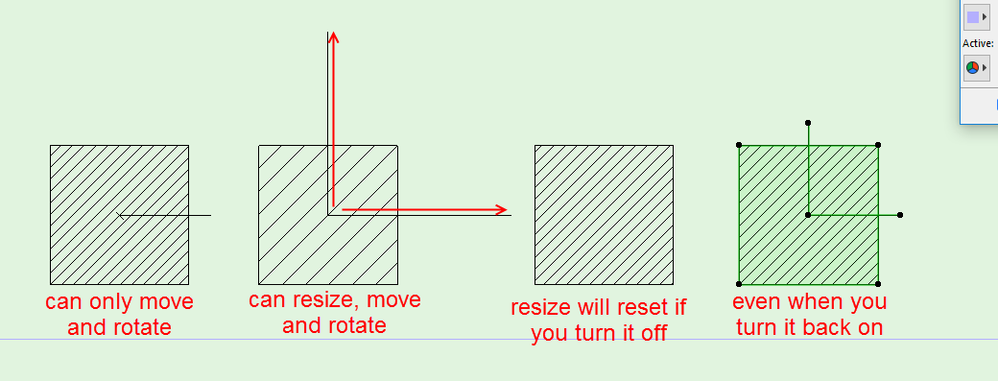

You can resize with those handles (you have to stretch both by the same amount if you want it proportional).



But if you change the construction method it will all reset.








So if you want different fill spacings, it is best to create multiple fills.

For example...






Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

4 REPLIES 4
Barry Kelly
Moderator

If you just need to move the fill origin or rotate it, then use the second construction method.








The 3rd button will rotate and distort the x an y axis of the fill - for fill with a 2 direction hatch pattern (i.e.diamond).

No need to use for a single diagonal hatch unless you want to distort the spacing.



And yes you have to adjust each one separately.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Can't even ask one question?



I resize.
I'll have to create a FILL type for each size later.

AC27 on window 11
Solution

You can resize with those handles (you have to stretch both by the same amount if you want it proportional).



But if you change the construction method it will all reset.








So if you want different fill spacings, it is best to create multiple fills.

For example...






Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

1. It is better to make different-sized pills.
2. Even if you inject, changes from the original do not apply.

inconvenient
1. I wish they added a way to input the angle.
2. I still don't know where to use each control and how often I use it.
3. If the reference point overlaps with the Boundary point, it is difficult to move
4. I hope that the changed content will be applied.

It's just a wish.

Thank you for today. ^^

AC27 on window 11
