Vertically and horizontally curved window

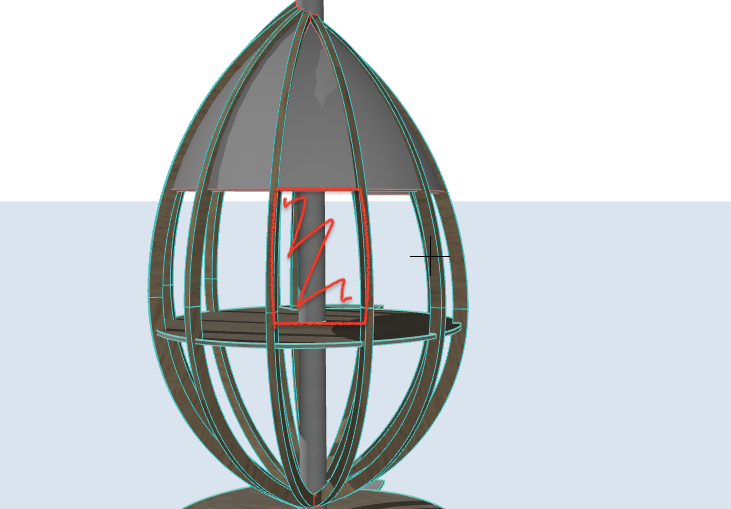

Hi all, I am wondering if there is a way for me to create a window between each of my beams that is curved both horizontally and vertically, or a way for me to even make a glass wall/ shell that is curved in both ways. As seen in the linked image, the red sketch is where I will need glass/ windows, around the entire cocoon shape. I have tried using the revolved shell tool to create these curved walls, but couldn't figure out how not to make the shape meet at one triangular point. I know that I can curve a wall horizontally and change the slant, but I need the vertical slant to be curved. Any help would be very much appreciated. 🙂

Screen Shot 2022-06-08 at 5.18.36 pm.pngScreen Shot 2022-06-08 at 5.18.50 pm.pngScreen Shot 2022-06-08 at 5.25.54 pm.png

Hello sdavis2,

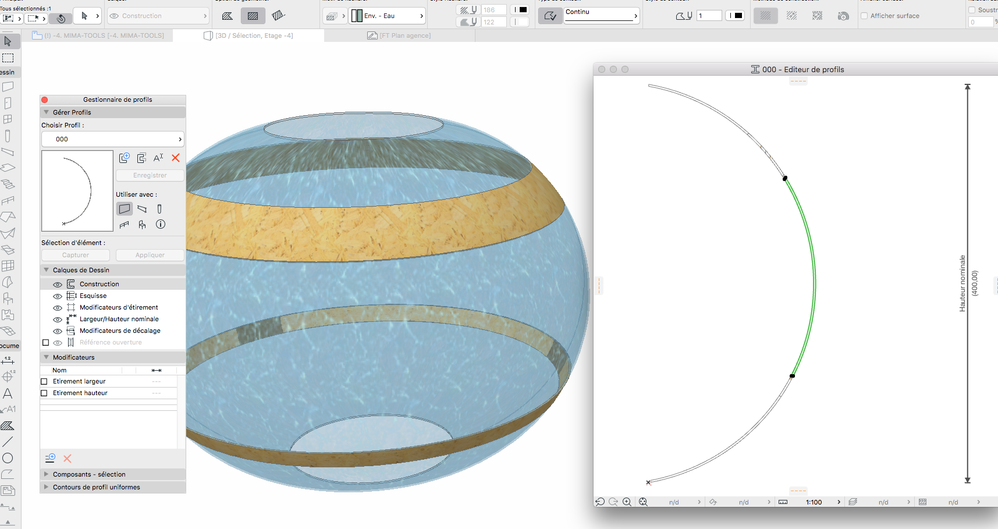

Did you try to create your own curved complex profil wall  ?


Capture d’écran 2022-06-08 à 13.03.04.png
Christophe - FRANCE
Archicad Designer and Teacher
Archicad 15 to 27 FRA FULL

OS 11.6 Big Sur - MacBook Pro 2017 - 16Go RAM
"Quality is never an accident ; it's always the result of an intelligent effort" John Ruskin

No I haven't but that sounds like a good idea, would you be able to please send the steps in order for me to achieve this?

Thanks very much



Then just create a complex profile wall that is that shape, with the thickness you want for the glass and a glass material (not like my image here.

Then place curved complex profile walls in plan.




Or do what ever you did to get the grey infill panels in your image.
