AC21 - IFC property preview

alemanda
Participant
I cannot see the IFC property preview.
Mapping is correct. Schedule is correct.
Only the value in the property table in the settings dialog is not shown. Value is always 0.00

Is it a bug?

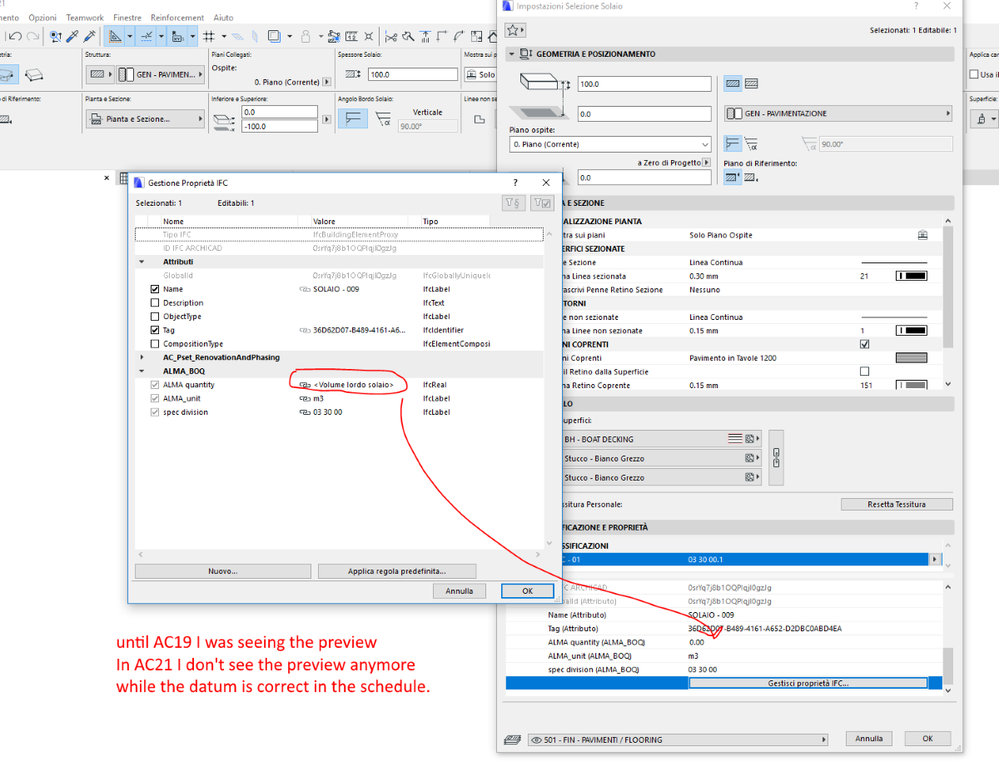

cattura archicad 15.png
AC 19 and AC21 latest hotfix
Win 10 Pro 64bit
Double XEON 14 CORES (tot 28 physical cores)
32GB RAM - SSD 256GB - Nvidia Quadro K620
Display DELL 25'' 2560x1440
www.almadw.it
5 REPLIES 5

Laszlo Nagy
Community Admin
Community Admin
This doesn't seem like a bug to me.
In the IFC Scheme Settings Dialog you defined the "ALMA quantity" IFC Property, and you set its type to "IfcReal". This means it is expecting a number.
So when you type some text as a default value, I think ARCHICAD will convert that text string value into an IfcReal value, which is zero.
This is why you see zero as the default linked value in the Settings Dialog.

Try to assign a real numeric value in the IFC Scheme Settings Dialog and see what it display in the Settings Dialog.

As another note: I can imagine things are being developed so their more strictly adhere to IFC specifications. Or maybe it was just an overlook of a small glitch in previous versions which allowed it to work the way it did previously.
....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC25
Loving Archicad since 1995

alemanda
Participant
Laszlo,
maybe I express bad what I meant.
The quantity is linked to the gross volume that's why I expect to see a number and actually this happened in AC19.
Now in AC21 it shows zero while the schedule of the same IFC propertiy of the same element is correct
AC 19 and AC21 latest hotfix
Win 10 Pro 64bit
Double XEON 14 CORES (tot 28 physical cores)
32GB RAM - SSD 256GB - Nvidia Quadro K620
Display DELL 25'' 2560x1440
www.almadw.it

Laszlo Nagy
Community Admin
Community Admin
Ah,OK, I understand that now: in the Settings Dialog you do not see the value you set, but in the Schedule you do see the correct value.
I have no idea what could cause this, so I will just report it to GRAPHISOFT for investigation.
....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC25
Loving Archicad since 1995

felcunha
Expert
You have to click the button “apply predefined settings “ or something like that (the button shown in Italian in your image)
Felipe Ribeiro Cunha

AC 25, OS X Big Sur

Daniel Kovacs
Graphisoft
Graphisoft
alemanda,

It is not a bug, it's a limitation of the Selection Settings Dialog. Displaying the actual values here would require that this dialog would be aware of eg. how long the wall is, but since that value is not available here (only thickness and height), we decided we will be just displaying a kind of preview/placeholder for User Defined IFC values here, not the actual value. It will go out properly to lists and IFC files though.

Regards,
Daniel Alexander Kovacs

Professional Services Consultant

GRAPHISOFT
