doors and windows

[Bobby_ja_tt]

hi all
im having a problem with displaying my doors and windows on my plan
the doors/windows are displayed in the settings menu ,the section and the 3d window
but not the plan window..can anyone help me with this problem please.

regards

[David Maudlin]

Bobby:

Check your Model View Options. You should create a Model View Option Combination with the desired settings and assign it to the View in the View Map.

You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.

David

[Bobby_ja_tt]

hey dave

thanks for replying
i did that before
it does not work...
see the attached image

thanks

[David Maudlin]

Bobby:

The only way I could replicate your image is by setting the Model View Options for doors and windows to "Show Opening Only", I couldn't replicate this with various settings for the walls, doors and windows using the Floor Plan Cut Plane, but the problem might be there: are the doors, windows and walls set to "Symbolic"? Perhaps posting some screen shots with your Model View Options, Door, Window and Wall settings will help someone figure out the cause of your display problem.

HTH

David

[Bobby_ja_tt]

hi dave

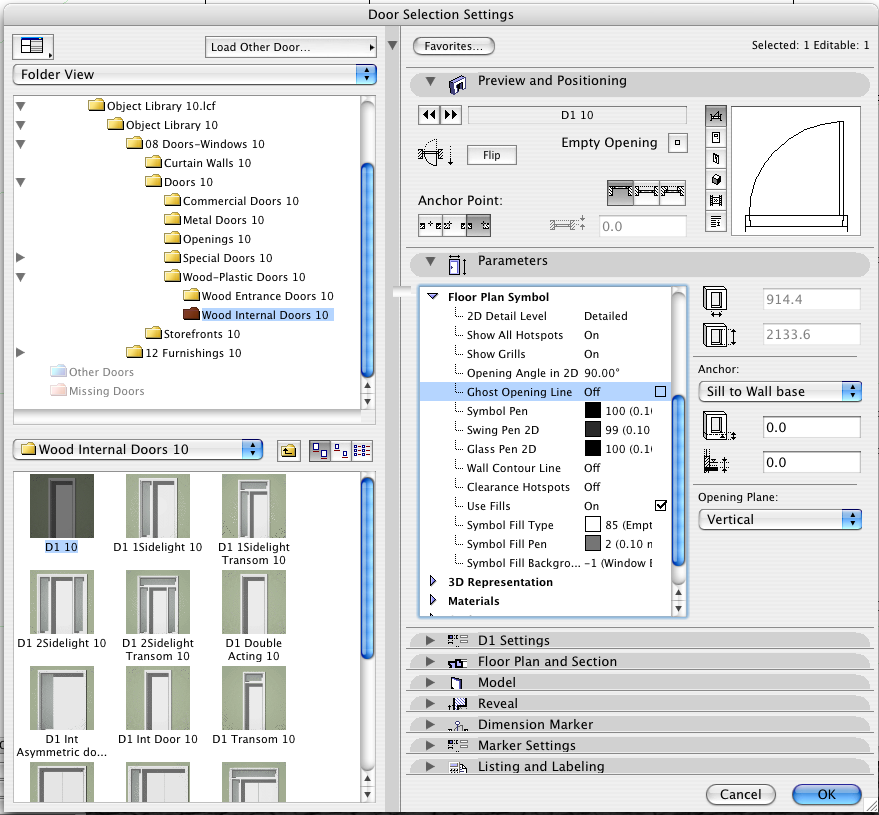

here are the screen shots
floor plan cut plane is at its default but i think u might be on to something with that idea because my model is not at the default zero level
im gonna try that.... did not work

[Bobby_ja_tt]

model view options

[Bobby_ja_tt]

floor plan cut plane

[Chazz]

How's it look in 3D?

[David Maudlin]

Bobby:

The Model View Options look good, so you might want to check some display options for the walls, doors and windows: you should set these to "Symbolic" (this ignores the Floor Plan Cut Plane, although yours looks reasonable if your units are millimeters). For the doors go to Door Settings > Floor Plan Display > and set to "Symbolic", same location for the windows, and for the walls go to Wall Settings > Floor Plan and Section > Floor Plan Display and set to "Symbolic". If that doesn't work, then I am afraid that I am out of ideas, hopefully someone else may have a clue.

Good luck,

David

[Bobby_ja_tt]

hello dave

thanks for your help that last thing you suggested worked

regards.
