Wishes forum

Right Angle Triangle Window

JaredBanks
Mentor

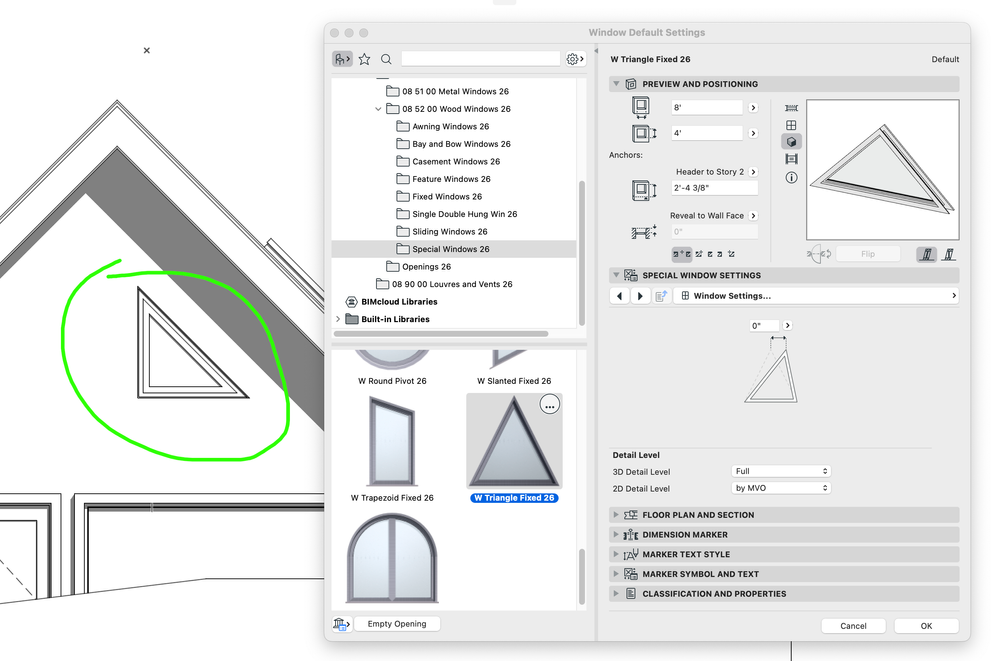

How is it possible that in 2022 / Archicad 26 there is still not an out of the box right angle window? The Triangle Fixed window [Moderator: in the USA library] can not have a vertical side. This is super annoying. The only way to achieve this basic window shape (without paying for a 3rd party window like Cadimage) is to use the ancient FreeFormWindow, which is missing tons of features and is surely going to stop working at some point. Can whoever is in charge of the libraries, just spend like 5 minutes and get us this window?Screen Shot 2022-11-16 at 9.45.53 AM.png

Jared Banks, AIA
Shoegnome Architects

Archicad Blog: www.shoegnome.com
Archicad Template: www.shoegnome.com/template/
Archicad Work Environment: www.shoegnome.com/work-environment/
Archicad Tutorial Videos: www.youtube.com/shoegnome
4 ACCEPTED SOLUTIONS
16 REPLIES 16

Karl Ottenstein
Moderator

It is pretty weird for sure after all these years! The parameter shown in your screenshot for the location of the peak can be adjusted vanishingly close to ½ the window width to approximate a right angle window in a pinch for preliminary design work.  Depending on the scale of the drawings, it might be enough to fake CDs.



Attached, I dragged the closest approx to a right triangle to the edge of a wall to show the small (approx 1/4" for a 40" wide window) gap showing in the stucco due to the inability to set the top vertex exactly above the bottom one.  I turned on casing to make this really obvious. The fact that they disallow two vertices from occupying the same X coordinate position (per se) tells us that the mathematical construction method used would have to be changed to allow this to be a more flexible window... so I'd guess it is more than 5 minutes work, but work that should be done nonetheless.



Screen Shot 2022-11-16 at 2.17.24 PM.jpg



Screen Shot 2022-11-16 at 2.16.04 PM.jpg

One of the forum moderators   •   AC 26 USA and earlier   •   macOS Ventura 13.2, iMac Pro 10-Core, Radeon Pro Vega 64

JaredBanks
Mentor

It's so frustrating to take that top vertex to 1/2" then 1/4" then a 1/16"... so close to zero and yet, nope! I agree for SD, it's probably fine. But I refuse! 🙂

Jared Banks, AIA
Shoegnome Architects

Archicad Blog: www.shoegnome.com
Archicad Template: www.shoegnome.com/template/
Archicad Work Environment: www.shoegnome.com/work-environment/
Archicad Tutorial Videos: www.youtube.com/shoegnome

Maybe it is an imperial thing. I just checked in the INT version and I can get a right-angle triangle window from that exact object.






Nathan Hildebrandt
Director | Skewed
www.skewed.com.au
ARCHINTENSIVE 2023 is coming up soon - reach out to me if you want to present!

AC6 - AC26 | WIN 11 | i9-10900K @ 3.7Ghz | 32GB Ram | NVIDIA GeForce RTX 3070

I do not have the words to express how ridiculous this is. In the USA library, we can not do that.

Jared Banks, AIA
Shoegnome Architects

Archicad Blog: www.shoegnome.com
Archicad Template: www.shoegnome.com/template/
Archicad Work Environment: www.shoegnome.com/work-environment/
Archicad Tutorial Videos: www.youtube.com/shoegnome

Solution

Yeah, when I saw your post I had to test it to see. And to think that it doesn't work in the US library is really disappointing, to say the least.

Nathan Hildebrandt
Director | Skewed
www.skewed.com.au
ARCHINTENSIVE 2023 is coming up soon - reach out to me if you want to present!

AC6 - AC26 | WIN 11 | i9-10900K @ 3.7Ghz | 32GB Ram | NVIDIA GeForce RTX 3070

Solution
AllanP
Booster

in the Australian library that ships with Archicad 25, it works,





but way back in Archicad 22 it was still broken.



the offending lines of script are divide by zero for the triangle window




add an exception for divide by zero that has been added in the Australian library for 25/26


line 443

if iWindowShape = SHAPE_TRIANGLE then
if abs(ac_wallhole_width / 2 + gs_posTopEdge_triangle) < EPS then
      tan_LeftSide = 0
else


if abs(ac_wallhole_width / 2 - gs_posTopEdge_triangle) < EPS then
     tan_RightSide = 0
else



and a bit futher down find any other lines that mention

if iWindowShape = SHAPE_TRIANGLE then

There are only 5 short groups of script that are for the triangle window

and add exceptions for divide by zero



line 876

if iWindowShape = SHAPE_TRIANGLE then

if abs(tan_LeftSide) < EPS then
    _oleft = 0
else



line 886

if iWindowShape = SHAPE_TRIANGLE then

if abs(tan_RightSide) < EPS then
    _oright = 0
else



line 1437

if iWindowShape = SHAPE_TRIANGLE then

if abs(tan_LeftSide) < EPS then
    _oleft = 0
    _oright = -rightJamb / sin(atn(tan_RightSide))
    _xTop = 0
    _yTop = (ac_wallhole_width + _oright) * tan_RightSide
else
    if abs(tan_RightSide) < EPS then
         _oleft = -leftJamb / sin(atn(tan_LeftSide))
        _oright = 0
       _xTop = ac_wallhole_width + _oleft
       _yTop = _xTop * tan_LeftSide
   else



line 5387

if iWindowShape = SHAPE_TRIANGLE then

if abs(tan_LeftSide) < EPS then
     _oleft = 0
     _oright = -offRight / sin(atn(tan_RightSide))
     _xTop = 0
     _yTop = (sideLeft + sideRight + _oright) * tan_RightSide
     px1 = (sideLeft + sideRight) / 2 + _oright - (offBottom / tan_RightSide) * not(gs_stack_bottom)
     px2 = -(sideLeft + sideRight) / 2
else
     if abs(tan_RightSide) < EPS then
          _oleft = -offLeft / sin(atn(tan_LeftSide))
         _oright = 0
          _xTop = sideLeft + sideRight + _oleft
          _yTop = _xTop * tan_LeftSide
          px1 = (sideLeft + sideRight) / 2
          px2 = -(sideLeft + sideRight) / 2 - _oleft + (offBottom / tan_LeftSide) * not(gs_stack_bottom)
     else











Someone in Oz has already fixed.



I am up to page 4,078 of Archicad 26 Reference Guide, (Worksheet and Detail Tool Settings), but i got to read it all 😞

JaredBanks
Mentor

Hopefully someone at GS with authority in the USA library sees this and fixes it.

Jared Banks, AIA
Shoegnome Architects

Archicad Blog: www.shoegnome.com
Archicad Template: www.shoegnome.com/template/
Archicad Work Environment: www.shoegnome.com/work-environment/
Archicad Tutorial Videos: www.youtube.com/shoegnome

Another reason I went to the dark side of gdl all the things.

standard window in GER lib.
