Add Full Opening Capabilities of Single & Multi-Slider Doors in 2D & 3D

TSarborsouth
Contributor

The sliding doors need to have the same ability as swing doors to FULLY OPEN. It limits how we can display 2D & 3D documents to clients when you can't fully "open" a space to show the intended result.

As of right now a (3) panel 11'-0 slider can only open ~3'-0", severely limiting its use. The only work around I've found without paying for 3rd party apps is to recreate the door with various 3D parts for presentation purposes then hiding or deleting once 2D & working drawings begin.

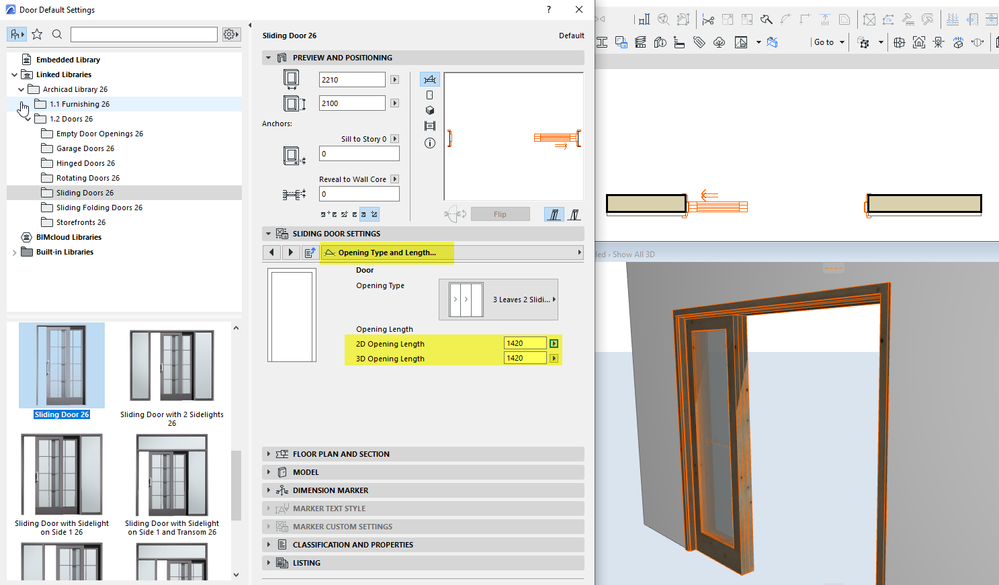

       I've included screen shots of what Archicad provides with their limited opening and then the doors how I want them to display built with posts and beams.
