COBie 2.4 MVD and AC21 new IFC translator dialogue

[daviddelven]

Hi everyone

I'm getting involved migrating to COBie and AC21, and I'm trying to understand how the MVD COBie 2.4 really works due to the changes in IFC translator dialogue.

Should I create a new XML adding manually the required COBie PSets and properties? The only 2 available xml files are the default IFC 2x3 Schema and IFC 4 Schema, so COBie properties don't appear.

In AC20 we could import the required COBie xml Scheme (US or UK version) with all the preset PSets and properties.

Thanks in advance,

[stefan]

If I look in my (localised) ARCHICAD 21 version, I have following translator setup:

Scheme: Ifc2x3
MVD: Basic FM Handover (!)
Model Filter: most elements from architecture
Type Mapping: default AC21 Type Mapping
Geometry Conversion: Mostly extruded/Revolved and without junctions. No parts. Hierarchical elements are kept with hierarchy.
Property Mapping is default Ifc2x3 mapping (!)
Data Conversion: including classifications and only properties from mapping, but also quantities, space containment and boundaries.


I haven't produced any COBie files till now. I'm still learning myself. I have the book from Rob Jackson and also the Revit one, but so far there has been no COBie demand in our region.

[daviddelven]

Hello Stefan,

You showed me Basic FM Handover MVD which is not the basis of the current COBie 2.4.

In my case:

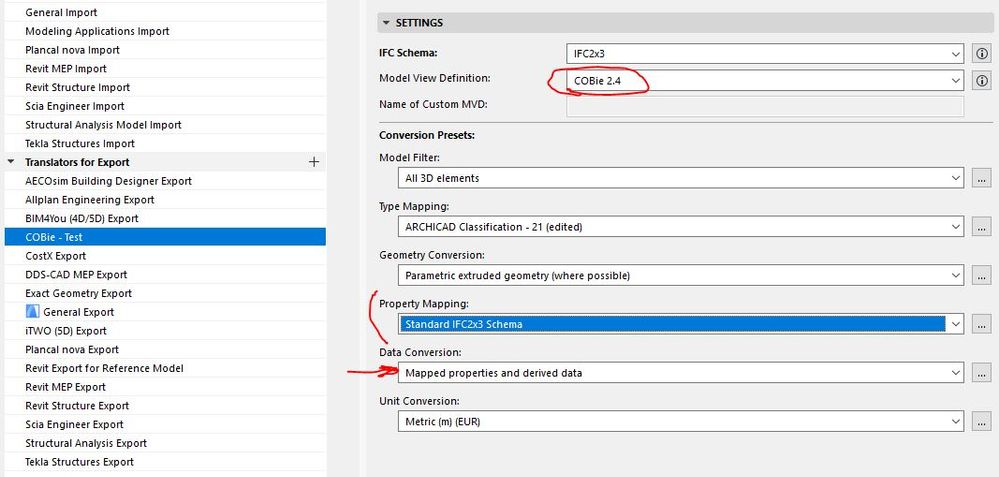

Model View Definition: COBie 2.4

#Conversion Presets#

Model Filter: All 3D elements
Type mapping: ARCHICAD Classification 21
Geometry Conversion:
Parametric extruded geometry (where possible)
Property Mapping: Standard IFC2X3 Schema
Data Conversion: (!) Mapped properties only
Unit Conversion: (!) Metric (mm) (USD)

(!) Preset is no compatible with selected Model View Definition
