2014-02-23 11:38 PM
2014-02-23
11:38 PM
I have in fact 3 types of light on my plan, why couldn't it recognize them by their 2D symbol? They have DIFFERENT 2D symbols! So does this mean I have to add an unneeded schedule field as to distinguish between different types of light fixtures?

Labels:
- Labels:
-
Data management
4 REPLIES 4
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2014-02-24 02:14 AM
2014-02-24
02:14 AM
Yep. I normally use the ID field
Eduardo Rolón AIA NCARB
AC28 US/INT -> AC08
AC28 US/INT -> AC08
Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2014-02-24 02:25 AM
2014-02-24
02:25 AM
Yes you will need something unique in your fields.
Although the 2D symbol looks unique to us Archicad just sees it as a 2D symbol.
I am assuming you have one object that can show different lights.
Using the object name is no good as it is obviously the same for all 3 lights.
But in the object you must be setting a parameter to choose a particular light.
So use that parameter in you fields.
Or as Eduardo suggested use the ID and make sure each light (or each type of light) has a unique ID.
Barry.
Although the 2D symbol looks unique to us Archicad just sees it as a 2D symbol.
I am assuming you have one object that can show different lights.
Using the object name is no good as it is obviously the same for all 3 lights.
But in the object you must be setting a parameter to choose a particular light.
So use that parameter in you fields.
Or as Eduardo suggested use the ID and make sure each light (or each type of light) has a unique ID.
Barry.
One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2014-02-24 03:36 AM
2014-02-24
03:36 AM
I dunno how you guys do it, but I plan to do it this way: Add the ID field, or light intensity field ( I found out that it works too, since I assigned them different values ), then when placing it on the layout, I add a white fill to cover the unwanted fields...


Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2014-02-24 04:00 AM
2014-02-24
04:00 AM
I guess it depends what you want to see in your schedule.

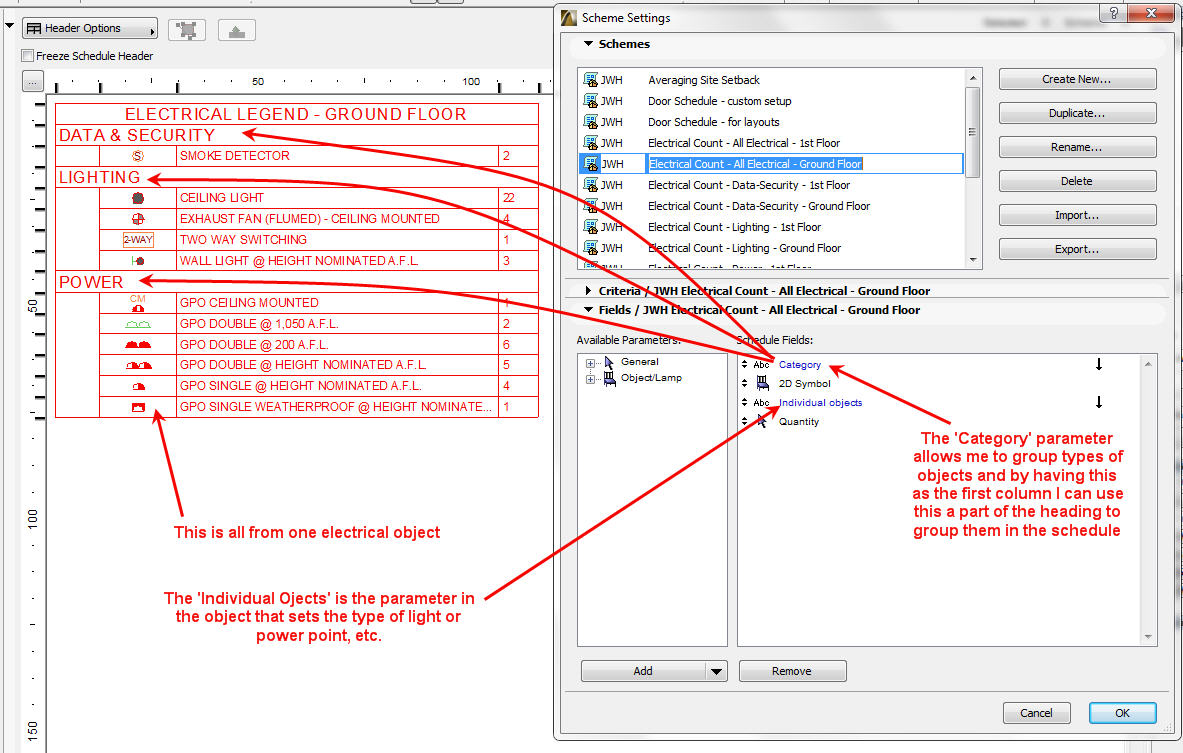

I have one object that can do all electrical items.
It has a parameter that is set automatically in the object depending on the type of electrical fitting so that I can group the schedule by using this as part of the heading (you don't have to do this).
The parameter in the object that I use to choose the type of fitting is descriptive enough for me to use it in the schedule as my description in the legend.
Barry.
