Open BIM Workflow Improvements

Open BIM Workflow Improvements Graphisoft’s Open BIM approach continues to be the focal point, through which we support design teams in efficient multi-disciplinary collaboration. IFC4 certification for Architectural Reference Exchange for Import Dur...


MEP Modeler Improvements

Archicad 27 includes a range of exciting improvements and features! In this article, we’ll look at the revamped MEP Modeler toolset and explore some tips & tricks useful in the modeling process. The MEP Modeler empowers architects, engineers, and des...

Intuitive Routing Process.gif Auto generation of junctions.gif Enhanced Route editing options.gif Select Connected MEP Elements (1).gif

ARCHICAD Export to DWG/DXF

Save as DWG: You can save a project view or layout from ARCHICAD to DXF and DWG formats. To save only one part of the view, use the Marquee to delimit the project and select Save As command. When Save Plan dialog is displayed, choose DXF or DWG forma...

wp-content_uploads_archicadwiki_dwg-export--saveas.png wp-content_uploads_archicadwiki_dwg-export--smartmerge_dwg.png wp-content_uploads_archicadwiki_dwg-export--translatoricon.png
automata Graphisoft
  • 46044 Views
  • 4 comments
  • 0 likes

Automatic Live Load Generation

Table of Content Zones can be used for much moreDerive imposed loadsWhich zones generate live loads?1. Check the architectural model2. Check Zone Classifications3. Check Load CategoriesAdjust Load Categories inside ArchicadAdjust Load Categories outs...

EmokeCsikos_0-1653068947878.png EmokeCsikos_1-1653068947883.png EmokeCsikos_2-1653068947885.png EmokeCsikos_3-1653068947888.png

DXF-DWG Export Translator Settings

Available: File > File Special > DXF-DWG Translation Setup By clicking on a Translator during export, you can see and edit its content in the fields below, which falls into six main groups: Drawing Units Value of 1 DXF/DWG Drawing Unit in Archicad: A...

wp-content_uploads_Screen-Shot-2014-09-10-at-14.02.15-e1410350628952.png wp-content_uploads_Screen-Shot-2014-09-10-at-14.48.15-e1410353355481.png wp-content_uploads_archicadwiki_dwg-export-translator--attrlaymetcrlayacc.png wp-content_uploads_archicadwiki_dwg-export-translator--editthelayerconvitembasedontempl.png

Import/Export File Formats in Archicad

File Format Categories Archicad Formats Archicad BIMx Teamwork Library PlotMaker Diagnostics Other Formats CAD 3D/BIM Vector Graphics Image Point Cloud Video Documentation Archicad Formats Archicad Project Formats import / export .PLN Archicad Solo P...

wp-content_uploads_2019_07_ImportIcon_18x18.svg wp-content_uploads_2019_07_ExportIcon_18x18.svg wp-content_uploads_2019_07_ExportIcon_18x18_30.svg wp-content_uploads_2019_07_ImportIcon_18x18_50.svg

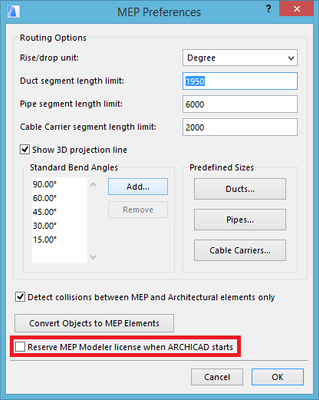

MEP Frequently Asked Questions

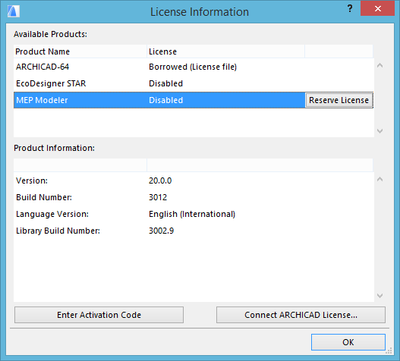

Note: MEP Modeler add-on has become an integrated design tool in Archicad 24. See more in Enhancements of the Built-in MEP Modeler. This article describes how to use the add-on in Archicad 23 and earlier. How do I edit MEP elements in Archicad withou...

wp-content_uploads_2010_08_locked-1024x726.png wp-content_uploads_2010_08_MEP-Preferences-2.png wp-content_uploads_2010_08_MEP-Preferences-3.png wp-content_uploads_2010_08_reserve-MEP-license.png

3DStudio In Add-On

This ARCHICAD Add-On can convert 3D Studio Max (.3ds) files to ARCHICAD as GDL objects. The conversion process can be customized by the user. Download and install "3DStudio In" Add-On You can download this Add-On amongst other Goodies by clicking on ...

wp-content_uploads_2017_05_3ds-menu-1024x488.png wp-content_uploads_2017_05_Currently-Loaded-3ds-file.png wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2017_05_3ds-conversion-options-853x1024.png

Placing DWGs as Drawings

Many consultants, including civil engineers and landscape architects, collaborate using DWGs. Referencing this content is a great way to selectively bring this data into a project file. Benefits to Using a DWG as a Reference Prevents unwanted attribu...

wp-content_uploads_2018_09_Screen-Shot-2018-09-13-at-9.29.50-AM-1.png wp-content_uploads_2018_09_Screen-Shot-2018-09-13-at-10.09.35-AM.png wp-content_uploads_2018_09_Screen-Shot-2018-09-13-at-10.10.05-AM.png wp-content_uploads_2018_09_Screen-Shot-2018-09-13-at-11.15.25-AM.png

Export Component-Level Data to IFC

Export customized data for individual components in IFC format In earlier versions of Archicad, we couldn’t export customized data for individual components (not just elements as a whole) in IFC format, so component-level quantity reports required wo...

EmokeCsikos_0-1653336603164.png EmokeCsikos_1-1653336603175.png EmokeCsikos_2-1653336603180.png EmokeCsikos_3-1653336603186.png

Faster Export to FRILO

Frequently exporting SAF files to FRILO can be time consuming Structural engineers who use FRILO are currently spending quite some time exporting SAF files by selecting a save location and setting the path for export each time, which interrupts the w...

MoaazHassan_0-1653304653486.png MoaazHassan_1-1653304653488.png MoaazHassan_2-1653304653489.png MoaazHassan_3-1653304653492.png

SAF Translator Improvements

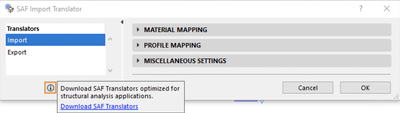

Adjusting SAF Translator settings Currently, structural engineers can create and adjust structural analytical models in Archicad and eventually export them to the structural analysis software via SAF translators. However, in earlier versions of Archi...

MoaazHassan_0-1653306242486.png MoaazHassan_1-1653306242492.png MoaazHassan_2-1653306242497.png MoaazHassan_3-1653306242499.png

Morphs Exported as IfcSpace

Compliance with the German BIM modeling guidelines In general, during certain workflows, it is necessary to model rooms with the Morph Tool in addition to the Zone Tool. In addition to this modeling method, the new German BIM modeling guidelines requ...

MarcellHillier_0-1653303719587.png MarcellHillier_1-1653303719594.png

Splitting Rules of IFC Mapping

This post is to follow up on the previously published ‘Syncing Zone Cover Fills and Floor Finishes’ article where we mapped the Cover Fill value of the Zones to a custom made IFC property and made it appear in the Zone Stamp, this way saving some tim...

split01.png split02b.png split04.png split03.png

Converting RFA files into GDL Objects

Using RFA content can be a great tool in building up a custom library. Follow the steps below to convert RFA content into GDL objects. NOTE: This process requires the user to install a plugin available from our partner BIM6x. Download and Install the...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_09_Screen-Shot-2018-09-20-at-10.10.08-AM.png wp-content_uploads_2018_09_Screen-Shot-2018-09-20-at-10.10.14-AM.png wp-content_uploads_2018_09_Screen-Shot-2018-09-20-at-10.11.07-AM.png

DWG Layers' visibility in ARCHICAD

To control the visibility of objects, usually there are more Layers used in DWG projects. Let's see how can the different import options in ARCHICAD manage the DWG layers: Open File » Open To define how elements in ARCHICAD will be interpreted use th...


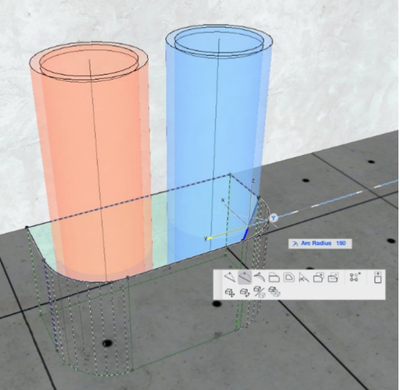

Seamless Collaboration with MEP Engineers

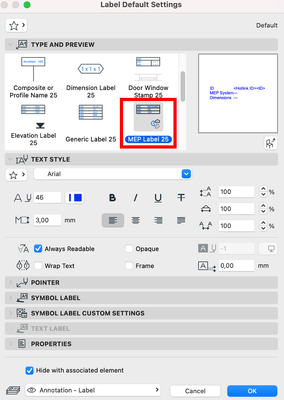

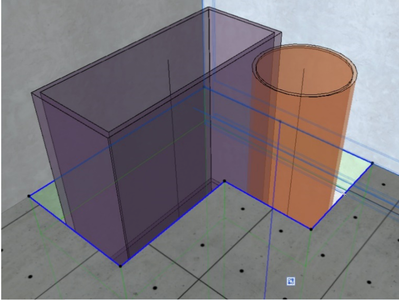

The Opening Tool now enables precise quantity estimations by offering the possibility to create polygonal openings in any 2D or 3D views - the Magic wand functionality can be used in the process as well. A new MEP label is also available, besides the...

wp-content_uploads_2021_05_Screenshot-2021-05-27-at-14.58.17.png wp-content_uploads_2021_05_Screenshot-2021-05-27-at-14.58.51.png wp-content_uploads_2021_05_Screenshot-2021-05-27-at-15.00.22.png wp-content_uploads_2021_05_Screenshot-2021-05-20-at-15.53.42-1.png

Native Archicad Survey Point

In the project, the stakeholders work on models, which are created with different applications. Synchronizing and defining location data on the individual object level is time consuming and may result in inconsistent element placement when exchanging...

wp-content_uploads_2021_06_Native-survey-2.png wp-content_uploads_2021_06_Toolbar.png

Frequently Asked Questions About IFC

What are IFC and MVD? The IFC file format is ISO-certified and it was developed by the BuildingSMART (formerly the IAI - the International Alliance for Interoperability). IFC is the only open and standard 3D object-oriented exchange format used by BI...

Anonymous
Anonymous
  • 5325 Views
  • 0 comments
  • 1 likes

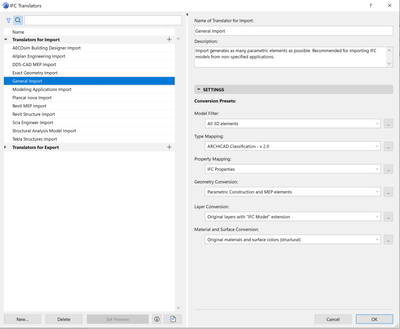

Archicad IFC Translators

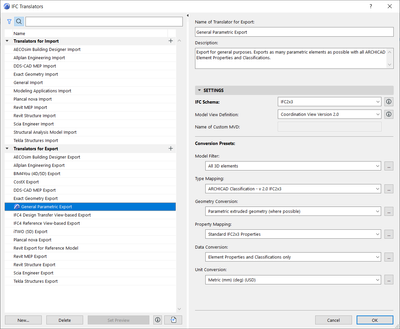

Importing and exporting model data using IFC is controlled by the settings of the translator you are using. Archicad comes with a handful of preset translator options which are optimized for certain 3rd party software but you can also create your own...

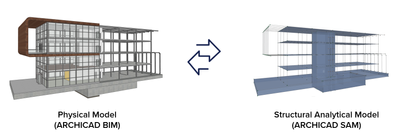

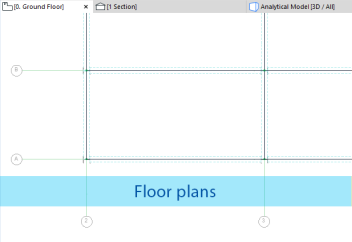

Structural Analytical Model Exchange

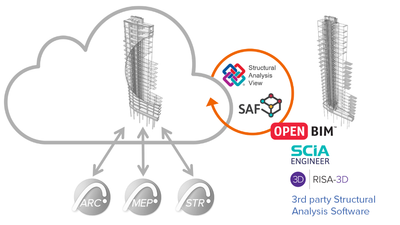

Archicad can share the structural analytical model with any external finite element analysis software that supports open-source file formats optimised for this purpose, such as: Structural Analysis Format (SAF) IFC Structural Analysis View (IFC SAV) ...

wp-content_uploads_2020_07_analytical-openbim-2-NEW-1.png wp-content_uploads_2020_07_SAF_Translator_Export.jpg wp-content_uploads_2020_07_SAF_Translator_Import.jpg

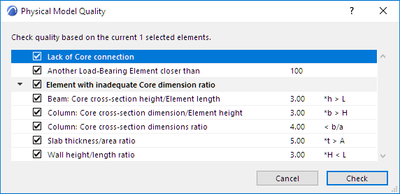

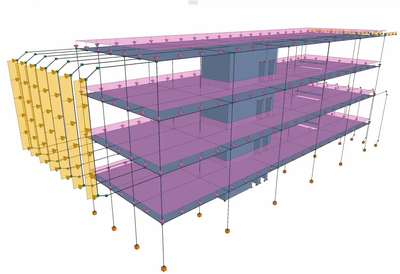

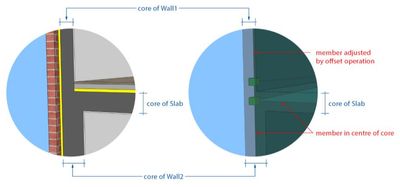

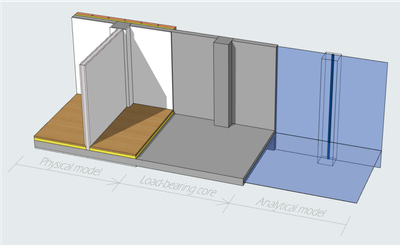

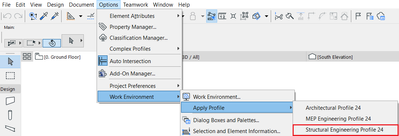

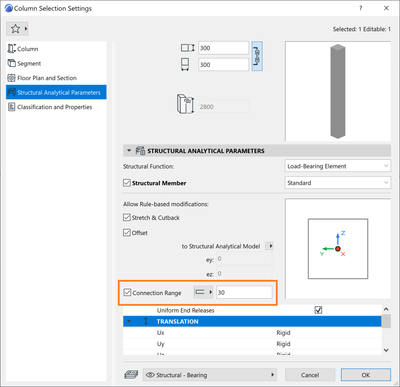

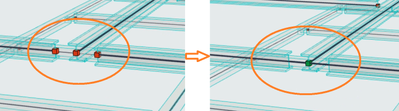

Integrated Structural Analytical Model

The integrated structural analytical model within Archicad helps architects and structural engineers achieve real collaborative teamwork. This capability is available as of Archicad 24. While architects design with the help of physical models (BIM), ...

wp-content_uploads_2020_07_IntegratedSAM.png wp-content_uploads_2020_04_Physical-Model-with-Integrated-Structural-Analytical-Model.png wp-content_uploads_2020_07_analytical-openbim-2-NEW.png wp-content_uploads_2020_04_Integrated-analytical-model-generated-within-the-defined-physical-model.png

Rhinoceros — GDL Converter

The Rhinoceros - GDL Converter is a part of the Rhino – Grasshopper – ARCHICAD Toolset. Create native ARCHICAD objects in Rhinoceros With this toolset, designers can save a selected part of a Rhino model in a native ARCHICAD object file (.gsm or .lcf...


Rhinoceros Import/Export Add-ons

The Rhinoceros Import/Export Add-ons are parts of the Rhino – Grasshopper – ARCHICAD Toolset. Exchange models in Rhinoceros native file format Designers may choose to work with a "reference model workflow" by exporting and importing models between AR...


Open BIM

OPEN BIM is a universal approach to the collaborative design, realization, and operation of buildings based on open standards and workflows. OPEN BIM is an initiative of several leading software vendors using the open buildingSMART Data Model. Why is...

wp-content_uploads_2020_05_banner-open_bim.png wp-content_uploads_2020_05_logo-tekla.png wp-content_uploads_2020_05_logo-graphisoft_2X.png wp-content_uploads_2020_05_nemetschek-group-logo.png

DXF-DWG Font Style Conversion Mapping

Follow the steps below to map line types in ArchiCAD to those in a DXF/DWG file. For an overview on DXF/DWG translators, click here. 1. Select the translator you wish to edit. 2. In the Settings tab, navigate to the Save Options and make sure that a ...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.15.46-AM.png wp-content_uploads_2018_11_Font-1.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-12.10.48-PM-300x197.png

DXF-DWG Line Types Mapping

Follow the steps below to map line types in ArchiCAD to those in a DXF/DWG file. For an overview on DXF/DWG translators, click here. 1. Select the translator you wish to edit. 2. In the Settings tab, navigate to the Save Options and make sure that a ...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.15.46-AM.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-12.18.51-PM.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-12.19.03-PM-300x245.png

DXF-DWG Layers Mapping

Follow the steps below to map line types in ArchiCAD to those in a DXF/DWG file. For an overview on DXF/DWG translators, click here. 1. Select the translator you wish to edit. 2. In the Settings tab, navigate to the Save Options and make sure that a ...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.15.46-AM.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.25.42-AM.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.26.53-AM.png

An Overview of DXF/DWG Translators

Overview of DXF/DWG Translators DXF/DWG translators allow ARCHICAD users apply a set of conversion rules to content being imported and exported from the program. Multiple translators can be setup to handle content from multiple consultants. To access...

wp-content_uploads_2019_02_Screen-Shot-2019-02-12-at-10.20.17-AM.png wp-content_uploads_2019_02_Screen-Shot-2019-02-12-at-10.38.48-AM-copy-2.png wp-content_uploads_2019_02_Screen-Shot-2019-02-12-at-10.32.05-AM.png wp-content_uploads_2019_02_Screen-Shot-2019-02-12-at-10.32.16-AM-1.png

DXF-DWG Pens and Colors Mapping

Follow the steps below to map line types in ArchiCAD to those in a DXF/DWG file. For an overview on DXF/DWG translators, click here. 1. Select the translator you wish to edit. 2. In the Settings tab, navigate to the Save Options and make sure that a ...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.15.46-AM.png wp-content_uploads_2018_11_Pens-1.png wp-content_uploads_2018_11_Pens-2.png

DXF-DWG Fills Mapping

Follow the steps below to map line types in ArchiCAD to those in a DXF/DWG file. For an overview on DXF/DWG translators, click here. 1. Select the translator you wish to edit. 2. In the Settings tab, navigate to the Save Options and make sure that a ...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-9.15.46-AM.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-12.24.32-PM.png wp-content_uploads_2018_11_Screen-Shot-2019-02-08-at-12.24.44-PM-300x238.png

How to Create a Custom DXF-DWG Translator

Collaboration with consultants many times involves the use of DXF-DWG files. Differences in office standards can make content graphically difficult to use. Luckily, the DXF-DWG translator can help users map attributes in ArchiCAD to those in DXF-DWG ...

wp-content_uploads_2018_11_Create.png wp-content_uploads_2018_11_Create-3-1.png wp-content_uploads_2018_11_Descriptions-1.png

Importing 3DS Files as Objects

Using 3DS content can be a great tool in building up a custom library. In order to import 3DS files the 3DStudio In add-on will need to be installed. The add-on is part of the Goodies installer. After this package is installed, follow the steps below...

wp-content_uploads_2018_09_3DS-Import-Step-1-300x174.png wp-content_uploads_2018_09_3DS-Import-Step-2-300x219.png wp-content_uploads_2018_09_3DS-Import-Step-3-1.png wp-content_uploads_2018_09_3DS-Import-Step-4-1.png

Model exchange with Autodesk Revit®

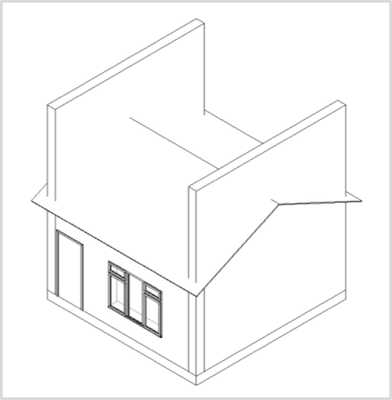

Is there a better alternative for model exchange with Revit® then the IFC workflow? No, there isn't. But there is a way to have a limited, direct connection. Use RFA & RVT Geometry Exchange Add-On to import and export 3D models via native Revit file ...


Coordinates and Orientation

Create the ARCHICAD model close to the ARCHICAD origin, which is indicated by a black cross on the floor plan. Loss of precision or malfunction can be experienced if the project elements are located very far from the project origin or from each other...

wp-content_uploads_ifc_IFC_Exchange_Best_Practices.1.03.1.png wp-content_uploads_ifc_IFC_Exchange_Best_Practices.1.03.2.png wp-content_uploads_ifc_IFC_Exchange_Best_Practices.1.03.3.png

Managing Attributes from Imported IFCs

Introduction When an IFC is imported and you choose the option 'convert to construction elements, otherwise objects/morphs', then new attributes will be created in ARCHICAD. If the imported content is an IFC structural file, the newly created attribu...

wp-content_uploads_ifc_IFC_Exchange_Best_Practices.1.13.1.png wp-content_uploads_ifc_IFC_Exchange_Best_Practices.1.13.2.png

IFC Import to ARCHICAD 20

Before you start check the 'IFC Translator Settings for IFC Import to ARCHICAD' IFC Import to ARCHICAD 20 Workflow File Menu > Open > Open Choose IFC as File TypeLocate and select the fileChoose or create an IFC Translator (Please note, that the Tran...

wp-content_uploads_2017_01_import-1.png wp-content_uploads_ifc_IFC_Exchange_Best_Practices.1.12.1.png

IFC Import into Revit

There are two ways to import an IFC file into Revit: Link IFC and Link RVT. Link IFC This option is recommended for inserting IFC models into the current Revit project as references. You cannot edit the IFC model in Revit. If you later update the ori...


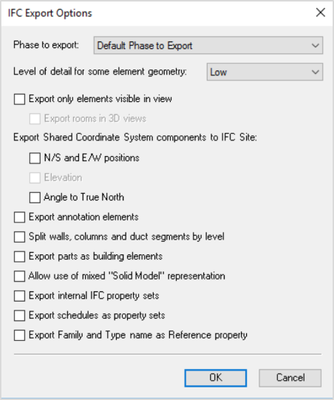

Exporting Stories/Levels from Revit

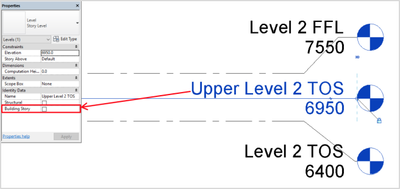

Set the Revit Levels so that they are calculated from 0. Prior to exporting an IFC file from Revit, make sure all additional structural levels (TOS, TOC, TOB, etc) are not set as Building Story. Secondly, add additional Levels to match the agreed lev...


3D Studio Files in Archicad

Import 3ds Max Files (.3ds) With the help of '3DStudio' In Add-On you will be able to convert .3ds files to Archicad GDL objects. By default, it is not integrated into Archicad. You can find a detailed description about the Add-on and how it works on...

wp-content_uploads_2017_01_save-as-out.png wp-content_uploads_2017_01_save-as-1.png wp-content_uploads_2017_01_convert-units.png wp-content_uploads_archicadwiki_3dstudio--3ds.png
mtron Graphisoft
  • 85044 Views
  • 0 comments
  • 0 likes

Point Cloud - Troubleshooting Guide

Huge Point Clouds can't be opened in ARCHICAD Affected version: 19 and later | Severity: workaround applicable | ID: 191641IssueImporting Point Clouds that result in a .lcf file larger than 4GB cannot be done because of the limitation of the .lcf ext...

wp-content_uploads_2015_04_Antialias.png wp-content_uploads_2015_04_zoom-problem-pointcloud.png wp-content_uploads_2015_04_Point-cloud-Floor-plan-display-e1430230765971.png

IFC Based OPEN BIM Workflow – Part 3

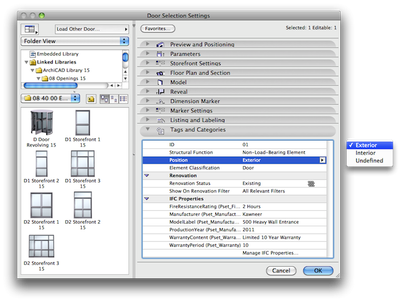

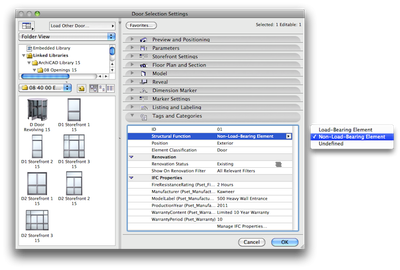

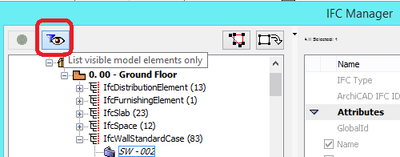

Accessing and Displaying IFC Properties in ARCHICAD and BIMx IFC Data in 2D Documentation – Labels, Markers and Zone Stamps IFC Properties can be displayed in 2D views of the model in ARCHICAD: on floor plans, sections, elevations, etc. The main tool...

wp-content_uploads_2016_09_label-4-1024x495.png wp-content_uploads_2016_09_label-5-1024x336.png wp-content_uploads_2016_09_name-3-1024x215.png wp-content_uploads_2016_09_find-and-select.png

IFC Based OPEN BIM Workflow – Part 2

IFC Property Management in ARCHICAD There are predefined IFC properties for ARCHICAD elements set by the IFC properties scheme setup and we can define an unlimited number of custom IFC properties as well. When a new, custom IFC property is added, you...

wp-content_uploads_2016_09_property-level.png wp-content_uploads_2016_09_fire-rating.png wp-content_uploads_2016_09_properties-mapping-1024x526.png wp-content_uploads_2016_09_schemes-setup-1-1024x668.png

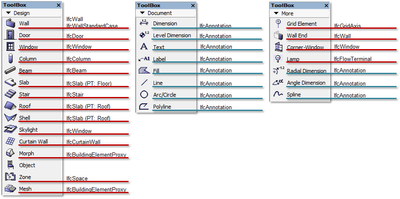

IFC Based OPEN BIM Workflow – Part 1

How to prepare your model in ARCHICAD for collaboration in OPEN BIM For every party collaborating in OPEN BIM it is crucially important to have a shared system of the project regarding: Identical Project Location settings, such as: Project origin Nor...

wp-content_uploads_2016_09_elementclass1.png wp-content_uploads_2016_09_elementclass2.png wp-content_uploads_2016_09_subtype.png wp-content_uploads_2016_09_object-IFC-type-1024x576.png

Rhinoceros - GDL Converter - FAQ

What is the Rhinoceros - GDL Converter? The Rhinoceros® - GDL converter enables users on Windows platform to export a model created in Rhino, and import it to ARCHICAD (to both Mac and Windows platforms). The Rhino-ARCHICAD link converts Rhino model ...

wp-content_uploads_2015_05_table-300x243.png wp-content_uploads_2015_05_roof-shell-300x194.png wp-content_uploads_2016_08_Rhino-save-error-1.png wp-content_uploads_2015_05_Surface-Override-Rhino.png

DWG - Troubleshooting Guide

Check Translator Settings DXF-DWG Translator basics DXF-DWG Translator settings for Import DXF-DWG Translator settings for Export Known Issues AutoCAD text loses its line breaks if imported via DWG Affected version(s): ARCHICAD 19 or older | Severity...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2012_11_DWG-translation-block.png wp-content_uploads_archicadwiki_dwg-knownissues--fromlayouttomodelspace.jpg wp-content_uploads_archicadwiki_dwg-export-autocadalert--acad_alert.png
automata Graphisoft
  • 3943 Views
  • 0 comments
  • 0 likes

External Content - Troubleshooting guide

The External Content Menu is missing from the File menu in ARCHICAD 19 Solo edition Affected version: 19 Solo | Severity: workaround applicable | ID: 200991 NOTE: This issue will be fixed in ARCHICAD 20 Solo. Issue The External Content menu is missin...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_2015_07_External-content-missing.png wp-content_uploads_2015_07_Navigator-Drawing-Manager.png wp-content_uploads_2015_07_place-external-drawing-WE.png

How to Open and Save 3D DWG or 3DS Files

3D modelling softwares have different engines to compute objects, they have their own file formats. The conversion between these applications goes usually in two ways: Using DWG/DXF format: the content of the file depends on the conversion system of ...

wp-content_uploads_2016_06_Info_18x18.png wp-content_uploads_archicadwiki_dwg-import-3d--2.jpg wp-content_uploads_archicadwiki_dwg-import-3d--3.jpg.png wp-content_uploads_archicadwiki_dwg-import-3d--4.jpg
automata Graphisoft
  • 26525 Views
  • 0 comments
  • 0 likes

Importing DXF/DWG files into Archicad

The DXF/DWG Add-On is installed together with the Archicad package and is smoothly integrated into the Archicad user interface. It allows you to: Open AutoCAD drawings as Archicad Project or Archicad Library Parts File » Open It is worth using it if ...

automata Graphisoft
  • 48262 Views
  • 0 comments
  • 2 likes

Tips to Import DWG Files as Trace Reference

Sometimes we get reference files such as site plans, drafting aids, plans from co-workers in DWG format that we should not modify. To display two different views concurrently in any ARCHICAD model or layout window, we can use the Trace Reference feat...

wp-content_uploads_archicadwiki_dwg-import-drawingreference--tracereference.png wp-content_uploads_archicadwiki_dwg-import-drawingreference--newworksheet.png wp-content_uploads_archicadwiki_dwg-import-drawingreference--placedrawing.png wp-content_uploads_archicadwiki_dwg-import-drawingreference--showastrace.png
automata Graphisoft
  • 10813 Views
  • 0 comments
  • 0 likes

DXF-DWG Translator

Use this dialog box to define how elements in ARCHICAD will be interpreted when exported as DXF/DWG files, and vice versa: how the elements in DXF/DWG files will be interpreted when imported into ARCHICAD. Because of the difference between AutoCAD an...

wp-content_uploads_archicadwiki_dwg-dxf-dwgtranslator--picture.png wp-content_uploads_archicadwiki_moniker-images_checkmark.png
automata Graphisoft
  • 9998 Views
  • 0 comments
  • 0 likes

DXF-DWG Import Translator Settings

File/File Special/DXF-DWG Translation Setup By clicking on a Translator during import, you can see and edit its content in the fields below, which falls into five main groups: DXF-DWG Translator Settings Drawing Unit Select the correct value of 1 DXF...

wp-content_uploads_archicadwiki_dwg-import-translator--main_groups.png wp-content_uploads_archicadwiki_dwg-import-translator--openoptions.png wp-content_uploads_archicadwiki_dwg-import-translator--layerconversion.png wp-content_uploads_2016_06_Info_18x18.png
automata Graphisoft
  • 5306 Views
  • 0 comments
  • 0 likes

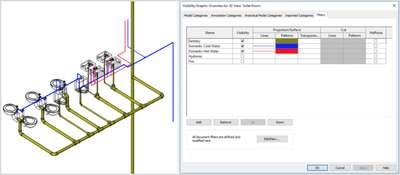

IFC Workflow Between ARCHICAD and Revit MEP

Follow the steps below when collaborating with someone using Revit MEP. ARCHICAD 15 and Revit MEP 2012 were used in the examples below but the process remains the same for current versions of ARCHICAD. 1) Set Element Parameters Open the selection set...

wp-content_uploads_archicadwiki_ifc-revitmep--1.png wp-content_uploads_archicadwiki_ifc-revitmep--2.png wp-content_uploads_archicadwiki_ifc-revitmep--3.png wp-content_uploads_archicadwiki_ifc-revitmep--4.png
automata Graphisoft
  • 2555 Views
  • 0 comments
  • 0 likes

XREFs

XREFs are External reference files: DXF or DWG filetypes which can be imported into ARCHICAD. It facilitates to collaborate with Sturctural Engineers. A common use for XREFs is to draw elements that are common to several kinds of drawings within a Pr...

wp-content_uploads_archicadwiki_dwg-import-xref--attachxreficon.png wp-content_uploads_archicadwiki_dwg-import-xref--attachxrefdialog.png wp-content_uploads_archicadwiki_dwg-import-xref--xrefmanagericon.png
automata Graphisoft
  • 3281 Views
  • 0 comments
  • 0 likes
