AutoCAD offers two methods of setting the color of drawing elements: ByLayer or ByBlock. In ARCHICAD you can use your default or template pen colors, if you match the AutoCAD and ARCHICAD colors following this workflow:

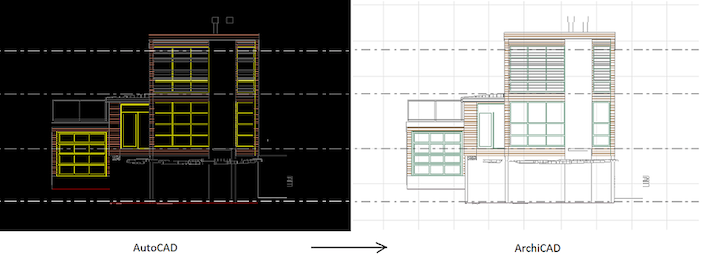

Demo file: Ross Street House, Madison, Wisconsin, Richard Wittschiebe Hand (RWH) Architects, www.rwhdesign.com
NOTE: Without modifying Import settings, True Colors of the DWG file will be automatically matched to the same ARCHICAD Pen color. If you would like to use the built-in ARCHICAD
Pen Sets, you can change their color after import in the
Element Attributes > Pens & Colors dialog.
Step 0: Change all DWG colors to Index Color
In our example the AutoCAD colors are set to ByLayer. Before importing a
DWG file into ARCHICAD, it is worth checking the color settings of the
DWG layers: in AutoCAD you should display the index numbers of ByLayer colors, which can be extracted e.g. in the Layer Properties Manager. In most cases, True colors have their equivalent (or very similar) Index Colors.
Change these True Colors to
Index Colors (e.g 255,255,0 = Index color: 2), because this way their import into ARCHICAD will involve fewer steps. Save the file as
DWG.
Step 1: Match AutoCAD Colors and ARCHICAD Pens
In ARCHICAD, open
File > File Special > DXF-DWG Translation Setup dialog.
(Note: While opening DWG or merging Xref, these settings are also available by clicking on Settings button.) In
Attributes/Pens and Colors/ Pen-color conversion, check the ‘Use Pen-color conversion table' checkbox.
Add new items to the list and
match the AutoCAD and ARCHICAD pens (the active ARCHICAD Pen Set is available in the 'Edit the pen conversion dialog). E.g. for AutoCAD pen 25, set your newly created ARCHICAD pen 196, etc. All pens with different Index Color numbers should be set once in
Translator.
Step 2: Save Translator Settings
If you are ready and have added all Pen-color conversion data to the list,
save the settings of
Translator.
TIP: The Translator can be saved, so if you import additional DWGs having the same color settings, you only have to adjust these settings once.
Step 3: Open DWG
Open the dwg file or
attach Xref with the edited and adjusted
Translator in ARCHICAD. All the AutoCAD colors will be displayed with the selected ARCHICAD pen colors.
NOTE: Do not forget to use the Pen Set you would like to display colors as: Element Attributes > Pens & Colors.
