Custom GDL objects for FREE

Anonymous
Not applicable
Each month Master Script will make a customized ArchiCAD object completely free of charge! You can send in your request and each month one of them will be developed by Master Script.
The ArchiCAD object will be available on the website http://www.masterscript.nl and it will be posted on the Object-Depository of Archi-Talk.

Send your request via the contact form (http://www.masterscript.nl/9403/index.html). State clearly what the object should do and how the representation should be in different views.
Leave your e-mail address for any communications about the object.
102 REPLIES 102

Anonymous
Not applicable
Now that's a supper cool offer!
Very generous Master Script.
lec

Anonymous
Not applicable
Hi Master Script
Very good to know it.
Can you look on my request with hole labeling? see at link
http://archicad-talk.graphisoft.com/viewtopic.php?p=151641&highlight=#151641

Anonymous
Not applicable
Hi Sigitas,

Thanks for your entry. At the end of the month I will decide which object I am going to make.

BTW what do you use for your opening? I need them to get the right parameters.

Anonymous
Not applicable
Hi Master Script
for holes in wall i use windows > openings > W round openings or W rectangular openings. I little modificed them, they drawing the special symbol on plan. For information using element label.
In label is presented WH and level of center of round hole and bottom of rectangular hole with entered text "alt."

In general we missing the hole symbol and label.
the expl. see
http://archicad-talk.graphisoft.com/viewtopic.php?p=151641&highlight=#151641

Anonymous
Not applicable
As I have promised, I will build a free custom object each month. The first object I am going to build is a sea container requested by PHSantos from Portugal.

He has asked for a standard size shipping container with standard dimensions. He has send me drawings of a sea container.
PHSantos, I have a few questions:
-can you post a picture of such a container.
-what are you planning to use the container for? Do you wish to use it only for exterior views (3D or elevations) or also on sections?
-How detailed do you want it to be? I don't think you need every bold and screw, that won't be realistic?
-the sea container you have send me has the dimensions (width x length x height) 8' x 40' x 9'6". Is this the only size?

Meanwhile you can all post new requests for next month free custom objects here.

Anonymous
Not applicable
Hi Master Script,

Thank you mate!...I really appreciate your generous offer!

The thing is... I've been doing some research, and I found that there's a lot of architects making pretty good projects using it as a kind of "lego" blocks.

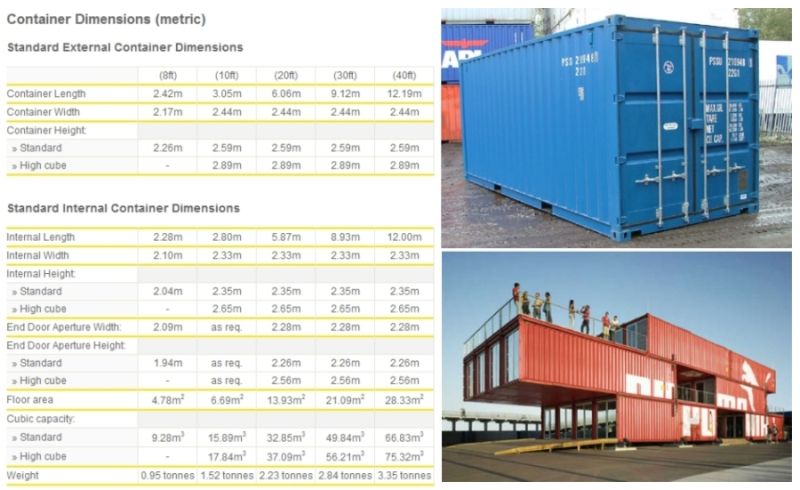

In the picture you can see a single container, a standard dimensions table, as well as a small example of what can be done with this amazing modular structure.

So... IMO, the object would have this parameters:
01. Length standard dimension (2d/3d editable hotspots);
02. Angle Doors opening (2d/3d editable hotspots);
03. On/off Doors (2d/3d editable hotspots);
04. On/off Right wall (2d/3d editable hotspots);
05. On/off Left wall (2d/3d editable hotspots);
06. On/off Rear wall (2d/3d editable hotspots);
07. On/off Roof (2d/3d editable hotspots);
08. On/off Floor (2d/3d editable hotspots);
09. On/off Hardware, namely door pivots and lock;
09. Material Doors (Interior/Exterior);
10. Material Right wall (Interior/Exterior);
11. Material Left wall (Interior/Exterior);
12. Material Rear wall (Interior/Exterior);
13. Material Roof (Interior/Exterior);
14. Material Floor (Interior/Exterior);

Regarding the level of detail:
- It doesn't need to represent bold and screws, just the main geometry;
- It would be viewed in 3d/2d/Sections as well in schedules;
- It have to represent all the structural columns and beams;
- Edges may all be sharp;
- The corrugated sheet may appear only in small scales;
- Beams and columns may be hollowed only in small scales;

It also would be:
- A single object with no macros;
- Scale sensitive;
- FPCP (Floor Plan Cut Plan) sensitive;
- Imperial/Metric sensitive;

Ok... I guess its a good start.

Once again, thank you for your great offer! 😉

Anonymous
Not applicable
Now I see your list of parameters, I can understand why you call it a generous offer
Any way, I got some good ideas how to take on this project, I will keep you posted.

Anonymous
Not applicable
Master wrote:
Now I see your list of parameters, I can understand why you call it a generous offer

And I was just warming up.

Now seriously... If you need any help you can count on me.

Anonymous
Not applicable
Just finishing off for today. The dwg Braza send me are inaccurate and also in feet, so I had to rebuild the 2D drawings first.
But I got some good progress doing the trapezoid and corners.

Braze, do you have some more details about the doors and the locks? Another 2D file or description would nice.

Anonymous
Not applicable
Hi Master Script,

Unfortunately those are the only drawings I have.

I tried to find some more on the internet but had no success.

Anyway... it's ok if you use some "creativity" based on the photos.

Looking forward to see the object!

Anonymous
Not applicable
Sorry braza, no news today, I have been creating a zone section label, on which I had my mind for a long time. Now finally someone asked about it, so i decided to create it. You can see the result here.

I am making progress though on the sea container, but I only reserve a hours or so per day to work on it, please be patient.

Anonymous
Not applicable
No prob Master Script. Take your time.

Anonymous
Not applicable
Because the container is build up with different components, each has its own specific needs, I build these elements first.
This is what it looks like when put together.
I already understand it can be high-polygon object, so I create detaillevel controls.
btw, don't mind the colors
progress container.jpg

Anonymous
Not applicable
Its getting better!

Anonymous
Not applicable
I was not satisfied with the way I made the profiled sheet so I did a little side project which you can download here.

Anonymous
Not applicable
Hi Master Script,
Master wrote:
I was not satisfied with the way I made the profiled sheet
Let me guess... You've created a fill and saved it as an object and copy/pasted the code?
This method works fine and is very quick... but the code is not so elegant.

Are you going to use this object as a called macro in the shipping container object?

Anonymous
Not applicable
At first I did copy and paste, but only to get the right dimensions, these feet and inches are killing me
I will use only the code of this macro, but only the parts I need. The container only has straight walls.

Anonymous
Not applicable
Perhaps I'm missing something...

But, Why don't you use the "change size" tool?

1.Select one line in the drawing that has a feet dimension;
2.Draw another line over it with the metric correspondence;
3.Select all the drawing;
4.Use the "Change size" tool with a graphical method;
5.Select the first and last node of the line in feet dimension and then stretch it to the metric line end.

I alway do this to convert drawings in imperial units.

Anonymous
Not applicable
I am sort of doing that, but the problem is that the 2D drawing is inaccurate. At first I did the resizing, but then I noticed that sections and elevations did not align properly. Also 2 lines never intersect in a corner.

I first have to draw the lines according to the dimension, which is set in feet. So I have to set the working units to feet and inches. Then when I save an object I would rather have millimeter, so I set it back.

Anyways, I am progressing
