Got stuck on a stair railing?

Mats_Knutsson
Advisor
Hi,

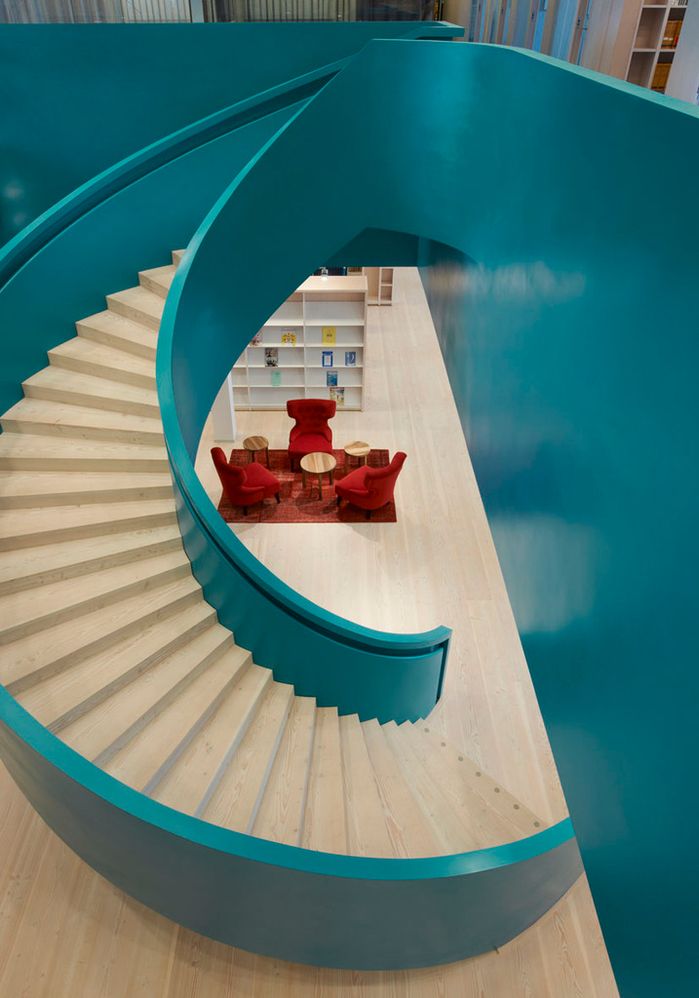

My out-of-the-box thinking didn't work good enough to recrete this railing. I got as far as the solid part with the built in stair tool. However the groove for the hand got me. I tried to morph it. I tried a complex profile but couldn't ramp it up properly.
Is it doable or do I need Objective? What do you think?
Cheers,
Mats
AC 25 SWE Full

HP Zbook Fury 15,6 G8. 32 GB RAM. Nvidia RTX A3000.
4 REPLIES 4

Erwin Edel
Virtuoso
Have you tried the solid railing object? https://bimcomponents.com/GSM/Details/10444

Use more than one and with solid element operators remove the parts you don't need.
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5

Mats_Knutsson
Advisor
Erwin wrote:
Have you tried the solid railing object? https://bimcomponents.com/GSM/Details/10444

Use more than one and with solid element operators remove the parts you don't need.
Thanks a lot Erwin,

I didn't know about that railing object. Those I had in my libary were to crude.
Now it's a walk in the park...I did one solid ralinig, duplicated ut and adjusted the heigt. Morphed the copey and changed the end shape and finally a SEo...and voila.
AC 25 SWE Full

HP Zbook Fury 15,6 G8. 32 GB RAM. Nvidia RTX A3000.

Anonymous
Not applicable
For the groove you can use the Railing object "Rail Simple Bar 16" (SEO with the solid railing).

Mats_Knutsson
Advisor
I discovered it's not easy to align the railing with the stair. It'll be a good enough solution...not the tidiest. I think I have to give it to our 3DSMax guys if I want it visually perfect.
AC 25 SWE Full

HP Zbook Fury 15,6 G8. 32 GB RAM. Nvidia RTX A3000.
