just can't create stairs the way I want

Ivan Piljek
Participant

I'm having problem making stairs in AC 25, just can't create stairs the way I want, can anyone help.

Ivan Piljek,
7 REPLIES 7
ryejuan
Advisor

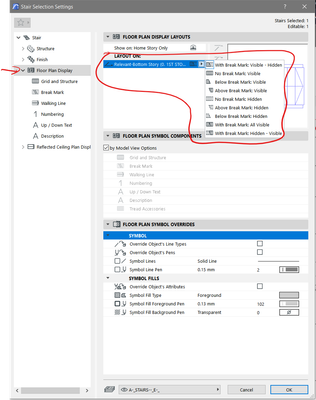

go to your stair settings then can modify the following.




In the end what is your Objective?
ArchiCAD 9 onwards

My problem is not floor plan display of stairs but physical design.

Ivan Piljek,
vistasp
Advisor

Have a look at this short video to see how you can get what you want, Ivan.

= v i s t a s p =
bT Square Peg
https://archicadstuff.blogspot.com
https://www.btsquarepeg.com
| AC 9-27 INT | Win11 | Ryzen 5700 | 32 GB | RTX 3050 |

Hi, thank you for advice but I just can't get this one the way I want it, it seams like this stairs has it own will.

Ivan Piljek,

That's a very tight stair you have there. Have you tried adjusting the rules? I got close, but not exact. The right end extends by about 37mm beyond the 1050.



Edit: that seems to be the riser thickness.


However, is only in 2D. When you look at it in 3D, the winders have some strange protrusions on the inner side, and I have no idea how to get rid of those.

= v i s t a s p =
bT Square Peg
https://archicadstuff.blogspot.com
https://www.btsquarepeg.com
| AC 9-27 INT | Win11 | Ryzen 5700 | 32 GB | RTX 3050 |

Honestly, the stair tool kinda sux. I mean I like the idea but would like to have the legacy option at my disposal as well, as sometimes it can be very frustrating to make a stair with the new tool, especially if you want some exact design. I myself have several times resorted in those special cases to modelling the stair using other methods, riser by riser, rather than messing with the needlessly complicated stair tool. But it's serviceable for a quick stair while making a study I suppose.

From Archicad 8.5 all the way to the present.
Passionate Autocad hater as well.
Wish to save palets and menus individualy in work enviroments:
https://bit.ly/3pg3Bx7
ryejuan
Advisor

I agree with you @Jan Vlach there are limitations with what the stairs can do don't get me started with stringers. it doesn't allow you to do certain things need to like do parts by parts to get the look that you want. 😐

In the end what is your Objective?
ArchiCAD 9 onwards
