Scheduling Doors by Zone

Craig Boyer
Graphisoft
Graphisoft

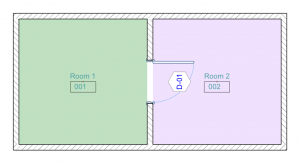

ARCHICAD allows users to schedule their doors by zone. Please follow the steps below to learn how to setup a door schedule and how to change the zone a door belongs to.

Create a Door Schedule

In this example we will only be setting up a schedule that includes the door ID, zone name and zone number it belongs to. In real world applications you would add many more parameters.

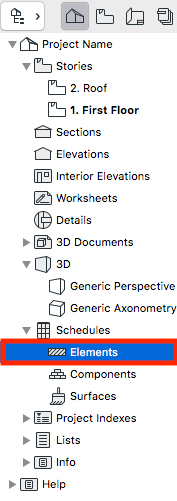

  1. In the Project Map section of the Navigator, right click on Elements and select New Schedule...

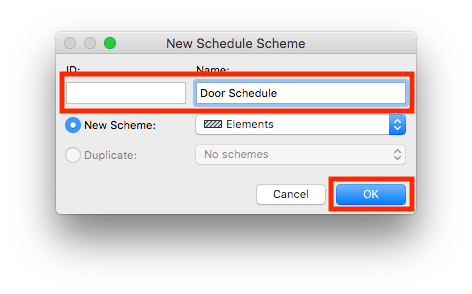

  1. In the New Schedule Scheme dialogue box, name the schedule and click OK.

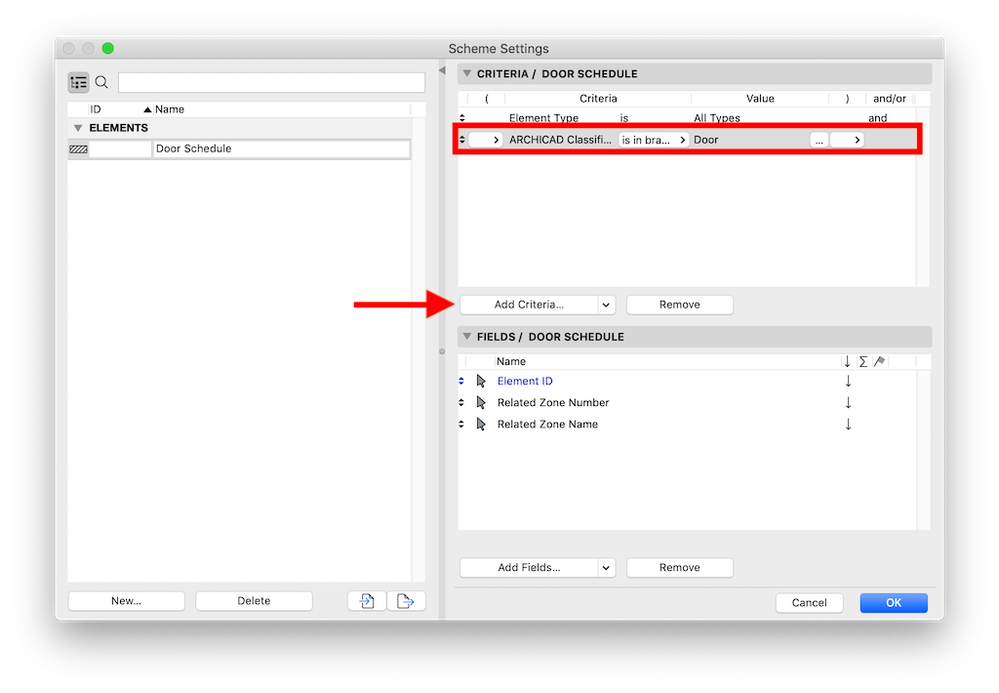

  1. In the Scheme Settings dialogue box, click the Add Criteria... button and make sure ARCHICAD Classification is Door.

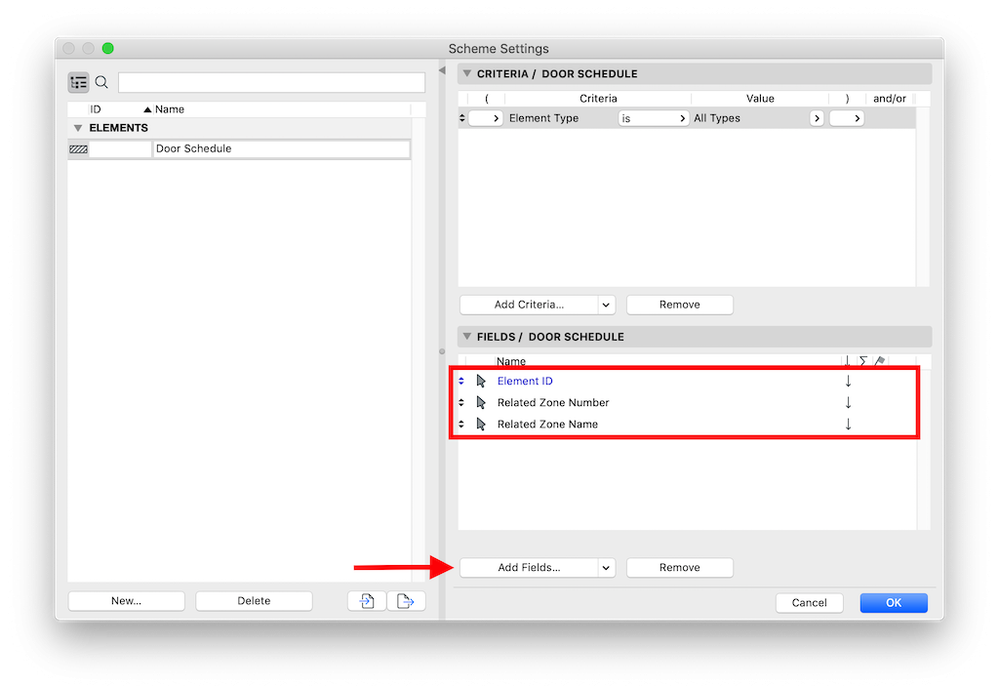

  1. Click the Add Fields... button and add Element ID, Related Zone Number, and Related Zone Name.
Note: You can always add other fields.
  1. Click OK.
Double click on the schedule in the Project Map to open it.

Changing the Zone that the Door Belongs to

Follow the steps below to change the zone that the door belongs to.

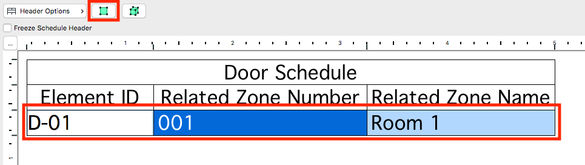

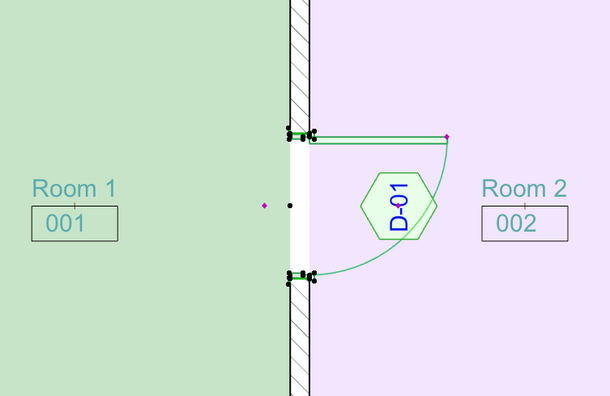

  1. Select the door you wish to assign to a different zone and click the select element in plan button.

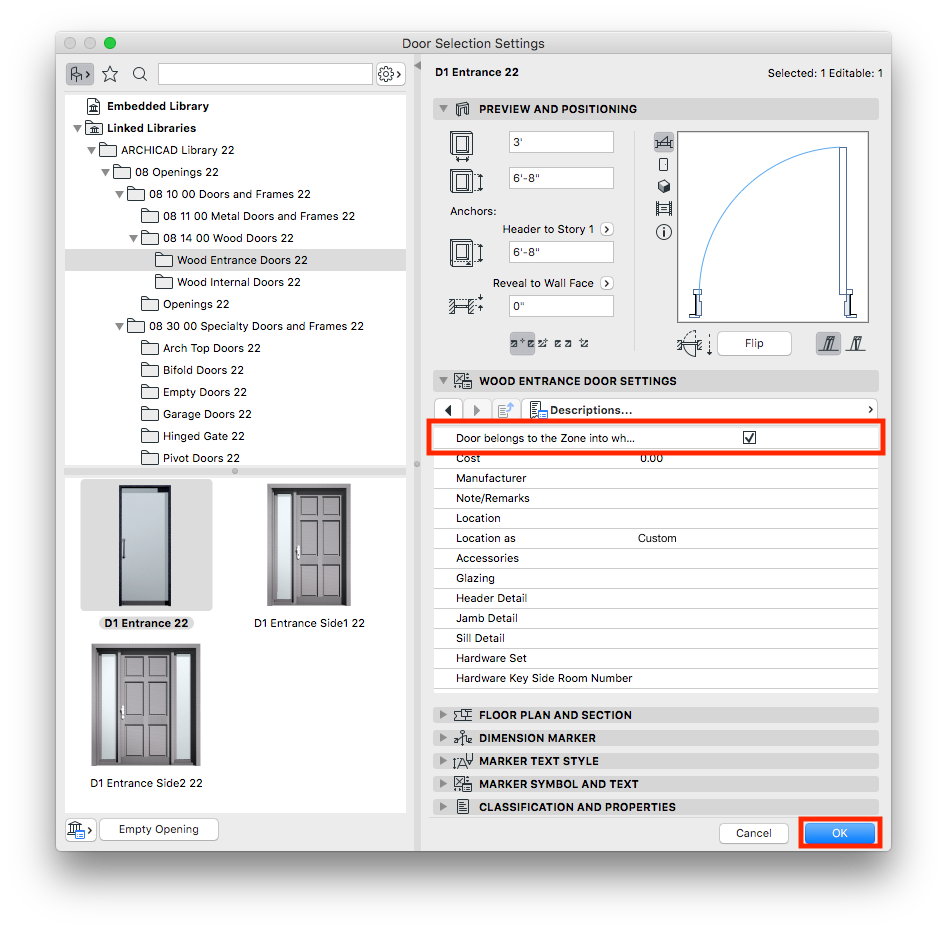

  1. With the door selected, open the Door Selection Settings dialogue box.
  2. Under the Door Settings tab, navigate to the Descriptions... section, check the box next to Door belongs to the zone... and click OK.
  1. Open the schedule to verify the change.
