Adjust Cutting Plane Height to Cut Second Floor Windows bldgs.

Gisele
Advocate




The windows are showing on the right-side bldg., but not the left side one even though the windows have the same height.

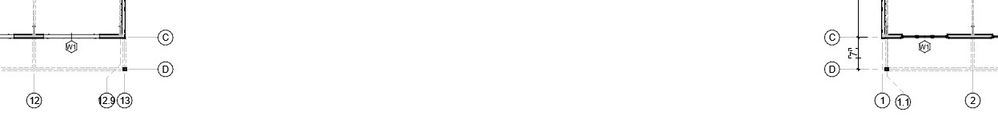

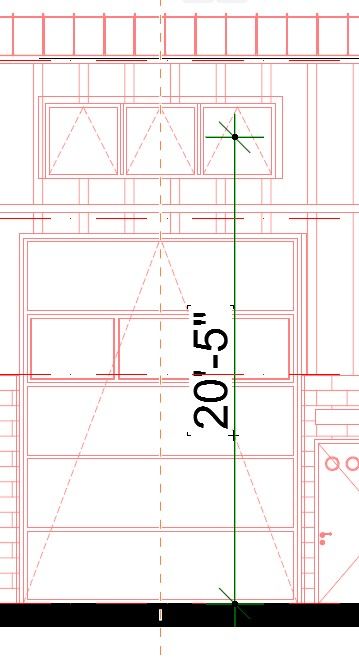

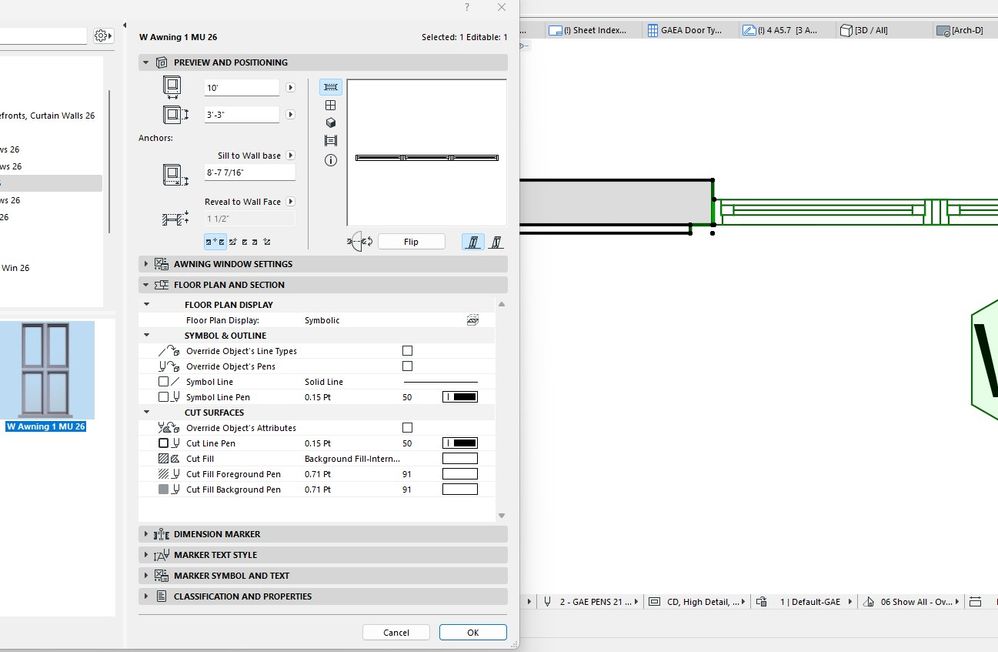

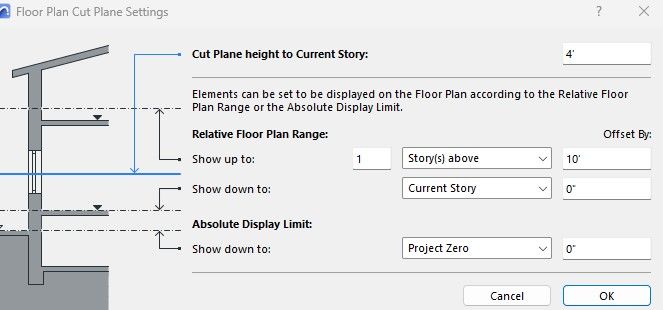

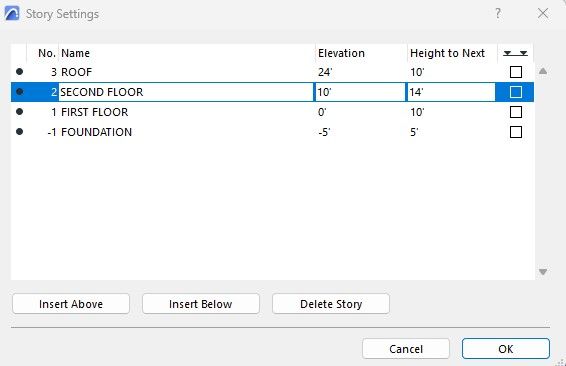

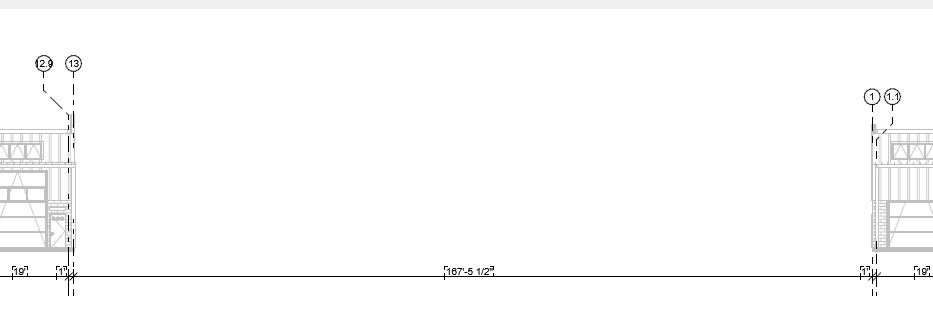

Attached are screenshots showing the project's Story Settings, the View Settings, the plans, the window elevation height, and both windows in elevation.     Any idea on how to address this?




AC 26 - 5002 USA FULL
Win11 Pro 22H2 - 13th Gen Intel(R) Core(TM) i9-13900KF 3.00 GHz - 64 GB - 64-bit operating system, x64-based processor
2 REPLIES 2
Lingwisyer
Guru

Symbolic vs Projected?

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660

Both are symbolic. I used the same window. See attached screenshots.
