Graphic override rules not showing the inside face of walls when hiding skin seperators in section


I'm trying to setup an override rule for my section views however for whatever reason when I hide skin separators I'm getting graphical errors where the outline is only shown for outside face of the wall. This does not happen in plan view. I have attached views of the wall with & without the setting turned on, in addition to what it looks like in plan view as well as my wall composite settings. Note - without any overrides the walls are displaying correctly

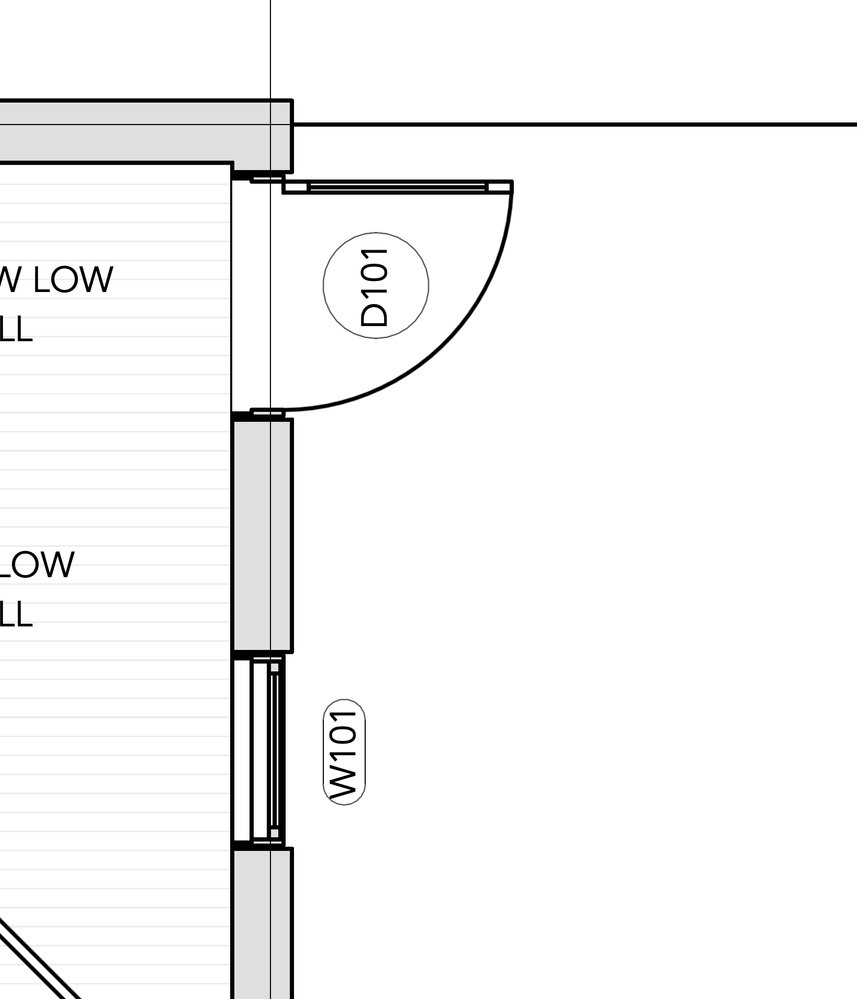

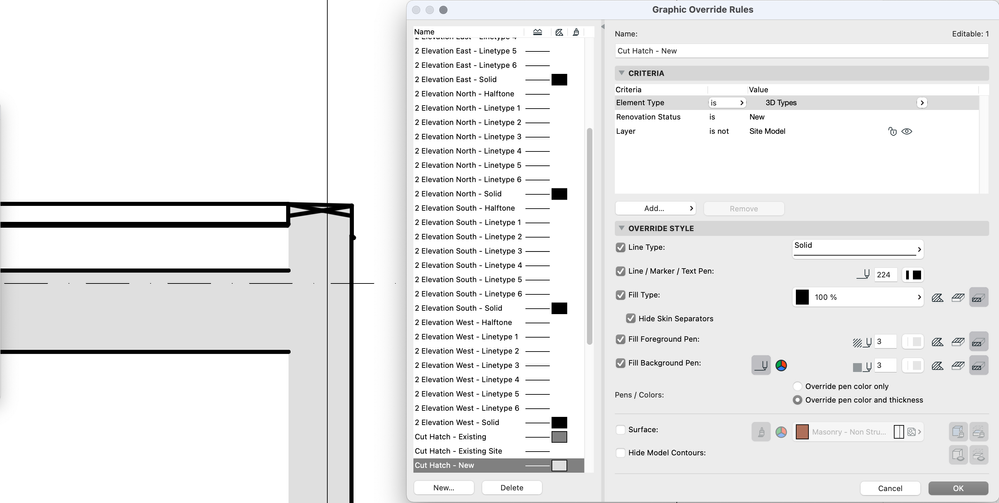

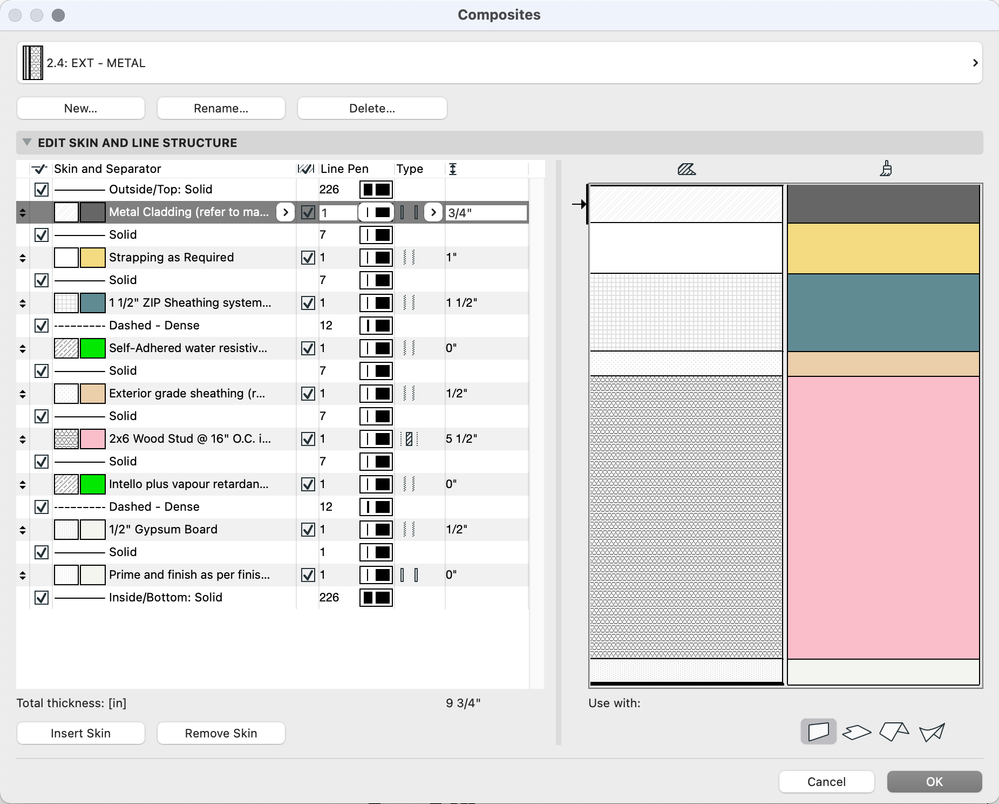

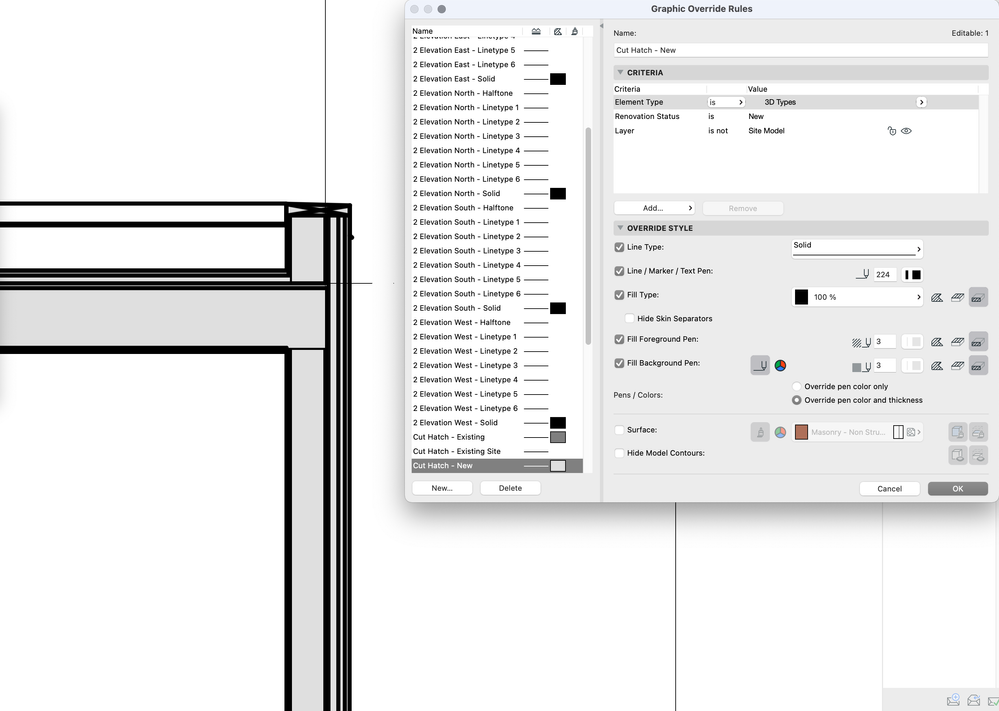

Section - Hide Skin Separator onSection - Hide Skin Separator onSection - Hide Skin Separator offSection - Hide Skin Separator offPlan - Hide Skin Separator onPlan - Hide Skin Separator onWall composite settingsWall composite settings
