SECTION LINE & GRID ELEMENTS

Gisele
Enthusiast

Why are the level marking + grid elements not consistent in the sections? I have the same scale for both attached sections, but the level marking + grid elements in section 4 have a larger size than in Section 3

AC 26 - 5002 USA FULL
Win11 Pro | 12th Gen Intel (R) Core (TM) i7-12700F | 2.1 GHz | 16GB | 64-bit x 64-based processor>
1 ACCEPTED SOLUTION
2 REPLIES 2

Solution
BrunoH
Expert

Is the image a screenshot of a layout ?

If so it's certainly that the views the drawings are generate from are not at the same scale.

I think so because the cotation text and the story level markers are also smaller in section 3 than in section 4 with the same scale difference.

The scale of a drawing place on a layout can be different from the source view.

For example a drawing scale can be 1/100 and the source 1/50 ending as the equivalent as a photo copy reduction of 1/2.

Check the to drawings options and compare the drawing and source scale for each.

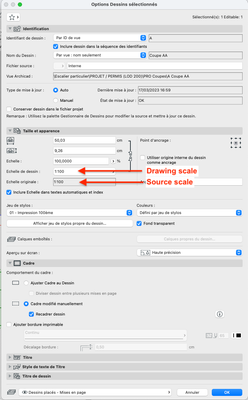

Drawing Scale.png

ArchiCad 3.43 to 26
MacOS Monterey

Gisele
Enthusiast

Thank you!

AC 26 - 5002 USA FULL
Win11 Pro | 12th Gen Intel (R) Core (TM) i7-12700F | 2.1 GHz | 16GB | 64-bit x 64-based processor>
