Stair line weight

2raarchitecture
Booster

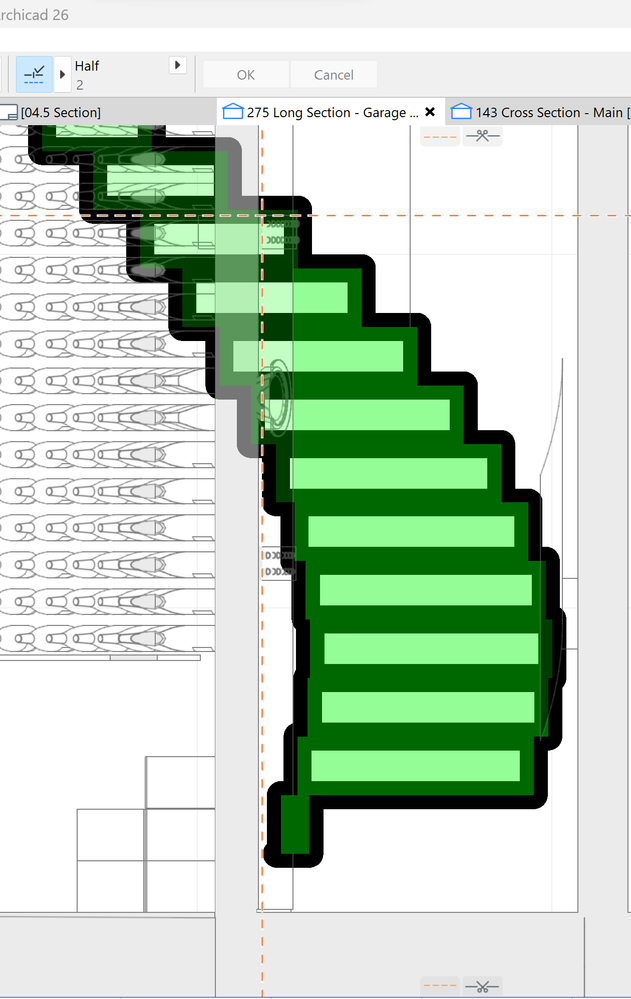

Those very thick lines should be narrow lines and I have tried everything. Will you please, share some insight? Thank you! Images are attached. I have the same trouble on handrails.

2RA Building Workshop
www.2rabldgworkshop.com

11th Gen Intel(R) Core(TM) i7-11800H @ 2.30GHz. 16.0 GB. NVIDIA GeForce RTX 3060 Laptop GPU.
ArchiCAD 25. 5002 USA Full
2 REPLIES 2

David Maudlin
Virtuoso

2raarchitecture:



For the 3D pen settings, look at the Finish > Tread and Flight panels. The panel in your screen shot is for the plan display.



David

David Maudlin / Architect

www.davidmaudlin.com

Digital Architecture

AC26 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.15.7

Thank you kindly for your reply. The solution was to change the model view options for both railings and stairs to full instead of simplified. Please, see attached.

2RA Building Workshop
www.2rabldgworkshop.com

11th Gen Intel(R) Core(TM) i7-11800H @ 2.30GHz. 16.0 GB. NVIDIA GeForce RTX 3060 Laptop GPU.
ArchiCAD 25. 5002 USA Full
