SOLVED!

i cannot use the wall end tool - what is the syntax for using it?

proto
Advocate

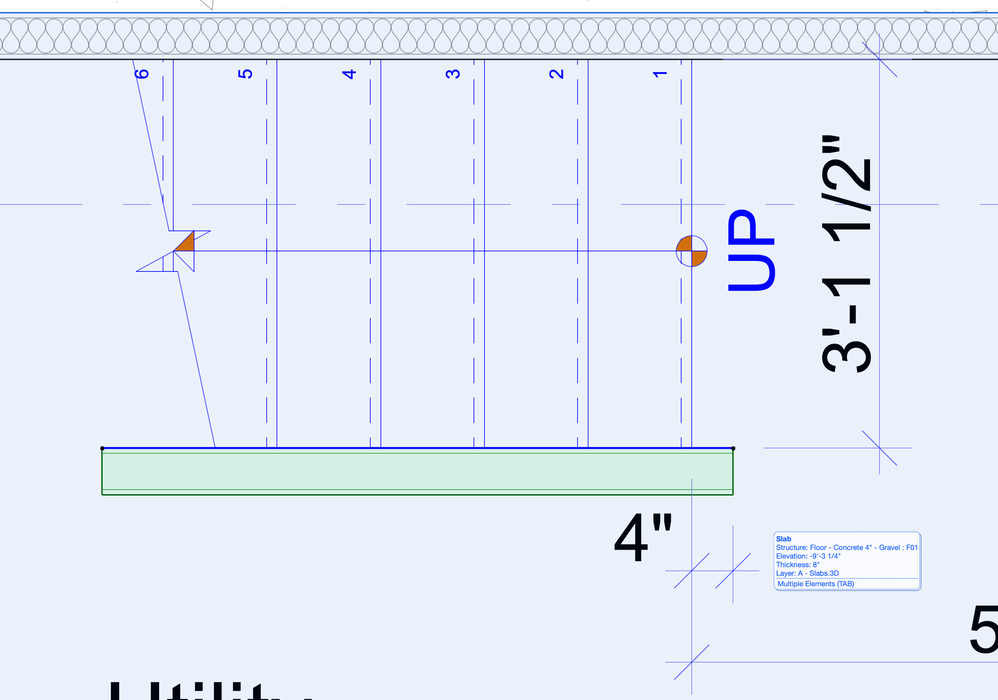

for the life of me, I cannot use the wall end tool

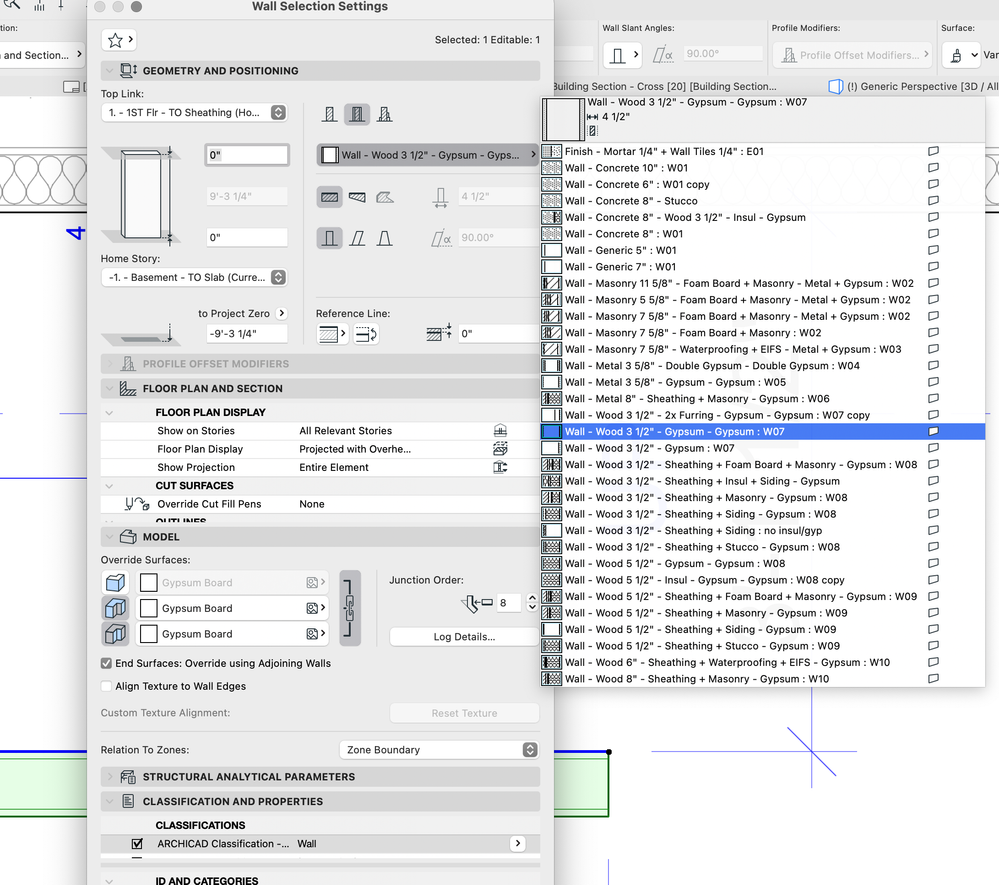

i just want to cap the end of a simple drywall partition [3.5" stud + 1/2" drywall both sides]

what is the correct way to use this tool?



the cursor doesn't seem to react to the end of the wall at all




mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
DGSketcher
Legend

You need to click exactly on the outside corners or the end of the base / reference line for the wall end to work.

You cannot add a wall end to a wall on a locked layer.

I know this doesn't apply in your case, but for the benefit of others, you cannot add a wall end to a COMPLEX profile.

Apple iMac Intel i9 / macOS Sonoma / AC27UKI (most recent builds.. if they work)

View solution in original post

14 REPLIES 14
proto
Advocate

To add to this, I want to shape the wall as its bottom edge wants to follow the bottom edge of the stair as it rises. Hopefully, SEO operation doesn't affect the wall end cap condition...

mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro
Qualifa
Booster

Proud member of UNION.ARCHI Network

@Qualifa i just see "video unavailable"

mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro

Yes, thanks for pointing that out, I got caught up in the copyright with the music. 😬

Proud member of UNION.ARCHI Network

i see the vid now, thank you for posting

i'm not able to replicate that



i have tried on several walls placed out into space to isolate them. i've messed with the settings.

it's as if there's a persistent setting that is preventing this operation

mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro

Have you been able to do a wall lock before? Try my option exclusively, there are a minimum of parameters.

Proud member of UNION.ARCHI Network

I ended up writing a wall covering for a framing sheet rock sheeting and baseboard so that I don't have to fight those I have more freedom with my models and so I can wrap wall ends lol

Posts also work well other than not being linked to the wall for wall ends

No idea what a wall lock is

mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro
