How to Lock/Unlock Elements in ARCHICAD

Craig Boyer
Graphisoft Alumni
Graphisoft Alumni

Types of Element Locking

  •  Layer - When a layer is locked, all elements on the layer are locked.
  •  Individually - Elements can be individually locked independent from the locking status of their layer.

How to Identify Locked Elements

  1. Locked elements cannot be modified (moved, deleted, resized, etc.) in any way.

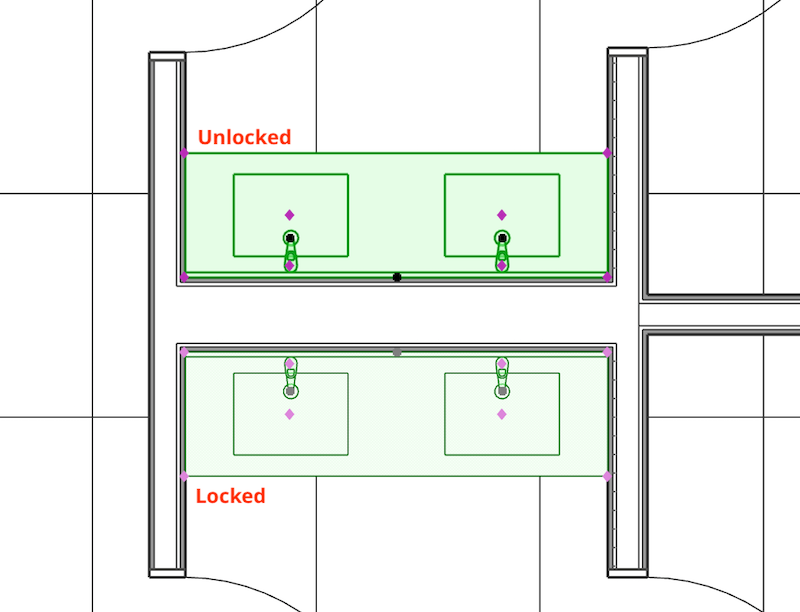

  2. When selected, a locked elements' hotspots and overall appearance will appear ghosted compared to unlocked element.

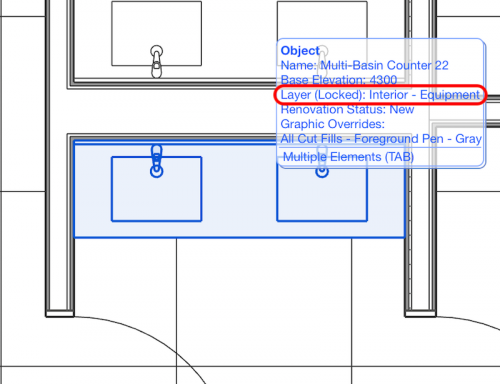

  1. When hovering over an element, the information dialogue will indicate whether the element or the elements' layer is locked.

How Elements Become Locked

  • Predefined Layer Combinations - Office templates can be setup in a way where certain layer combinations lock and/or hide layers. Doing so prevents elements from being placed on the wrong layers or existing elements from being unintentionally modified.
  • Intentionally - Users may intentionally lock certain elements to prevent them from being accidentally modified.
  • MEP Add-on Use - Whenever someone using the MEP Add-on joins a project, all objects with an MEP component become locked and only accessible to the user with the MEP Add-on.

How to Unlock Locked Elements

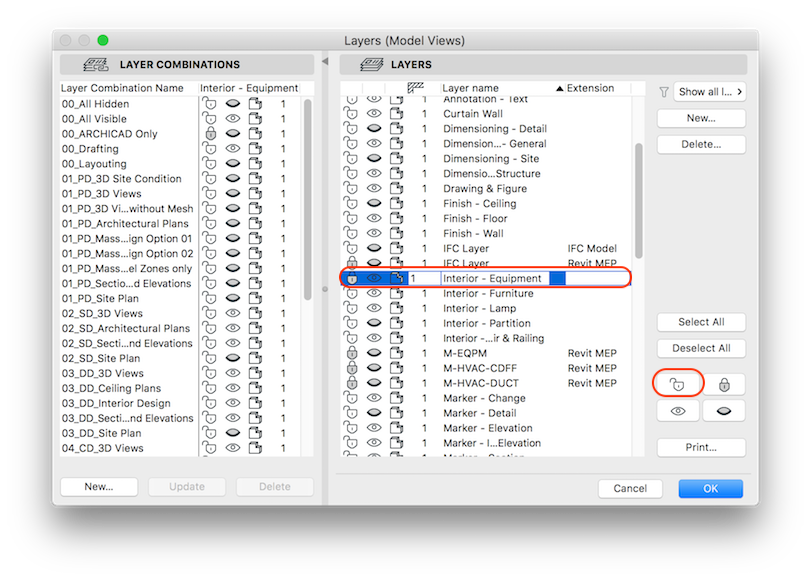

Layer - Open the Layers dialogue box and click the unlock button.
Individually - Select the locked element and go to Edit > Locking > Unlock.
Comments
Eric Milberger
Enthusiast

I appreciate this article BUT IT DOES NOT SAY HOW TO LOCK OR ULOCK and element.

I want to lock an element but not the layer

Karl Ottenstein
Moderator

@Eric Milberger It kind of does say how.  Very end of article, "Edit > Locking > Unlock" to unlock a locked element...  "Lock" from that menu ("Edit > Locking") would lock selected elements.

This article was not intended as a substitute for the Help files/manual which give details on both kinds of locking.  It is meant to distinguish between the two kinds 🙂

(For layer locking/unlocking you can also use the context menu when an element is selected without having to find the layer in the layer settings dialog.)
