MEP visualization on section & elevation

Anneen_Esterhuizen
Newcomer

‎2022-02-01 11:58 AM - last edited on ‎2025-01-02 03:12 PM by Graphisoft

‎2022-02-01 11:58 AM

When  working with MEP add-on application, I experience a challenge that pipe bends on 110mm pipes does not show the curved part in elevation. all the visualization options are set to show line weights, and do show the curved line for the smaller pipe bends, but not the 110mm.

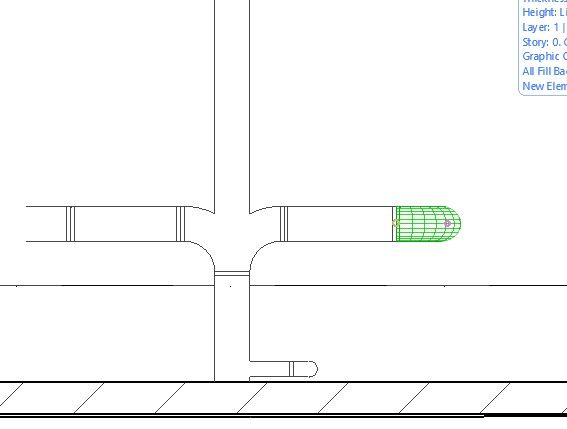

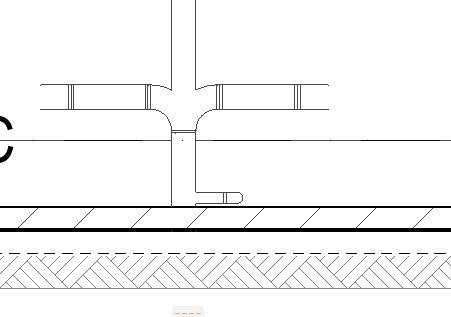

Attached are the scenarios in question
