I'm testing the facade-tool (curtain wall) and can't fix some points:

- 2D-opening line of a window in the floor plan

- the window don't know the relation to the room, it takes the relation from the hole curtain wall

Some ideas to fix that?

3 REPLIES 3
Laszlo Nagy
Community Admin
Community Admin

Can you show some screenshots of the exact situation?

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27

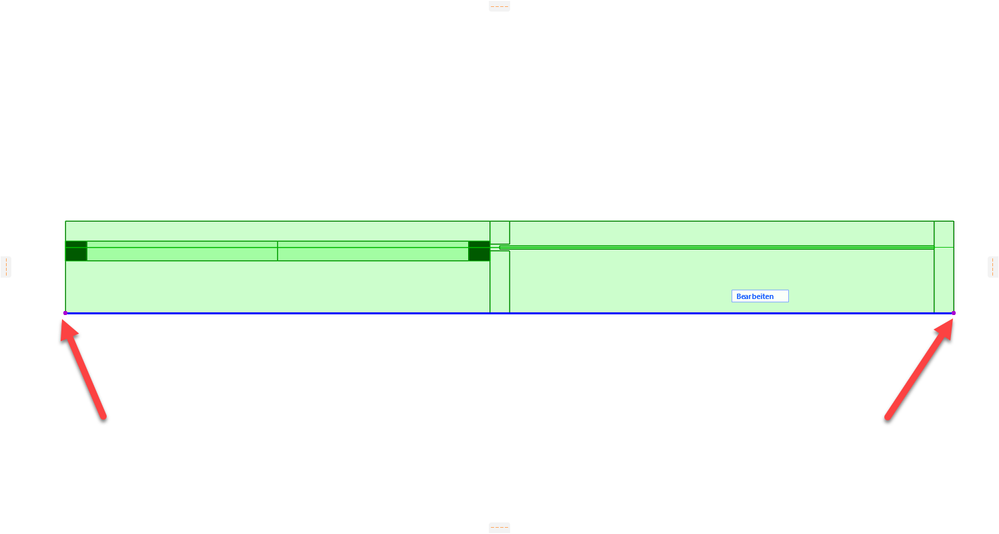

gs-model: showing situation in the model

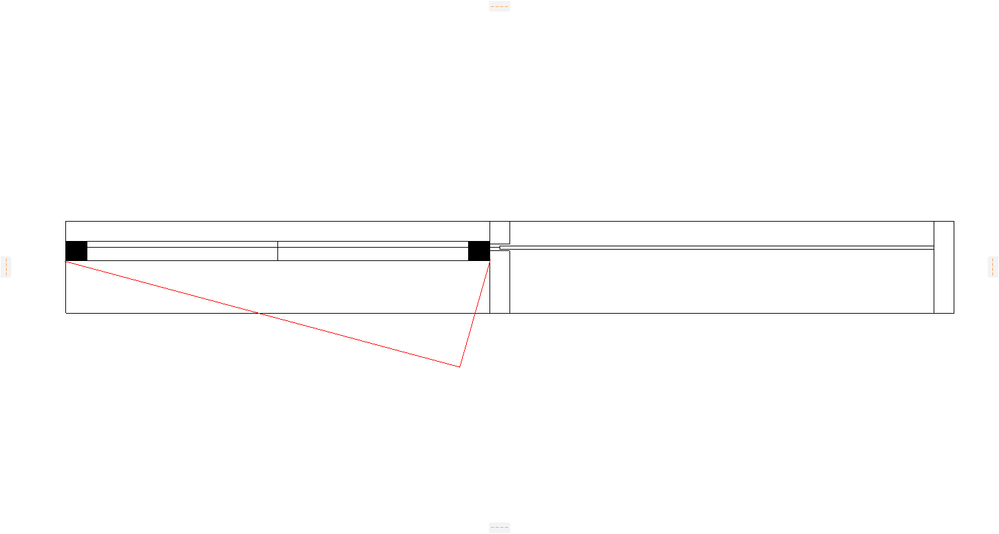

gs-floor: which line we want to see in the floor plan (opening line of the window)

gs-fixpoint: no intelligent measure possible for the columns inside the facade, because there are no fixpoints, only at the end of the facade

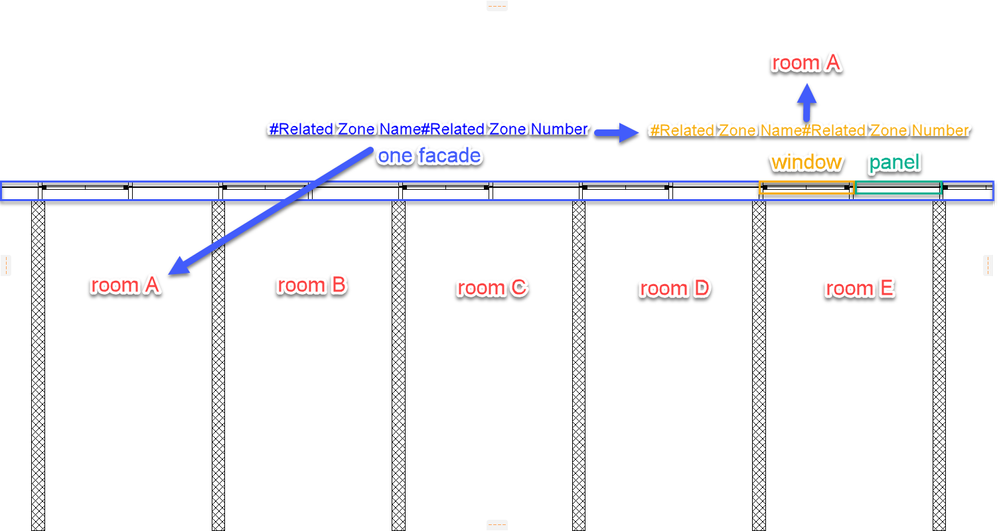

gs-related zone: If you've a facade and inside many zones, the window doesn't know the related zone, it take one zone for every element.



Thank you for your support;)


gs-model.pnggs-floor.pnggs-fixpoint.pnggs-related zone.png

the related zone is working now, have a look at this video

https://www.youtube.com/watch?v=s9k_QLDyEJg
