Cut Corner off Complex Profile Ceiling

henrysaxby
Contributor

Hi everyone,

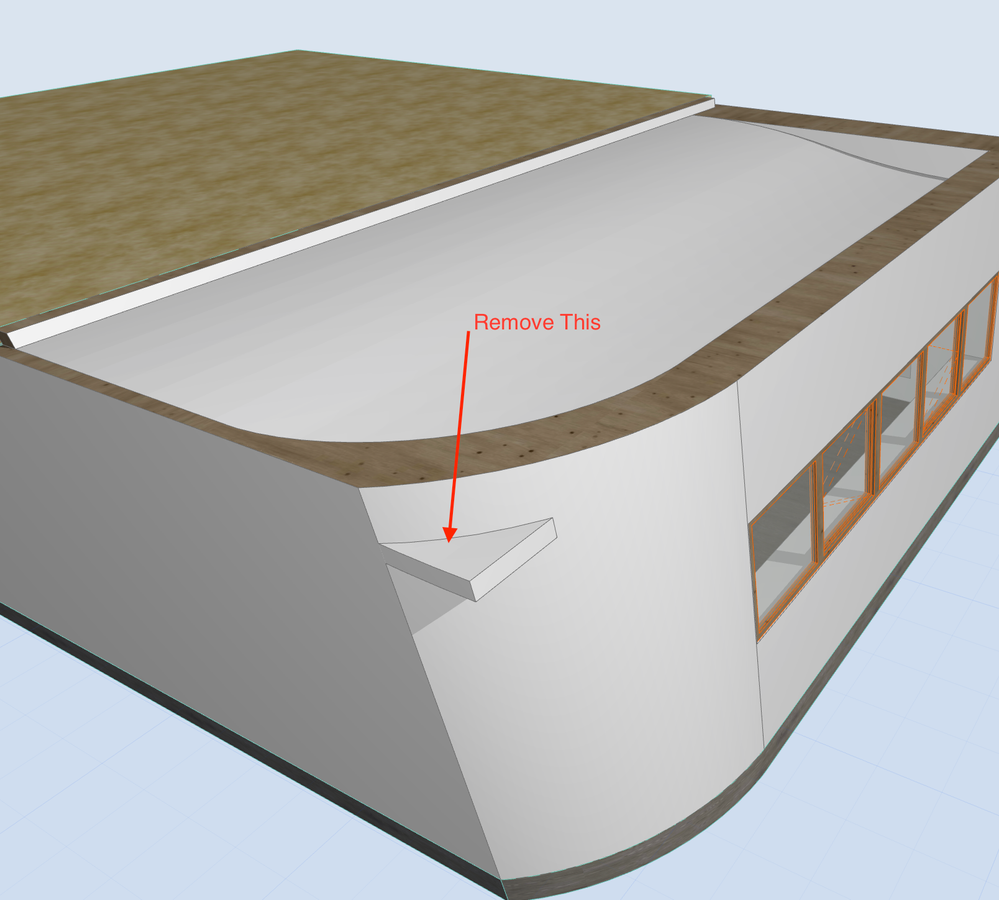

 I'm making a CAD model of a school building that has a lot of curves (this is just the beginning!) I have a ceiling that has a gently curve created using Complex Profiles, but it intersects with a curved wall. I would like to remove the section of the complex profile ceiling that sits outside the room, but I can't figure out how to do it. Any suggestions?



 Thanks in advance!


Screen Shot 2022-12-17 at 3.28.02 pm.png
2 ACCEPTED SOLUTIONS

Accepted Solutions
Solution
Rajesh Patil
Expert

This could be one possibility but could be suitable for visual comfort. In future while editing the elements you have to be alert.

2022-12-17 (1).png

2022-12-17 (2).png

Rajesh Patil
AC 09-27 | INT | WIN11 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB

View solution in original post

Solution
Hmooslechner
Rockstar

You could use a shell instead of a profile - its bendable for some cases like this. Shells can be edited (cutout holes and borders)) in the groundfloor-view (top-view when rotated) and can have multi-skins as well.



the other way would be a big enough morph-body for an SEO - command - intersection.



AC5.5-AC27EduAut, PC-Win10, MacbookAirM1, MacbookM1Max, Win-I7+Nvidia

View solution in original post

2 REPLIES 2
Solution
Rajesh Patil
Expert

This could be one possibility but could be suitable for visual comfort. In future while editing the elements you have to be alert.

2022-12-17 (1).png

2022-12-17 (2).png

Rajesh Patil
AC 09-27 | INT | WIN11 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB
Solution
Hmooslechner
Rockstar

You could use a shell instead of a profile - its bendable for some cases like this. Shells can be edited (cutout holes and borders)) in the groundfloor-view (top-view when rotated) and can have multi-skins as well.



the other way would be a big enough morph-body for an SEO - command - intersection.



AC5.5-AC27EduAut, PC-Win10, MacbookAirM1, MacbookM1Max, Win-I7+Nvidia
