Howto - spiral stair with center column?

Mats_Knutsson
Advisor

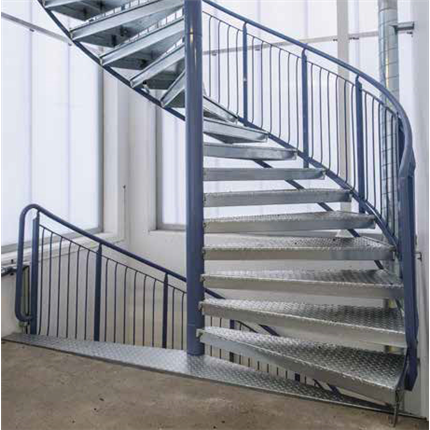

Like any Weland fire escape stair for example...
How do we do it with 21?
Cheers,
Mats

AC 25 SWE Full

HP Zbook Fury 15,6 G8. 32 GB RAM. Nvidia RTX A3000.
3 REPLIES 3
Dontknow
Enthusiast
I once made a spiral stair out off morphs with a handrail (spiral) from the library.

Architectural construction designer, draftsman, modeller
ArchiCAD 25.
Barry Kelly
Moderator
I just watched an interesting video by Eric Bobrow the other day where he made a custom spiral staircase.

https://www.youtube.com/watch?v=IRttsLcWtD8

Using non-custom components will be a bit easier.
It really is as easy as getting the settings you want then placing a stair using one of the arc options in the pet palette.

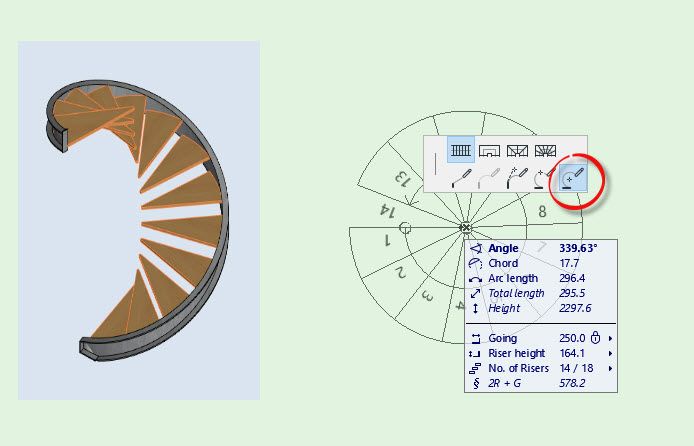

A couple of clicks and I had this (no centre post - that is just a column).

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Barry Kelly
Moderator
I also just found this.

https://helpcenter.graphisoft.com/tips/archicad/modelling/stair-tool-basics-spiral-stair/

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
