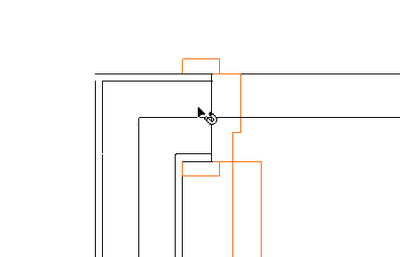

I'm trying to get rid of this line.

LeeJaeYoung
Virtuoso

\










I'm trying to get rid of this line.
What should I do?








AC27 on window 11
9 REPLIES 9
Lingwisyer
Guru

Are your two walls connecting correctly? If you move the door away, is it still there?





Ling.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660
LeeJaeYoung
Virtuoso







It was because of the casing.
The problem is the fact that the casing doesn't have to be offset from the wall.






AC27 on window 11

The reason for doing this is to test when the finish and structural wall are separated like REVIT.

AC27 on window 11

The walls are well connected and disappear when you move the door.

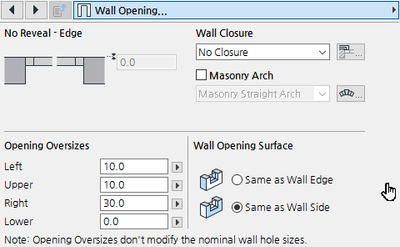

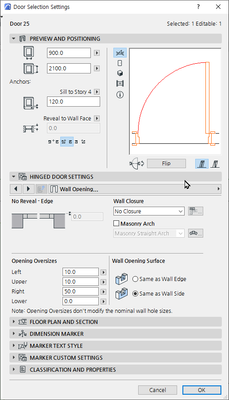

This phenomenon occurred after specifying oversize 40.

AC27 on window 11

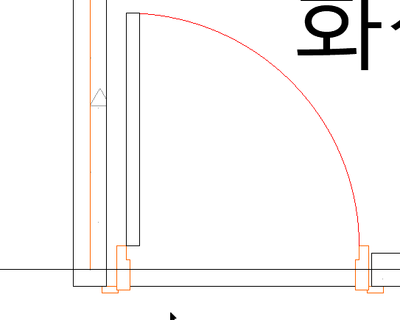

Can't you erase that thick line?

AC27 on window 11
Lingwisyer
Guru

You would need to look into how the oversize is drawn in GDL...

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

Do you mean that you can't get rid of that line in the normal way and you have to create a new GDL?

AC27 on window 11

I do not know what object you are using, nor do I know how said object is drawing that line and what settings maybe available to the user regarding said line...

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660




The casing is an issue with oversize.

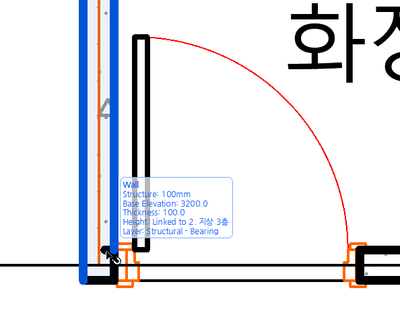

I handle the wall as send back.
Sometimes it doesn't.

AC27 on window 11
