Modeling
About Archicad's design tools, element connections, modeling concepts, etc.

I want to show the beam as Hidden. Why does it vary with height?

LeeJaeYoung
Virtuoso

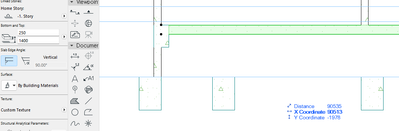

1. section


   plan


2.section


plan








AC27 on window 11
1 REPLY 1
LeeJaeYoung
Virtuoso

As I studied, I learned that I had to come within the cut height.


1000  => 3000

Changed from 1000 to 3000.
I found out that it only works if the slab is within the cut height.

AC27 on window 11
