Insulation in Complex profiled wall

How should I take this?













AC25 5010 / AC26 4019 on window 11
10 REPLIES 10

Gerry Leonor
Advisor

try setting the fill orientation of the insulation material to "Fit to Skin"




AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our unofficial Discord server
https://discord.gg/XGHjyvutt8

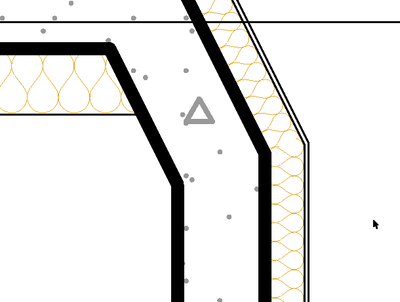

This building material is set to fit to skin.

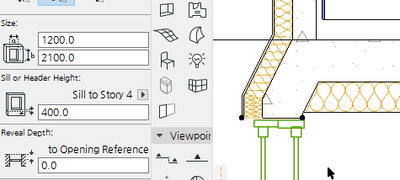

this sill height 400


sill height 350






this material

AC25 5010 / AC26 4019 on window 11

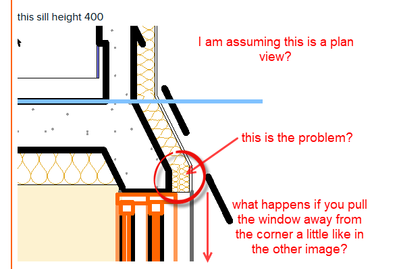

Is it because the window it tuck right up into the corner of the wall?






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

1. May I ask for an answer? ^^

I'm trying to drill a hole in the railing wall. - Graphisoft Community



2. May I ask for an answer? ^^

I would like to know how to make wallpaper for sch... - Graphisoft Community

AC25 5010 / AC26 4019 on window 11

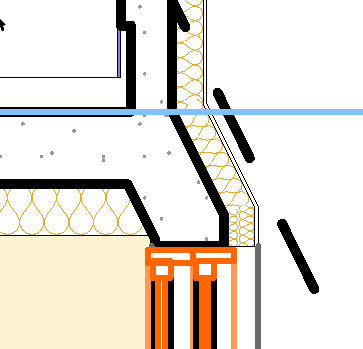

I am sorry. this is section view. and wall is complex profiled wall.

AC25 5010 / AC26 4019 on window 11

OK, so if you drop the window down a little, does it look correct as in your other image?

If so all I can assume it is because the top of the window is corrupting the fill somehow because of the top being tucked into the angle.



If there is no difference then why does the other image look correct?

What is different?

It is very hard to say just looking at images.



Barry.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11







AC25 5010 / AC26 4019 on window 11

So it seems to be the height of the window is corrupting the fill in section.

I don't know why sorry.
