Intersection of composite roof and and composite wall in section View
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-05-06 10:05 AM
Hello!
I searched the forum for a solution and all I found was a post from 2008.

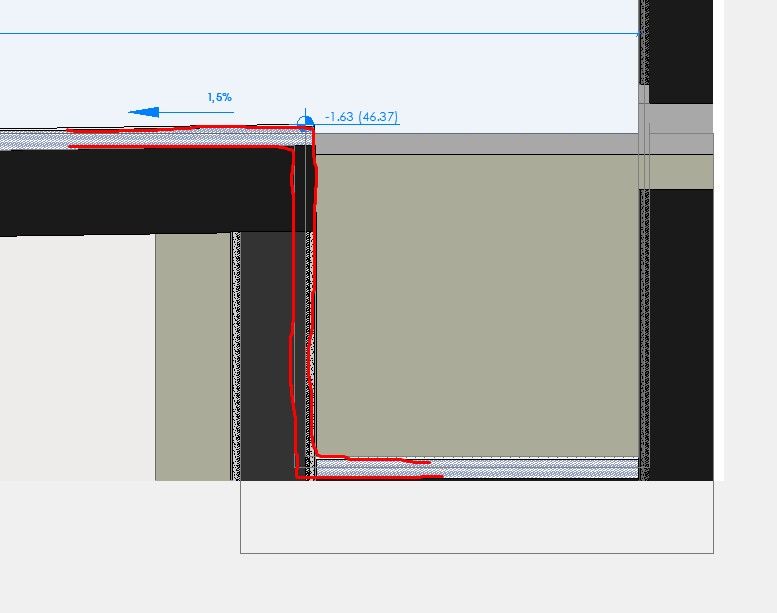

I am trying to get a composite roof to intersect with a composite wall in section view. It's a section of a pool. Should I make the the composite roof a custom profile? Or make everything a custom profile? Thank you so much for your input.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-05-06 06:14 PM
Composite & complex profiled walls are the same when talking about intersections with composite roof, the only way is to adjust building materials intersection priority values to determine which skin to penetrate or stop.
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-05-07 10:05 PM
You could create a parametric profile for that vertical Wall piece and you could define the Profile to be the exact look you want to achieve in section. It may need to be parametric if the distance between the top roof and the bottom connecting structure is not constant.
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac28
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-05-09 12:33 PM
Thank you both for your replies, I will try them!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-05-11 02:54 PM
Hi,

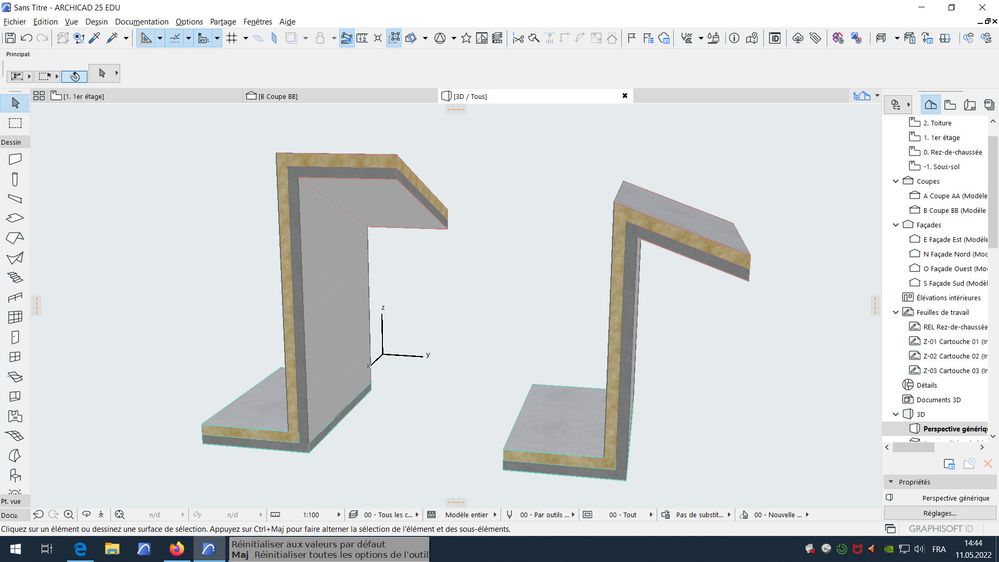

Did you try to connect the wall to the roof with the "Connect / Connect to Roof/Shelf" command.

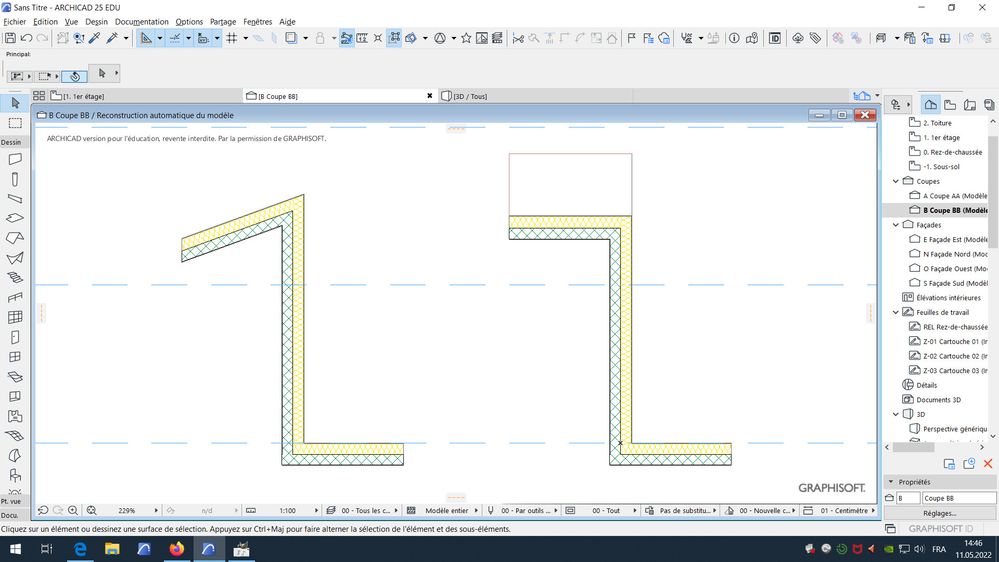

Material's intersection priority will be applied (see attatch)
MacOS Monterey
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2022-05-11 04:26 PM
Thank you so much for taking the time to reply, I will try it!
