Overlapping Mesh Cut Lines in Sections Disappear!

mendezarcediego
Booster
When lines of wall/slab edges overlap with mesh cut lines in sections, both lines disappear. Has anyone ever had a similar problem?

This happens when a wall/slab shares an edge with the mesh or when they share edges because of SEO. When I turn on "True Line Weight Display" it is evident that some mesh cut lines are shown at half with. I have tried rearranging the "Display Order of Elements" Turning on/off graphic overrides.
AC26–5002 INT FULL/ MacOS Monterrey 12.6.3 / iMac Pro (2017) / 3,2 GHz 8-Core Intel Xeon W / 32 GB 2666 MHz DDR4 / Radeon Pro Vega 56 8 GB.
6 REPLIES 6

Anonymous
Not applicable
I have the exact same problem. I've tried all the things you did as well and nothing worked so far.

Anonymous
Not applicable
This had been driving me nuts since I started working on Archicad about three years ago. I only today found an answer. The problem comes from the following:
1. In the Material Editor the cut fill for the Earth defaults to being opaque. Change the setting for the background to transparent and all of your line come back.

Lingwisyer
Hero
From a mesh or FILL. I have occasionally used the fill tool to cover voids under slabs in the model where there would be fill. In this situation, the fill background needs to be opaque. In these cases, I have often ended up manually drawing 2D lines... Not really a solution though...



Ling.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660

KingaW
Contributor

Hello,



It's been a few years later, but I am really struggling with this issue now, especially since it used to work in of my previous templates AND in Version 24.

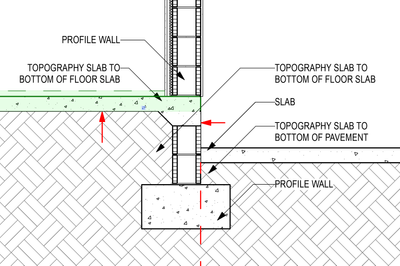

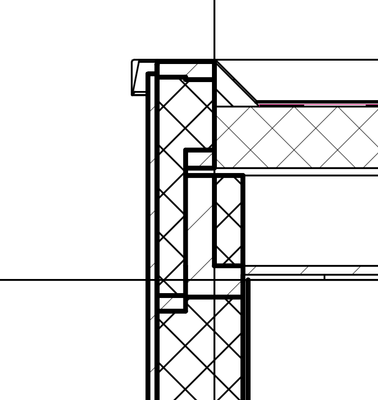

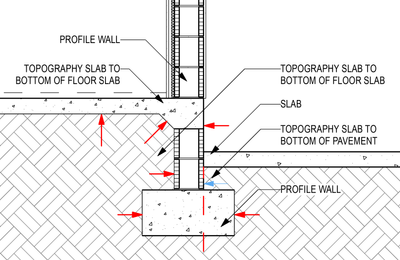

Please see attached screenshots.



In a scenario like this usually we didn't even need to do SEO, just played with the display order.

Now doing SEO makes it even worse.

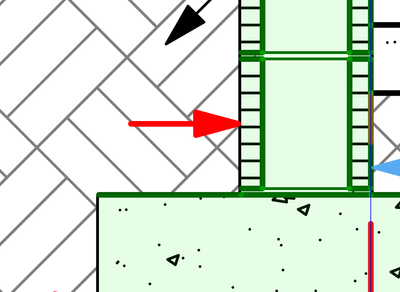

Could somebody shed some light on why those lines won't show up and what is the logic? They seem to happen randomly, why is the one with the blue arrow there?

The elements are not the same building material, they are on not intersecting layers, either.



I recreated this section in my old template and if I select any elements, the lines similarly are missing, however, the touching element's line shows in full, so it is not noticeable and prints perfectly.



Thank you, as always!





6 elements, no SEO.PNG

6 elements, with SEO.PNG




BIM Manager, AC13- , now on 25 USA
Dell i7-8700 CPU @ 3.20GHz, 32 GB
Windows 10 Pro, NVIDIA Quadro P2000
Florida

jl_lt
Mentor

Wow. hadnt encountered or noticed this until today when i was traying to have some sections with just the outlines of the elements without any fill but mantaining the terrain fill, on AC25.   Frustating doesnt begin to describe this. Is there a solution?

Leon_K
Contributor

Same issue. I have a couple of curtain walls stacked together. But the disappearing overlapping lines make the section totally unreadable.





Is there a fix for this? It's obstructing me from producing professional drawings. Thanks.
