Profile walls don't join vertically

Kinzy
Participant

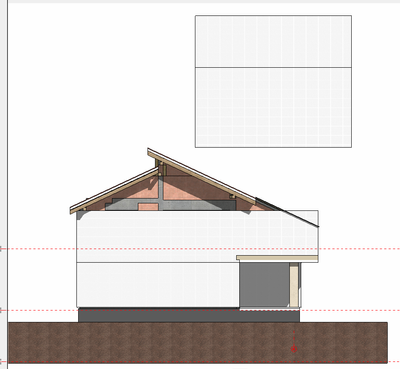

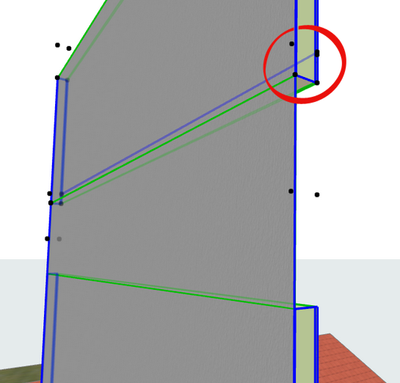

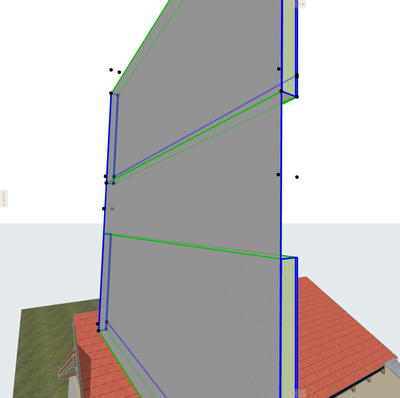

Title basically says it all, I need to have these 2 layers of the complex profile wall joined to have a clean 3D and facade view. I am using complex profiles to model complex layer joinery in some area of the model.







1 ACCEPTED SOLUTION
2 REPLIES 2

Solution
Barry Kelly
Moderator

It looks to me that they are overlapping rather than touching (stacked on top of each other).

Could that be the problem?








Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Kinzy
Participant

That was it, a micro gap, thanks!
