Trouble with elev view line weights

rgarand
Booster
Hello all,

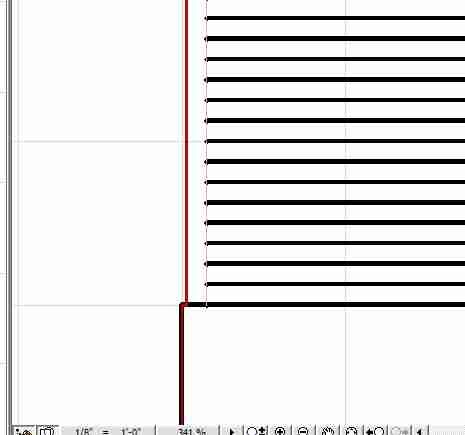

I am having trouble with lineweights in the elevation view. I checked and recheck my lineweight setting within the wall settings/wall composite/material/model pen etc. I still get a heavy line for my siding fill on my elev.

Any thoughts on how to get this to a thin lineweight?

TIA
Robert J. Garand
Dale Gardon Design
ArchiCAD USA 26-Build 4022 USA FULL
Windows 10 Prof (64 bit)
Intel i9-10920X CPU 3.50 GHz (128 GB RAM)
NVIDIA Quadro RTX 5000
4 REPLIES 4

Had this problem, too. Was fixed by going to Options>Materials>3D Hatching and changing the Element Pen for the Siding material. HTH
Richard
--------------------------
Richard Morrison, Architect-Interior Designer
AC25 (since AC6.0), Win10

Link
Graphisoft Partner
Graphisoft Partner
Change the settings of your section marker

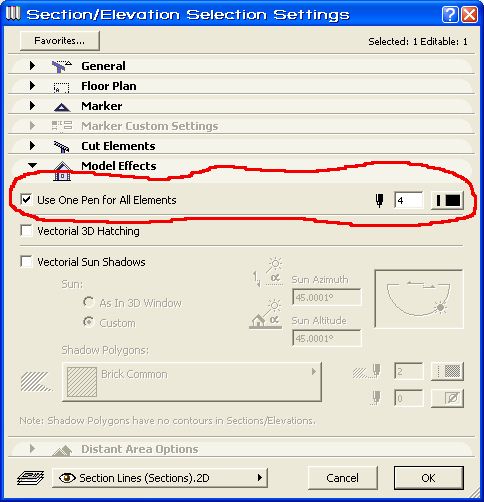

Click on the image to see.

Cheers,
Link.
One _Pen.jpg

Djordje
Ace
Richard wrote:
Had this problem, too. Was fixed by going to Options>Materials>3D Hatching and changing the Element Pen for the Siding material. HTH
Yes, this is the right answer; by default, all the 3D hatching pens are 1 (?!?!?) - and you should go material by material and change it to the pen of your choice, OR the object pen.
Djordje



ArchiCAD since 4.55 ... 1995
HP Omen

rgarand
Booster
Thanks!

I think it was a combination the first 2 posts. It looks great now!
This list is a must for the beginner... IMHO
Robert J. Garand
Dale Gardon Design
ArchiCAD USA 26-Build 4022 USA FULL
Windows 10 Prof (64 bit)
Intel i9-10920X CPU 3.50 GHz (128 GB RAM)
NVIDIA Quadro RTX 5000
