Walls cut Beams and Columns

fowebe
Contributor

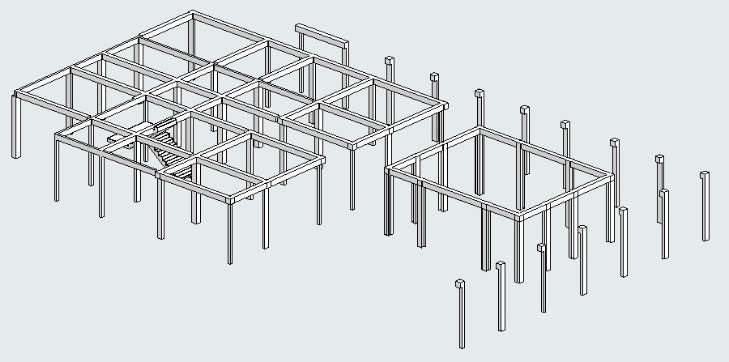

Hello! I'm trying to make an Isometric view of my Structurals but it seems that the walls cut off parts from the columns and beams. (The walls layer is just hidden.) How do I show the whole column/beam without deleting anything?

Thank you very much!

Phoebe

_________________

Phoebe Lim / Architecture Student



AC23 • Windows 10 3200MHz 8-core | 16 gb RAM •
2 REPLIES 2

David Maudlin
Virtuoso
fowebe:

For the Isometric View, create a new Layer Combination where the Wall layer has a different Intersection Group Number than the Beams and Columns layers. In the Help files see: Home > Configuration > Attributes > Layers > Use Layers to Prevent Intersections.

You should add a Signature to your Profile (click the Profile button near the top of this page) with your ArchiCAD version and operating system (see mine for an example) for more accurate help in this forum.

David
David Maudlin / Architect

www.davidmaudlin.com

Digital Architecture

AC26 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.15.7

fowebe
Contributor
Thank you so much, David Maudlin!!!
Will take note of that, thank you!
Phoebe

_________________

Phoebe Lim / Architecture Student



AC23 • Windows 10 3200MHz 8-core | 16 gb RAM •
