Wavy lines in 3D perspective when saved and placed on layout.

Hannah77
Participant

Hi All,  I have been trying to figure out how to not get wavey lines when I place a 3D view on my layout.  It looks great in my 3D window, everything is straight & can see all the details.  I have watched videos and have taken all the advice.  I have changed my Window size to be 4k up 6K, also changed increased the DPI. I still think I am missing something or is AC not capable?  This was not as bad in version 24 & 25.



See images below (sorry not the greatest examples but I think you can see what I am saying)

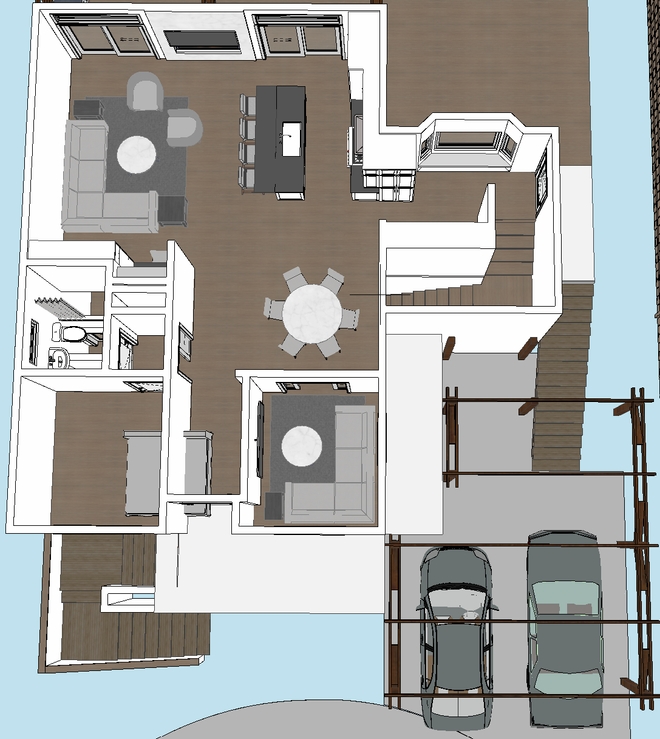

View from 3D window

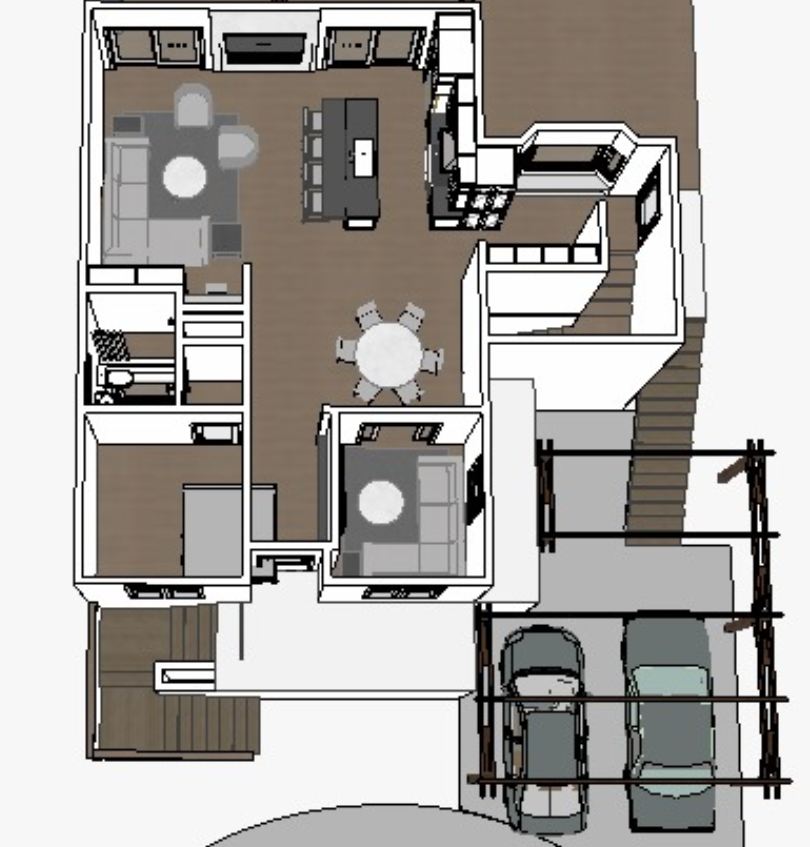

 Saved view, placed on layout




   Thanks, Hannah

2 REPLIES 2
Lingwisyer
Guru

Your saved view is not using your "4-6k". How are you saving your view? 4k should be like 300 dpi on A4?

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660

I right click on the 3D view and click on "Save View and Place on Layout".  I also get a little better result if I "Save View" under View Map and then place on Layout.
