Yet another wall clean up issue

Paul King
Advisor

I have inherited an ArchiCAD 26 model in which composite walls will just not clean up based on materials priority.  I am sure I am missing something obvious, but cannot seem to put my finger on it.

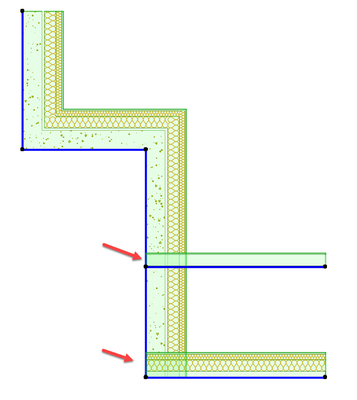

Per the screenshot below, a timber stud wall simply passes over a wall containing concrete without the materials interacting in any way, even though the wall reference lines touch.



The concrete material has a higher materials priority than the intersecting timber material, while the plaster board linings for each composite wall all have the same priority - so based on that I would expect the stud wall timber to be cut short by the concrete material , and the plaster board to heal either side - but that is not what happens.



The walls are all on the same story, and have the same 'new' renovation status.

Under Project Preferences/Legacy, walls clean up is not set to 'Legacy' mode (I tried it, and it does not help)






What am I missing here?



I have attached a module containing the walls, in case that helps.
