Modeling
About Archicad's design tools, element connections, modeling concepts, etc.

Forum Posts

trim wall to underside of shell - not top of shell

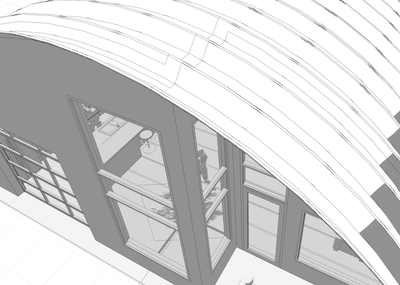

it appears that the walls are being trimmed to the top of this shell instead of to the underside of the shell. this is a quonset hut and the material thickness is very thin (~1/16") and is modeled with thickness. how can i get the walls to trim to th...

Screen Shot 2017-09-08 at 10.17.52 AM.png
Anonymous by Not applicable
  • 1325 Views
  • 2 replies
  • 0 likes

Building material

I am working on two different files . But I am facing issues with building material with one of them . I cannot put texture and color on elevation on one of them . I am uploading photos of both , please compare and help me find a way out. TIA

Anonymous by Not applicable
  • 859 Views
  • 1 replies
  • 0 likes

Working in high inclined plot

Hello! I work in a plot that is inclined and i have many buildings in the plot. The buildings (let's say) are the same but since the plot is inclined, each building is on a different elevation. I want to find a way on each storey (for example on the ...

Anonymous by Not applicable
  • 810 Views
  • 1 replies
  • 0 likes

ARCHICAD 21 - rail edit & 3D contours issue

Hi I'm not sure if this is a bug, but if it is it is fairly minor. I've been using the rail tool in ARCHICAD 21 is which is really good. However, every time I go into the "edit" mode, then go back out, the contours of my 3D view disappear, even when ...

Anonymous by Not applicable
  • 1718 Views
  • 3 replies
  • 0 likes

Resizing fly-out navigator

That's been grinding my gears for so long... Why on earth did GS made it so small? Anybody has an idea how to make it bigger?

runxel by Ace
  • 734 Views
  • 0 replies
  • 0 likes

Wall conection to roof problem

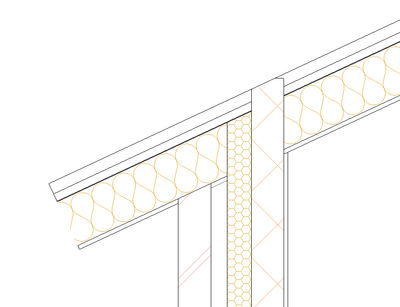

Can someone give me some guidance on connecting a wall to roof, I have used the trim elements to roof and the blockwork does not trim please see attached image Any help appriciated

roof problem.png
Anonymous by Not applicable
  • 2174 Views
  • 5 replies
  • 0 likes

Slab edge differing surfaces

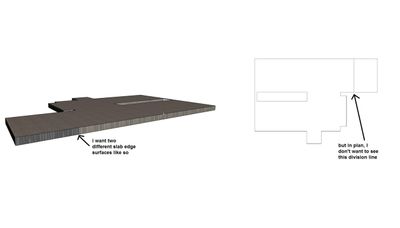

I have a project where I want two surfaces along the same slab edge. The way I've achieved this is building two slabs with the same thickness and elevation. However, In plan, it means I am left with a division line. Any tips to avoid this? I'm curren...

slab (Medium).jpg
Anonymous by Not applicable
  • 2141 Views
  • 6 replies
  • 0 likes

Wall corners

My wall consists of two different materials . but the junction of the two wals does not have a clear border . one of them has a 45 degree corner . it is making the drafting wrong . any solution ? I have attached the photo .

Anonymous by Not applicable
  • 1551 Views
  • 3 replies
  • 0 likes

transfering Project Preferences

Could someone please tell me why it is still not possible to transfer the project preferences - namely dimension and unit prefs - from one file to another? I've never seen how these are specific to a project. They should be handled no differently tha...

Anonymous by Not applicable
  • 831 Views
  • 1 replies
  • 0 likes

SEO palette not showing

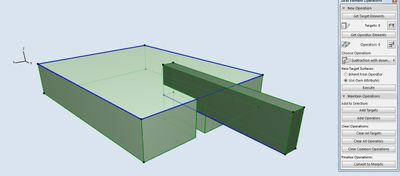

Hi, Please see attached screenshot. Clearly there is a solid element operations happening that I have performed, where the wall is doing an Subtraction with downward extrusion to the slab. However, for some reason that little blue box is not showing,...

Anonymous by Not applicable
  • 987 Views
  • 2 replies
  • 0 likes
