Slab Angle Representation 2D Problem

Hi all I have some slab representation problems, wen i add angle to the slab edge, the 2D representation is incorrect but the 3D its good ! The attached image show the correct 2D with the manual red lines. Do you any solution to fix this representati...

Anonymous by Not applicable
  • 1239 Views
  • 3 replies
  • 0 likes

Can't click surfaces to select them.

I have previously been able to select surfaces of for example fills, text objects or morphs by clicking anywhere on them. Now I have to find a corner point to be able to select them. This also means I can't double click text to edit it. Is there a se...

Anonymous by Not applicable
  • 1817 Views
  • 2 replies
  • 0 likes

AC21 - Layer Naming? Double "hubboy"...

guys...@GS.... I just opened up the "Commercial.tpl" file for AC21....and noticed....the layering naming convention....you guys are killin' me. A-WALL-EXTR A-WALL-INTR A-CLNG A-COLS........ WHAT happened to the layering convention from AC20? seriousl...

rob2218 by Booster
  • 2003 Views
  • 6 replies
  • 0 likes

Fill origin for Complex Profile Wall

Sorry for peppering the forum with queries but they're coming thick and fast. As far as I'm aware, are you not able to move/align the fill/hatch on an elevation in Archicad like you can in Revit? If not, how do you control the origin of the fill plea...

Anonymous by Not applicable
  • 3943 Views
  • 11 replies
  • 0 likes

Controlling the stretch of Complex Profile Walls

I've created a Complex Profile Wall but I'd like to edit it so that the top section (cladding) stretches but the bottom section stays at a fixed height, in the case 1650mm. Can I do this and if so how do I do it please? I've tried a quick Google but ...

Anonymous by Not applicable
  • 1756 Views
  • 4 replies
  • 0 likes

AC 21 polyline bug (adjust command)

Is is just me or the polylines in AC 21 do not work properly with the "adjust" command? They will extend/adjust only if you want to make them shorter, if you want to extend them to a point further down the line they just stand there, looking, waiting...

mIRage66 by Newcomer
  • 5088 Views
  • 13 replies
  • 0 likes

Missing wall section line when slab touches it

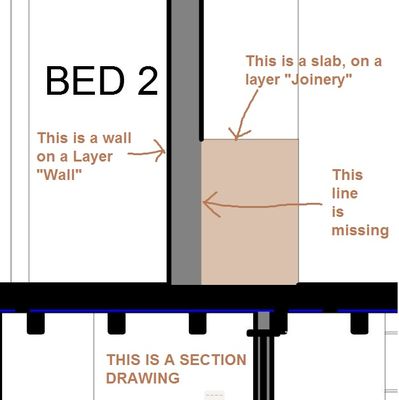

Hi all, I feel like the solution to this is so easy but I can't figure it out. Please see attached. I have built a half height joinery piece made out of the slab tool and it backs up against the wall. Where the two objects touch, the section cut line...

Anonymous by Not applicable
  • 4980 Views
  • 12 replies
  • 0 likes

Graphic override - layer combination problem

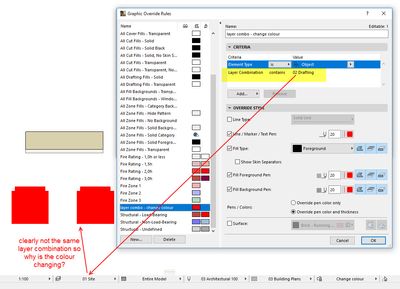

I would just like to check if I am doing something wrong here before I report this as a bug. I am trying to set up a rule that changes the pen colour of an object when a certain layer combination is turned on. But no matter what layer combination I h...


AC21 Railings....hubboy...

so, we have no video tutorials of exactly how to do the AC21 railings. fine...so then how/where are the railings that I can associate to the stairs that have the "wire rails"? How can I adjust the railings to contains those "wire rails"? (see attache...

rob2218 by Booster
  • 10095 Views
  • 40 replies
  • 0 likes

Stair Landings

I've come to the conclusion that I'll have to model the stair landings separately. Attached is a typical US pre-engineered metal stair with concrete fill treads and landing. I created a landing "tread" profile, including a Horizontal Stretch Zone. Al...
