replacing 3d mesh lines with beams?

Anonymous
Not applicable
Hi guys.I'm using archicad for a while now but i still can't control the 3d organic chapter so i'm tryng to evolve.
i just found these 2 examples online and i've been grinding my teeth for a while cause i can't find the correct workflow .

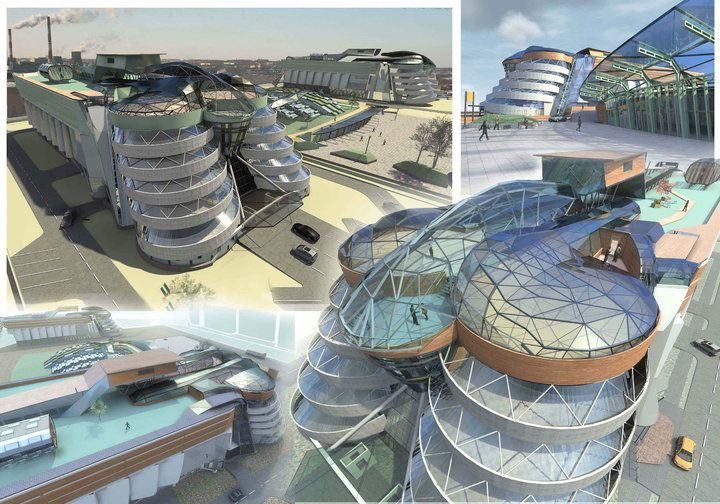

nr 1. Regarding the glass shells, the top one must be a mesh, what i cannot understand is how he got the frame thickness on the dividing panel lines (top dome)- is there a trick to turn mesh lines into beams or custom profiles that follow 3d slopes ?

nr 2. what's the workflow in creating these dome shaped-strutted glaspanes?
glass: shell, mesh or SEO?
struts: again, how do you place those profiles so that they follow inclination
p.s. i can see that the 2 components are overlayed "by hand" due to the irregular clipping (glass curved, beam straight)

nr 3. what's the best technique in creating windows like shown in this example?
i went with the "complex profiles beams + SEO" cutting technique but i find it too time consuming regarding that you would have 40 different window-shapes = 40 diff profiles that you have to customize, difficult to modify later.
...including the black glass.

Sorry fr the long post. Thanks

p.s. could not upload 2 pics so i linked the album

Pics 2 + 3
imgur.com/a/IUTYe

3 REPLIES 3
Anonymous
Not applicable
No takers for these questions? :s
Eduardo Rolon
Moderator
I wrote this some time ago, it might help.

http://archicad-talk.graphisoft.com/viewtopic.php?t=43051&start=0
Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Anonymous
Not applicable
Thank you so much.
I owe you a beer Sir!
