Doors that are part of the Curtain Wall System are not showing in the door schedule

Gisele
Enthusiast

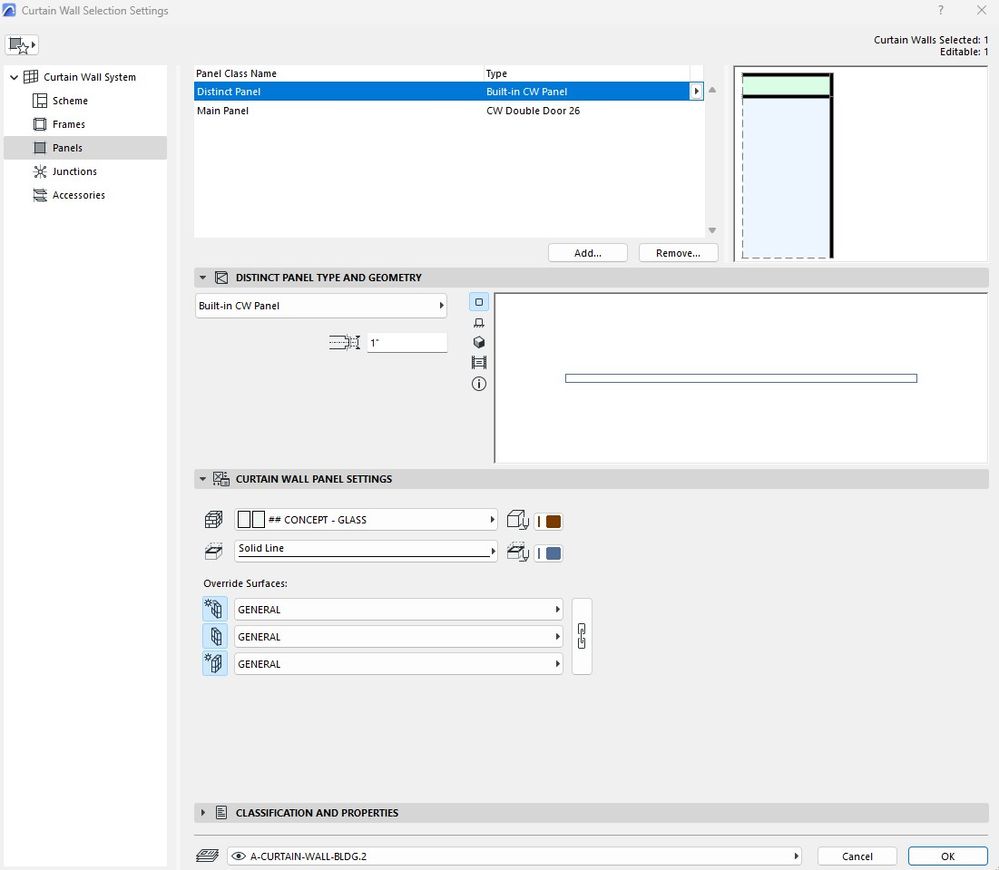

The panel of a curtain wall system has a CW Double Door type; (see attached screenshots). How to add this door type to the door schedule?

AC 26 - 5002 USA FULL
Win11 Pro | 12th Gen Intel (R) Core (TM) i7-12700F | 2.1 GHz | 16GB | 64-bit x 64-based processor>
3 ACCEPTED SOLUTIONS
3 REPLIES 3

Solution
BrunoH
Expert

Hi,

add a first line to your schedule criteria "Element type is panel OR"

ArchiCad 3.43 to 26
MacOS Monterey

Solution
Gisele
Enthusiast

Thank you, Bruno.

AC 26 - 5002 USA FULL
Win11 Pro | 12th Gen Intel (R) Core (TM) i7-12700F | 2.1 GHz | 16GB | 64-bit x 64-based processor>

Solution

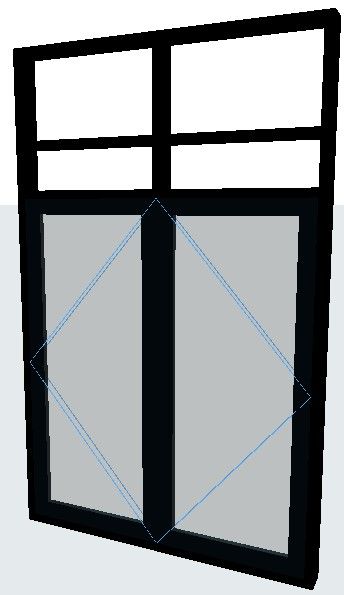

It's because unlike doors placed in walls withe the door tool it's a 3D projection not a symbolic one.

If you want the door panel open set the 3D opening angle options to 90°.

If you want to see the opening lines you'll have to draw them manually.

Select the schedule cell then clic the annotate button and draw the lines

ArchiCad 3.43 to 26
MacOS Monterey
