composite walls and visible layers

Anonymous
Not applicable
I have a composite wall whit several fills (ex. plaster + common brick + plaster) and I want to know if it is possible to ( with a determined layer combination or other way) make visible only the common brick. Thats important if you want to make a layout of the structure and the walls without the finishing materials.

thank you for your help,
luis
7 REPLIES 7
You can do this via Pen Sets -- search the forum, it's been discussed before.
MacBook Pro Apple M2 Max, 96 GB of RAM
AC27 US (5003) on Mac OS Ventura 13.6.2
Started on AC4.0 in 91/92/93; full-time user since AC8.1 in 2004
Anonymous
Not applicable
luis wrote:
I have a composite wall whit several fills (ex. plaster + common brick + plaster) and I want to know if it is possible to ( with a determined layer combination or other way) make visible only the common brick. Thats important if you want to make a layout of the structure and the walls without the finishing materials.

thank you for your help,
luis
1.Options >Element Attributes > Composites > Brick plastered both sides
Anonymous
Not applicable
2.
Anonymous
Not applicable
3.Walls selection settings
Anonymous
Not applicable

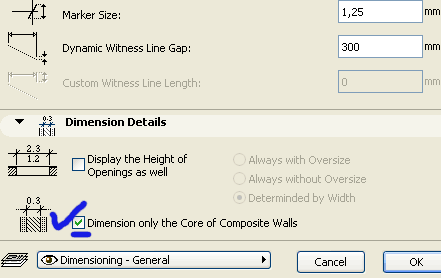

4.Dimension default settings.
Karl Ottenstein
Moderator
Actually, Beart, while your method will will work - that checkbox cannot be memorized with a view. Thus, it is not possible to automatically have certain views (drawings) appear with the veneer and others without in a normal publishing workflow.

Laura's answer is the current best practice: using cutom pen sets, in which one pen set displays the veneers and another attempts to hide them which white pens/fills. These pen sets are memorized with views.

Cheers,
Karl
One of the forum moderators
AC 27 USA and earlier   •   macOS Ventura 13.6.7, MacBook Pro M2 Max 12CPU/30GPU cores, 32GB
Anonymous
Not applicable
It was just that, if you want to make the component of plaster is invisible in Composite Structures - Brick plastered both sides … The layer plasters on draws usually isn’t appear. I’m, do it, that the count of area’s on plan were true.
I don't mind your version.
using custom pen sets, in which one pen set displays the veneers and another attempts to hide them which white pens/fills. These pen sets are memorized with views.
, but it is incorrect , of my mind.
I think that there is true version (see attachment file). But there are some problems in doors’ and windows’ installing.
