Curved wall not joining at intersection

Scott Bulmer · ‎2005-10-12

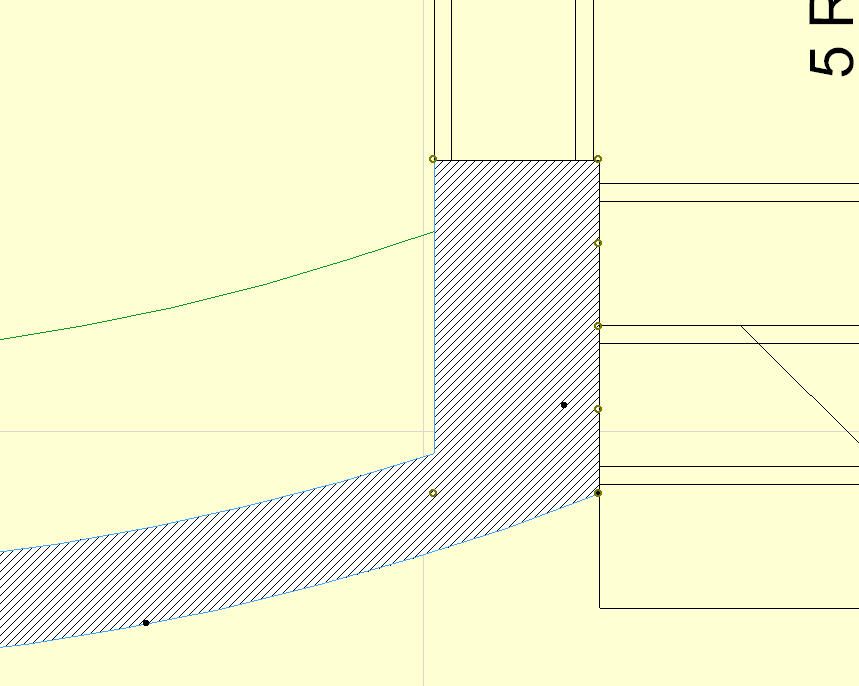

I searched for this issue without luck. In plan view, a curved wall properly intersects and joins another wall. The other wall has been trimmed to roof. When projected, the walls do not join (however they will join in 3d if the second wall is not trimmed to roof). Is this a known issue or am I messed up? Thanks.

AC27 v. 4060 w/ MEP, Cadimage, Twinmotion 2023.2.2 using AC from AC6.0, 2021 MacPro M1 chip, Adobe CC. Used AC on both platforms.

Scott Bulmer · ‎2005-10-12

Part 2 of 2.

AC27 v. 4060 w/ MEP, Cadimage, Twinmotion 2023.2.2 using AC from AC6.0, 2021 MacPro M1 chip, Adobe CC. Used AC on both platforms.

Scott Bulmer · ‎2005-10-18

The problem revealed itself. We inadvertantly had an extra roof touching the curving wall causing the intersection to misbehave. I'm sorry for any inconvenience.
